CST-R85
Passive-type Color Sensor
Precisely Discriminates
Fine Color Tones or Light Intensities
- Discriminates visually-hard-to-identify differences in LED color ratio down to 0.01%
- Supports pulse lighting LED light sources
- Output is changeable between NPN/PNP
- Teaching via remote operation is available
- Download
-
-
CST-R85 Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
CST-R85
|
12-24VDC | RGB color composition |
NPN
PNP |
Single color teaching | External | Attached cable |

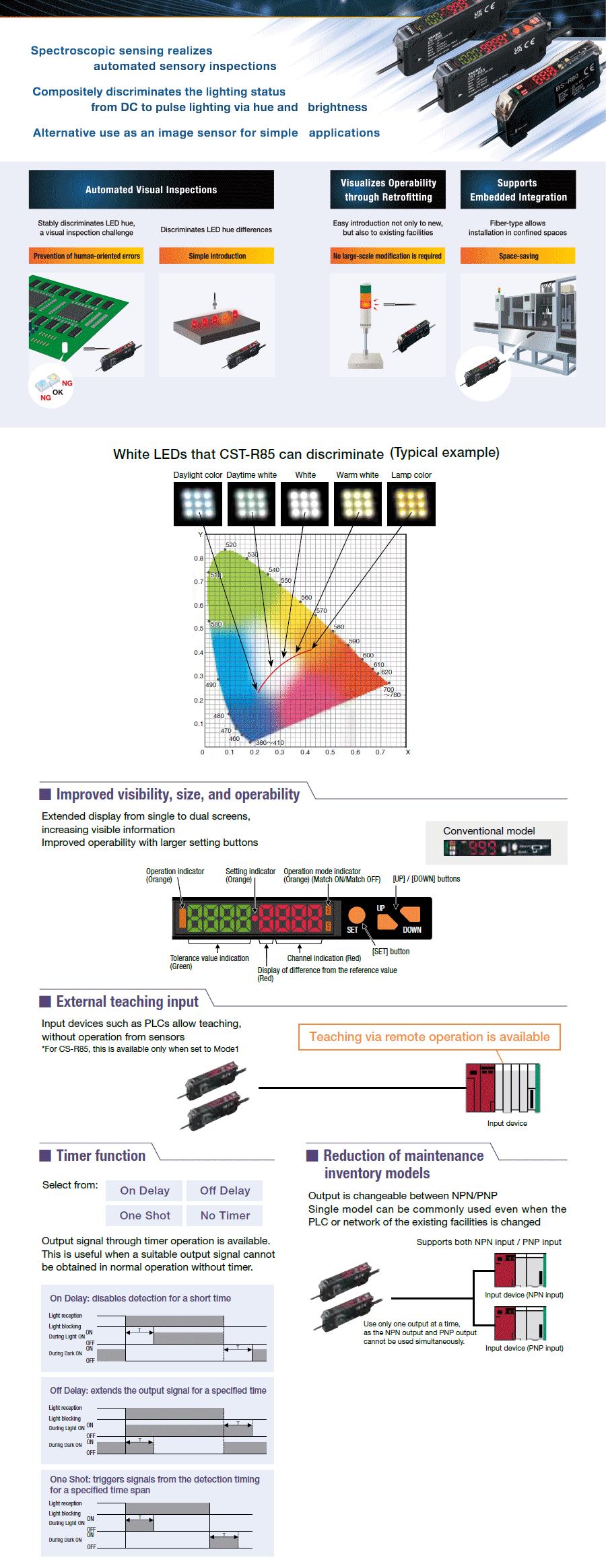

Feature
Feature
Dimension

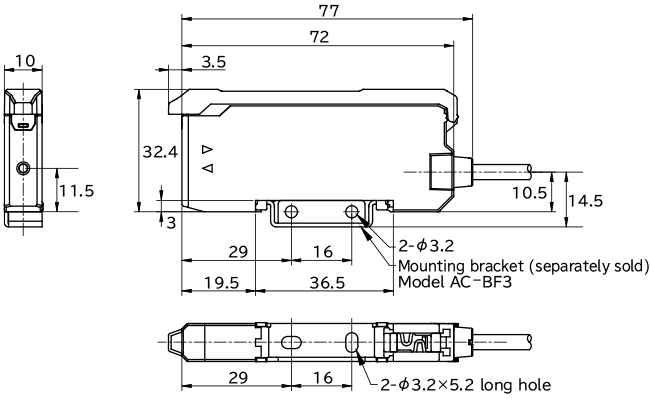

CST-R85 (with the mounting bracket attached)
Circuit

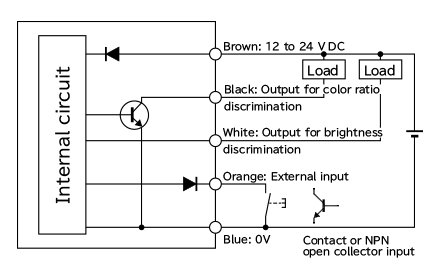

NPN Output

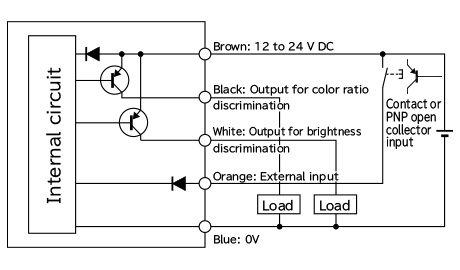

PNP Output
Electronic Component Mounting
Mixing different lighting types,lighting check
Example of using both CS-R85 and CST-R85 for lighting check in the mixtures of different product types, as well as for lighting characteristics assessment.
Option
Fiber optic cable
| FT105BC-CS
|
|
Light reception adjustment unit
| CS-ND |
|
