CS-R85
Passive-type Color Sensor
R/G/B Spectroscopy for Color Ratio Discrimination
- Ideal for LED color discrimination
- Supports pulse lighting LED light sources
- Output is changeable between NPN/PNP
- Teaching via remote operation is available
- Download
-
-
CS-R85 Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
CS-R85
|
RGB color composition |
NPN
PNP |
Single color teaching
3 color teaching |
External | Attached cable |

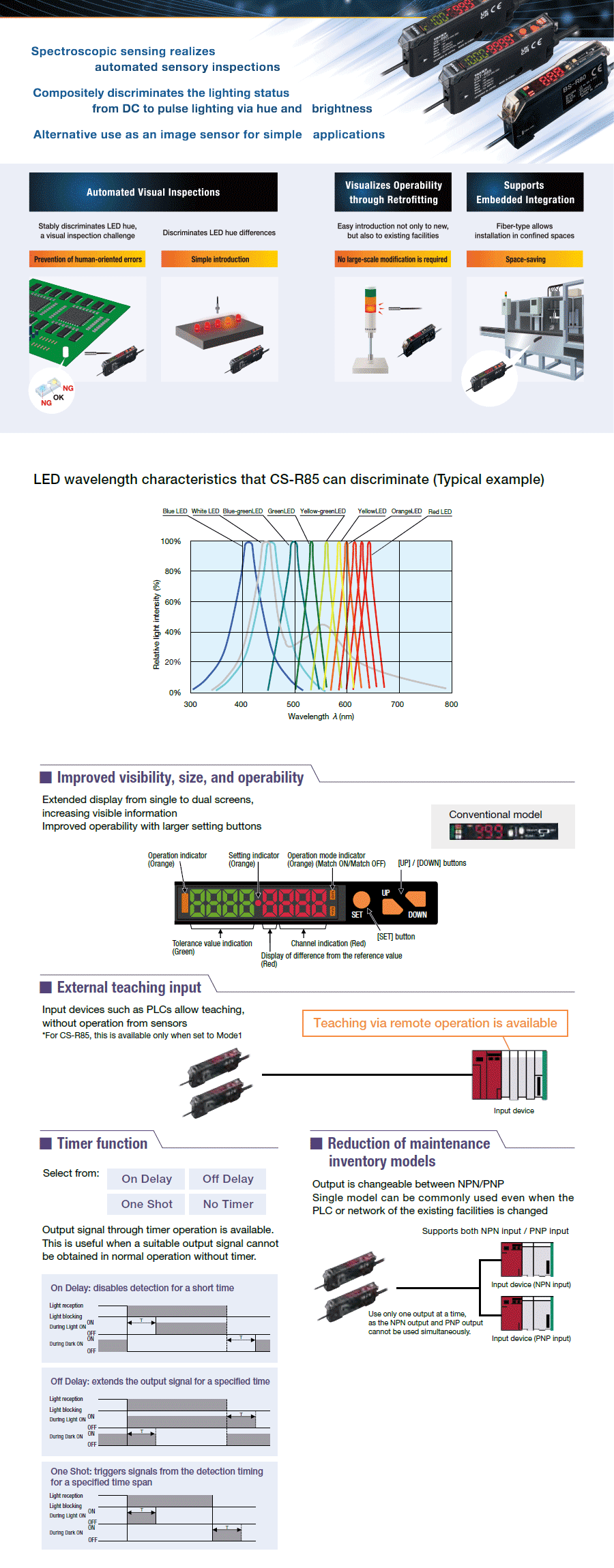

Feature
Feature
Dimension

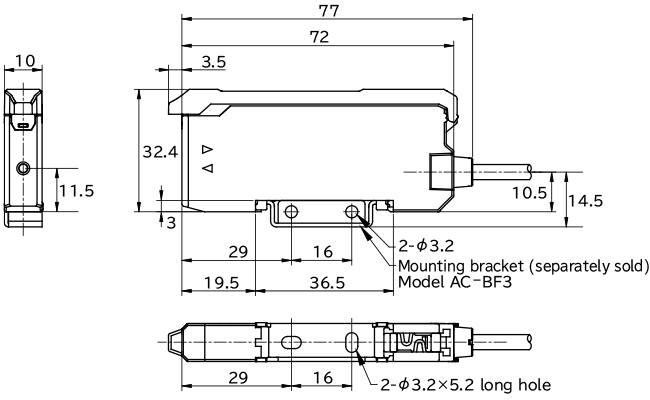

CS-R85 (with the mounting bracket attached)
Circuit

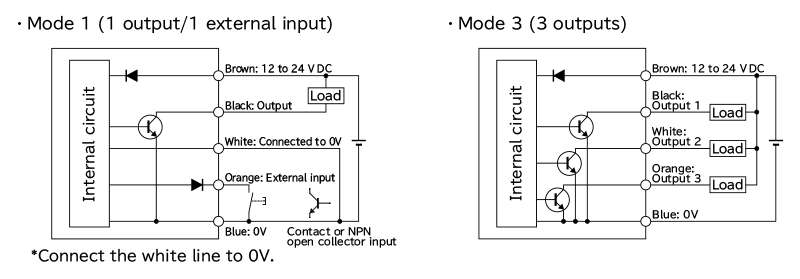

NPN Output

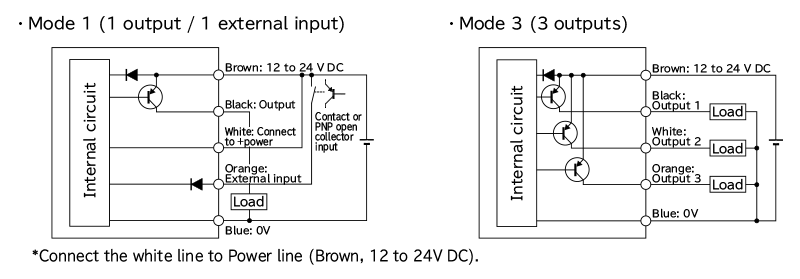

PNP Output
Electronic Component Mounting
Color check of lighting LEDs
Discriminates lighting LED colors in the production processes for LED blinkers, tail lamps, and stop lamps.
Consumer electronics/OA
LED lighting confirmation
LED lighting confirmation
Electronic Component Mounting
Mixing different lighting types,lighting check

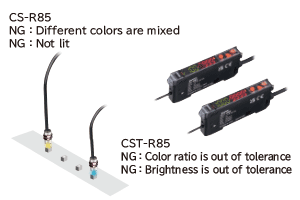

Example of using both CS-R85 and CST-R85 for lighting check in the mixtures of different product types, as well as for lighting characteristics assessment.
