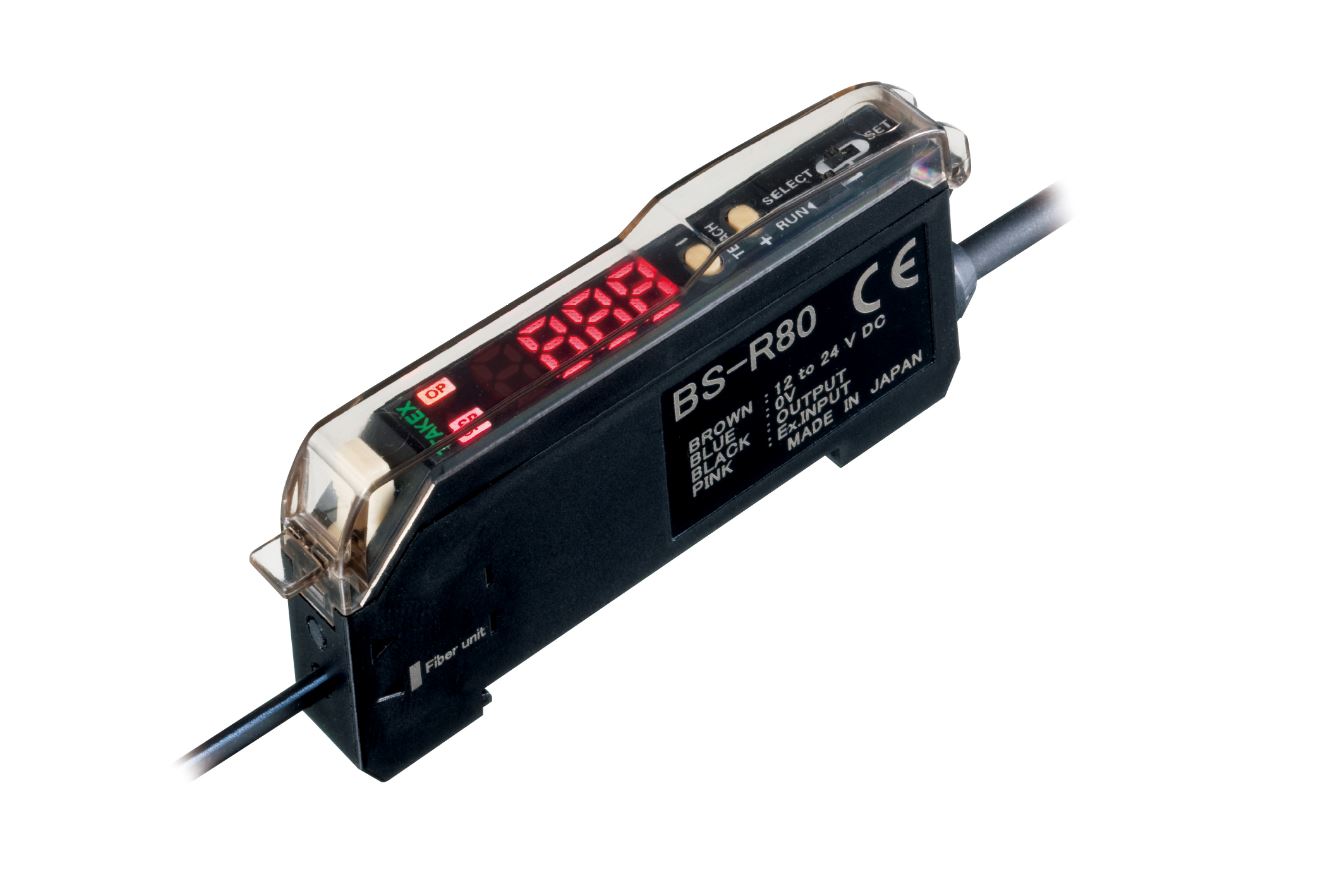

BS-R80
Lighting Confirmation Sensor
- Quick Installation! Easy Setup! Light Source ON/OFF Promotes automation of visual inspections.

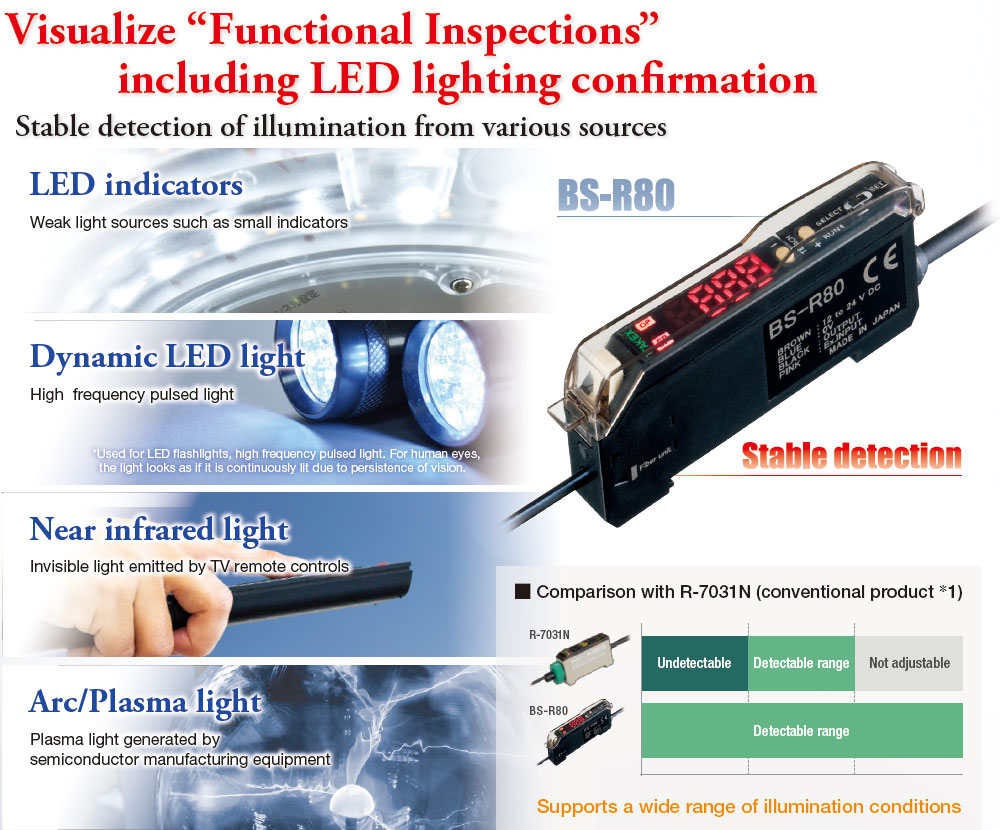

- Stable detection of illumination from various sources
- Stable detection even from weak light sources
- Stable detection even with high-speed inspections
- Automates visual inspections
- Easily introduced into the existing system
- Standard・Official Approval
-
- Download
-
-
BS-R80 Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
BS-R80
|
Identifying brightness |
NPN
PNP |
Dark on
Light on |
Attached cable |
Feature
Quick Installation! Easy Setup! Light Source ON/OFF Promotes automation of visual inspections.
Features of BS-R80
- Stable detection even from weak light sources
- The slightest contrast can be detected
A wide dynamic range covering bright to low level light sources (refer to *1)
- “Visualizes” the setting values (“Good Product” range)
- Large, easy-to-read indicator
- Stable detection even with high-speed inspections
- 1ms response time
- Fiber-type sensor enables flexible installation in any space
- Pin-point detection
Fibers selectable according to applications

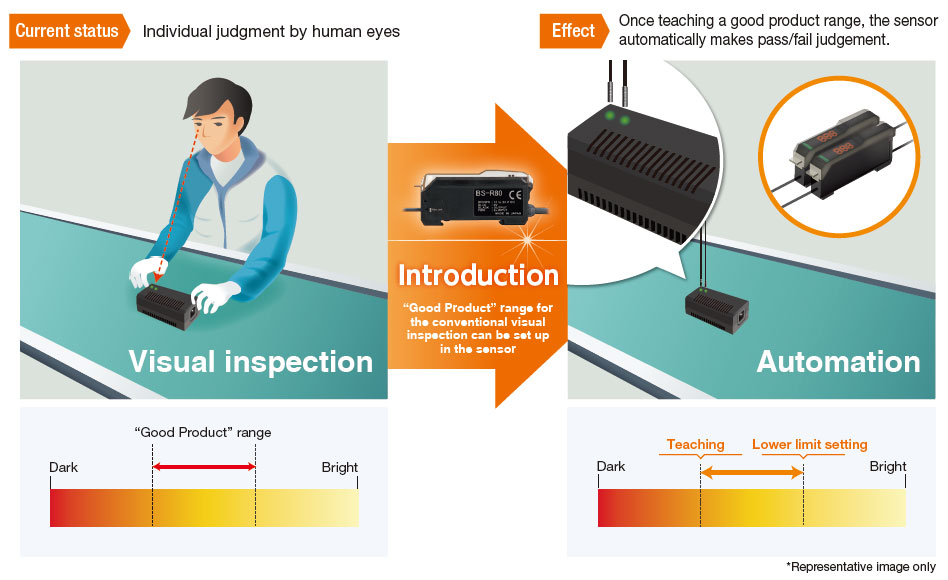

Automates visual inspections
Easy Introduction
Cost effective compared to image sensors for confirming that multiple LEDs are lit. Also easy to setup and install.
Case Studies
Dimension

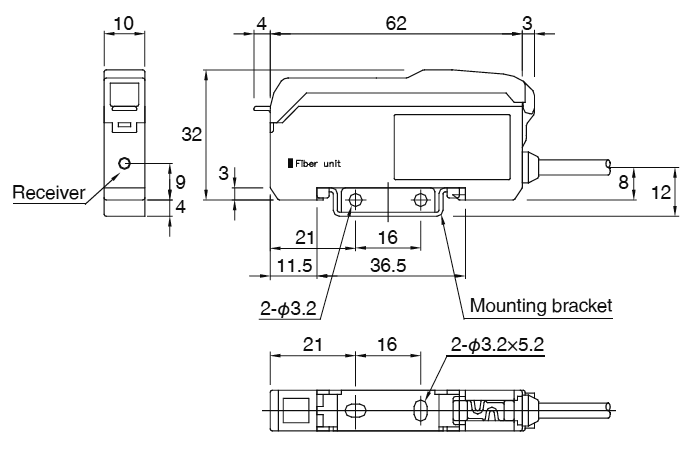

BS-R80 (in mm)
Circuit

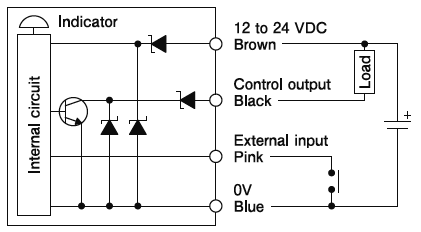

NPN output mode
Control output (NPN)
External input (teaching)

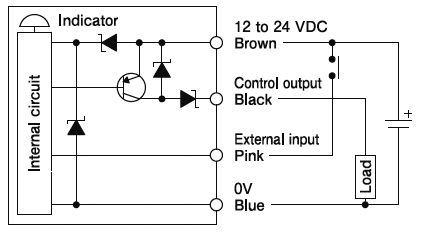

PNP output mode
Control output (PNP)
External input (teaching)
* When not using the external input, connect the external input cable (pink) to 12 to 24 VDC in NPN mode and to 0V in PNP mode.
Electronic Component Mounting
Consumer electronics/OA

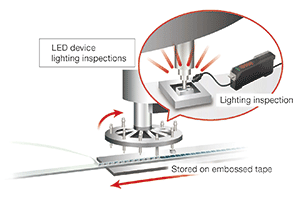

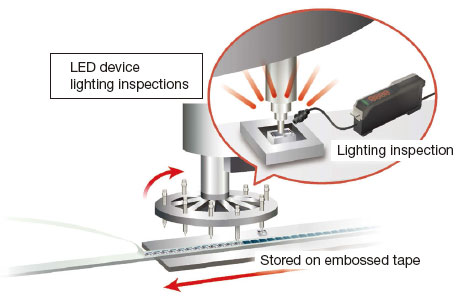

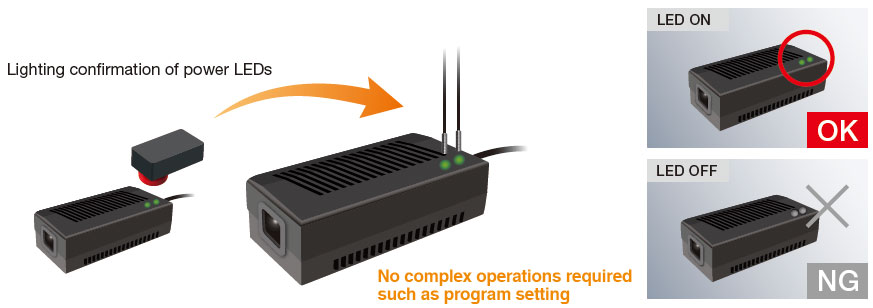

LED lighting confirmation
LED lighting confirmation
Semiconductor
Arc discharge detection in a component welding process
Arc discharge detection in a component welding process
Option
Fiber optic cable
| FT105BC-CS
|
|
