製品情報

GA-MT1R
Transparent container detection

  • Simple operation just with the press of a button
    Perform simple setup with the touch of a button for highly transparent objects with transmittance
    Optical system capable of detecting small differences in transparent objects
  • Development of reflector exclusively for transparent container detection
    Reflector designed for detecting transparent objects
  • Inverter light suppression circuit
    Prevents faulty operation with inverter fluorescent lamps
  • IP 67 water resistance allowing washing
Standard・Official Approval
  • CE Mark

GA-MT1R Lineups

Model Type Power supply Detection method Detecting distance Min (mm) Detecting distance (mm) Control output Light source Connection Use application Download
GA-MT1R
仕様を見る
Transparent objects detection 12 - 24VDC Reflective 1000.00 NPN Red LED Attached cable paper / film
food / drug
GA-MT1RPN
仕様を見る
Transparent objects detection 12 - 24VDC Reflective 1000.00 PNP Red LED Attached cable paper / film
food / drug

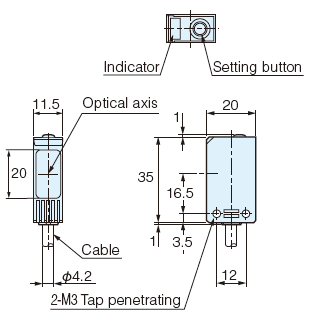

Dimension

Main unit of sensor

Circuit

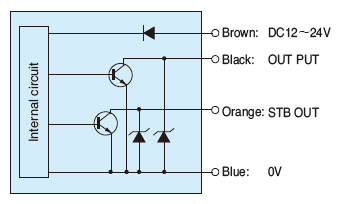

NPN output
GA-MT1R

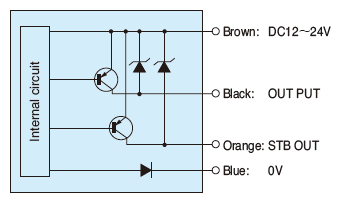

PNP output
GA-MT1RPN

Packaging/Food/Drug

Egg package detection

Egg packages detected in packaging process.

Packaging/Food/Drug

Transparent PET bottle detection

Transparent package detection sensor allowing stable detection of uneven surface PET bottles.

Option

Mounting bracket

オプション写真

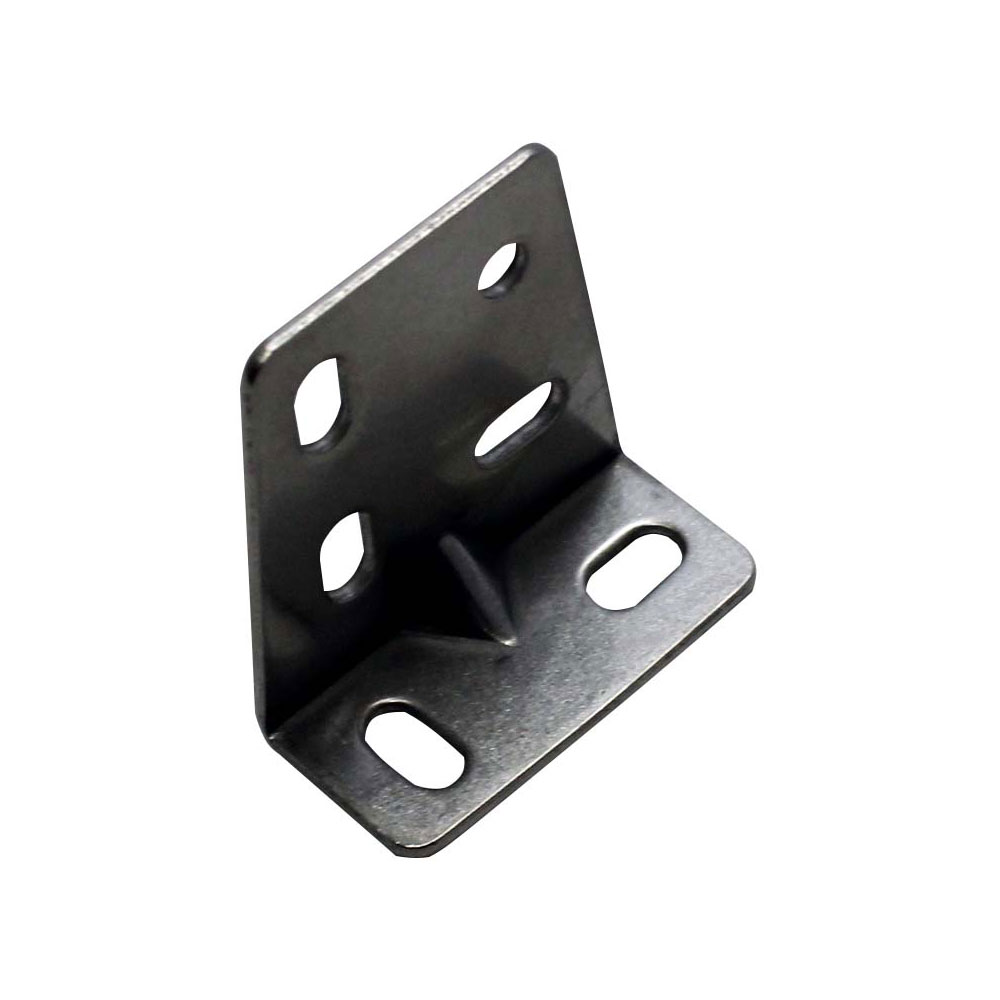

Mounting bracketGA-B1

dimLink
Materials SUS
Accessories Screw : 2
Materials SUS
オプション写真

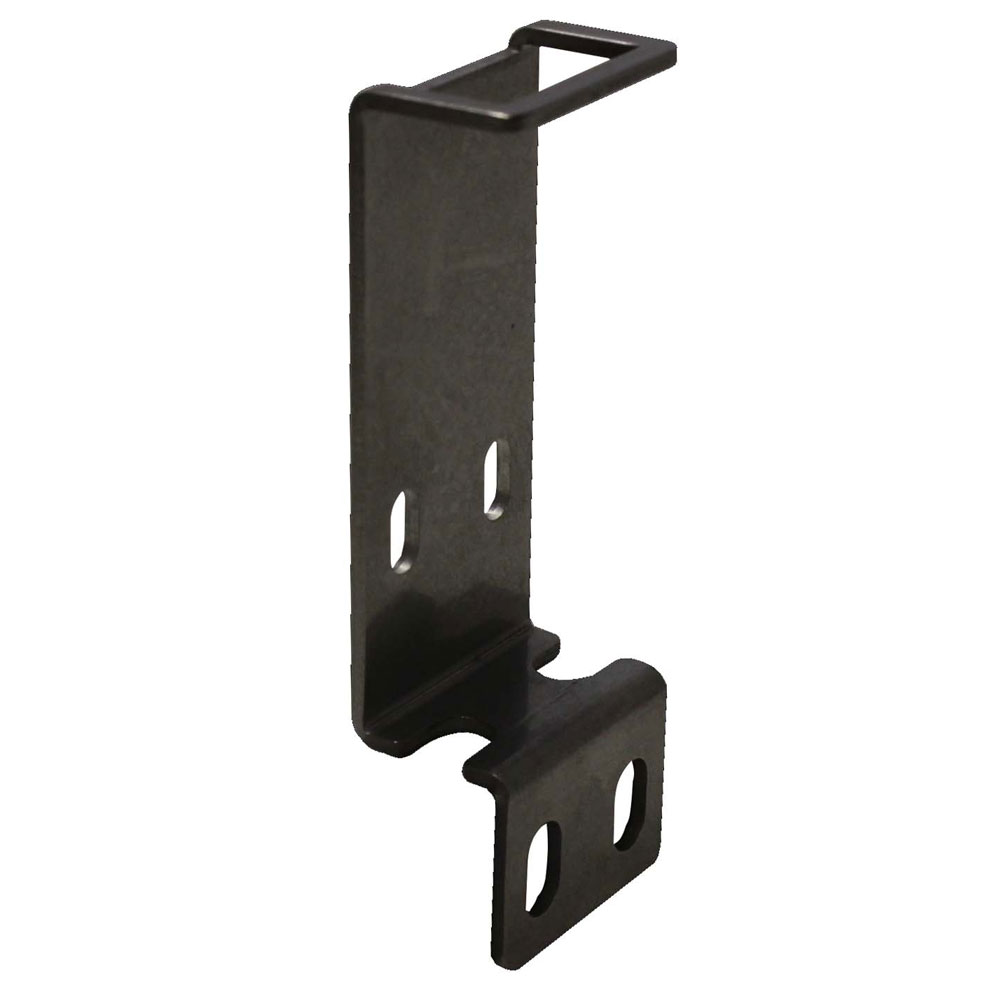

Mounting bracketGA-B2

dimLink
Materials SUS
Accessories Screw : 2
Materials SUS

Protective cover

オプション写真

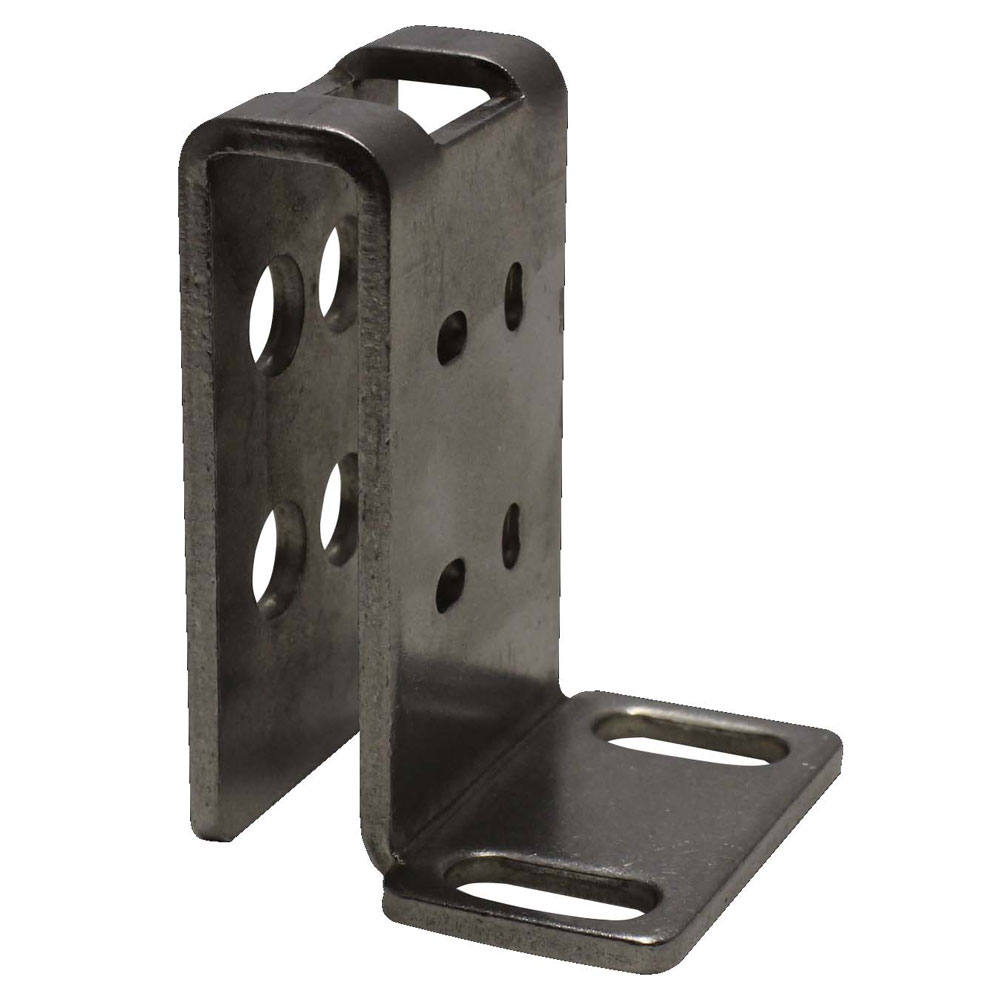

Protective coverG-MSB1

dimLink
オプション写真

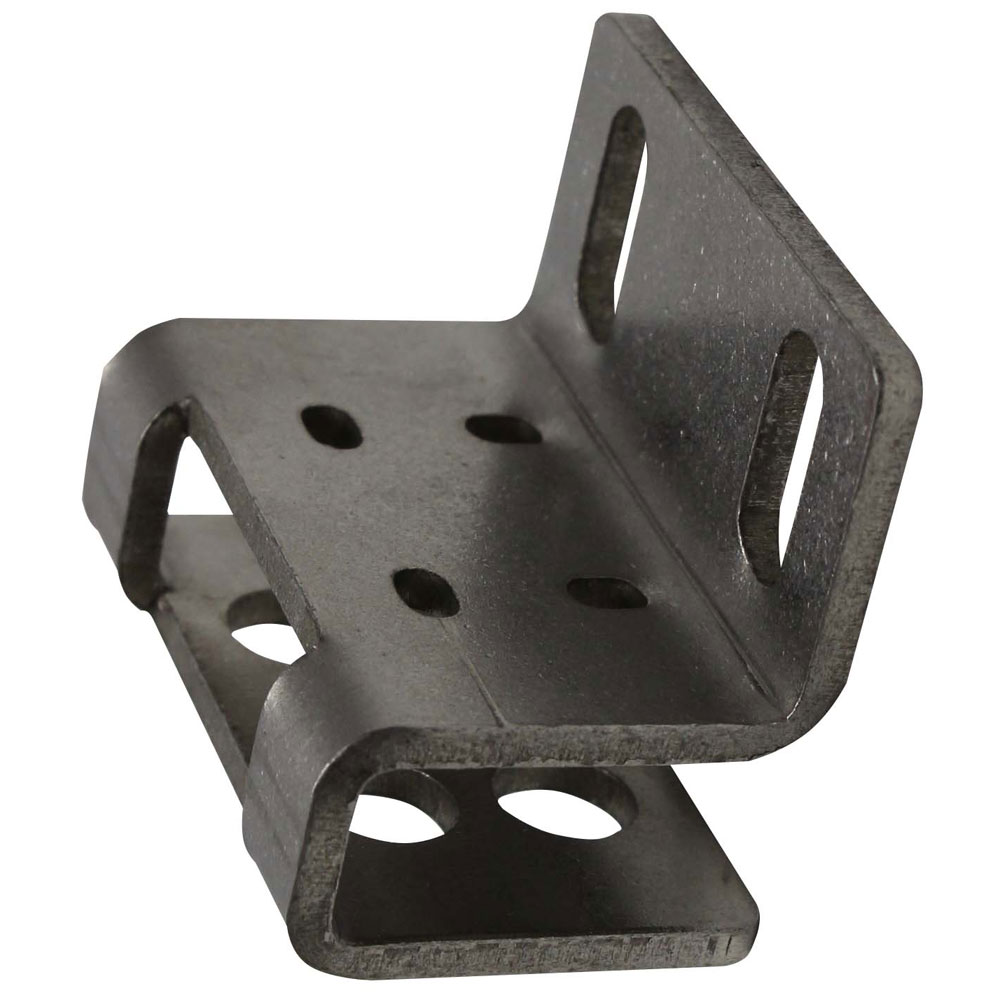

Protective coverG-MTB1

dimLink
