DX-S400/DX-S300W
Presence Detection Sensor

  • Distance-measuring presence detection sensor, which measures the distance to the floor with light and detects the presence of a car or other object
    • Car detection not affected by color or shape of cars
    • Embedded inviting lamp of large green LED (DX-S400 DX-S400L)
    • Quick response (0.2 sec or less in the passing mode)
    • No malfunction caused by air from a heater or airconditioner
    • Flexible settings possible with the mutual interference prevention function
    • Teaching with the dedicated remote control (the remote control, DX-RC, is available separately)
    • Operation mode, which is useful for maintenance of the inside of a car

DX-S400/DX-S300W Lineups

Model Type Power supply Detection method Detecting distance Min (mm) Detecting distance (mm) Control output Light source Connection Use application Download
DX-S400
仕様を見る
Car detection 12 - 24VDC Diffuse reflective 1000 4000.00 Relay Infrared LED Terminal block shop / factory
vehicles / transportation
DX-S400L
仕様を見る
Car detection 12 - 24VDC Diffuse reflective 1000 4000.00 Relay Infrared LED Terminal block shop / factory
vehicles / transportation
DX-S300W
仕様を見る
Car detection 12 - 24VDC Diffuse reflective 1000 3000.00 Relay Infrared LED Terminal block shop / factory
vehicles / transportation

Dimension

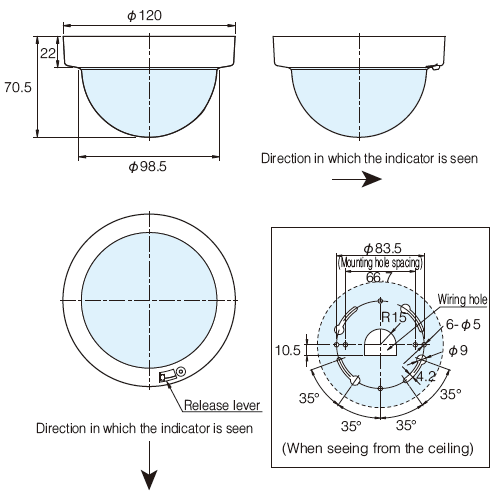

DX-S400

Dustproof sheet (Accessories)

Material : PC

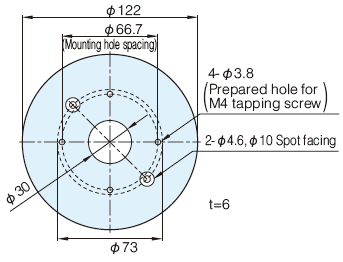

Mounting plate DX-B3 (optional)

Material: PVC

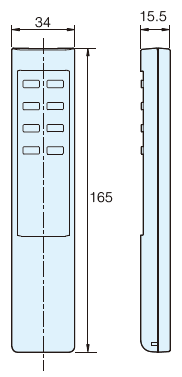

Remote control (optional)
DX-RC

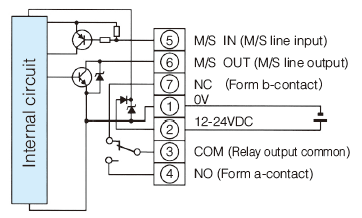

Circuit

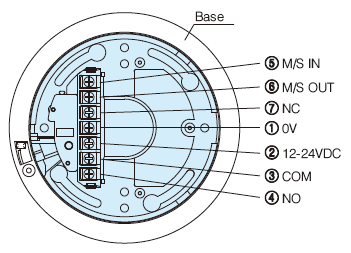

Wire as shown in the figure on the right. The tightening torque for the terminals has to be 0.6 N m max.
When extending the wiring, use cables with diameter of 0.9 mm or more, up to 120m when using 24VDC (40m when using 12VDC).

Area

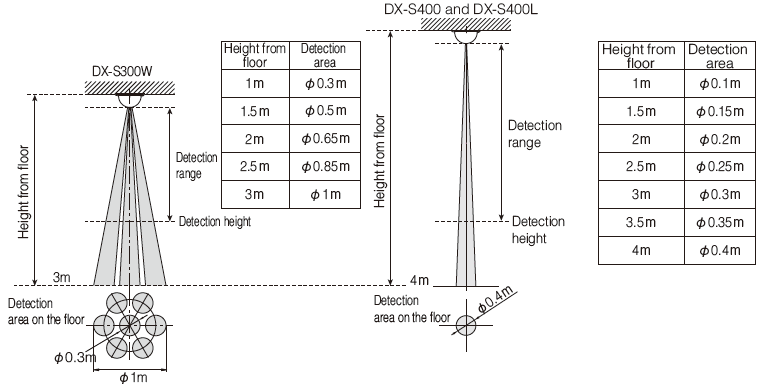

Detection area

The detection area may be different from this figure, depending on the shape of an object, what is worn by the person, approach speed, color or material of the floor, and so on.

etc.

Detection of still cars in parking lot

Can securely detect presence of a car in a parking space without being affected by color or shape of cars.

etc.

Control of height of industrial radio-controlled

Long-distance photo sensor used for detecting height of helicopter from ground.
