DX-7 Series
Phase differential distance detection
- Phase Differential Method employed
- Long distance of 7m with direct reflection method
- Long detecting distance and high resolution simultaneously achieved
Less influence of object color, etc. - Applicable to wide variety of detecting situations by teaching
Capable of point/zone sensing - Anti Interference Feature
DX-7 Series Lineups
| Model | Type | Power supply | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Control output | Light source | Connection | Use application | Download |
|---|---|---|---|---|---|---|---|---|---|---|
DX-7AH
|
Car detection | 12 - 24VDC | Diffuse reflective | 500 | 7500.00 | NPN | Infrared LED | 6 pin waterproof plastic connector connection |
shop / factory
vehicles / transportation |

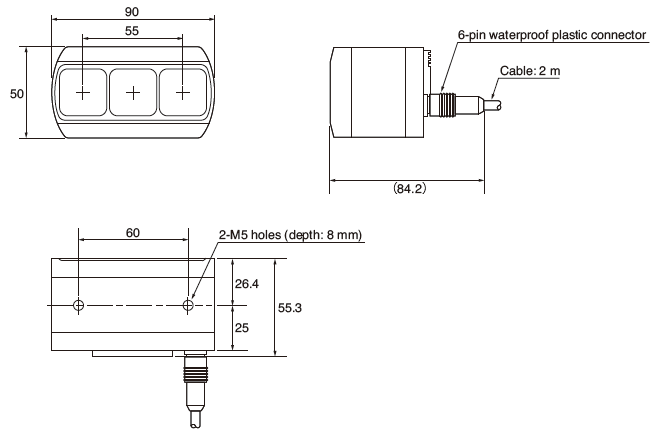

Dimension
Body

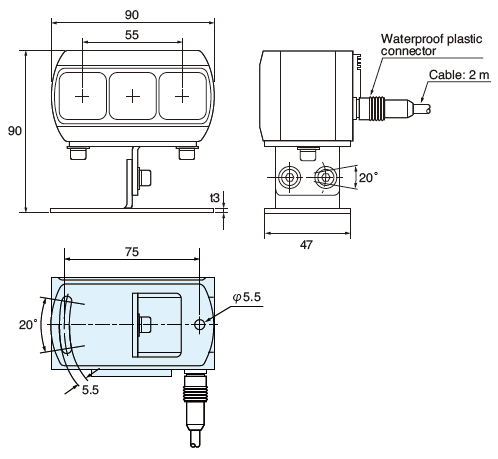

With mounting bracket DX-B1 (optional) attached
- Mounting brackets are optional.
- Accessories : Hexagon socket head cap screw: 4
- Materials : SUS

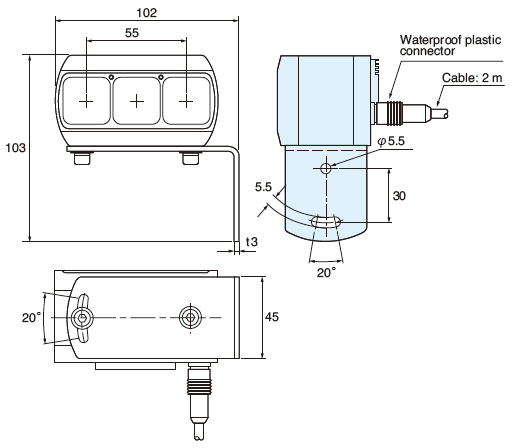

With mounting bracket DX-B2 (optional) attached
- Mounting brackets are optional.
- Accessories : Hexagon socket head cap screw: 2
- Materials : SUS

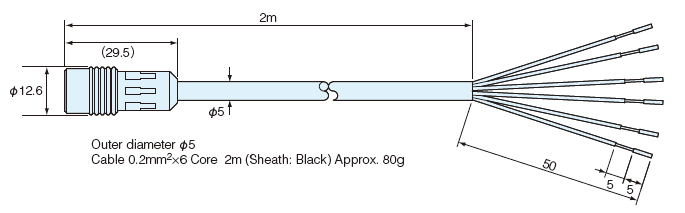

Cable with connector (accessory)
Model : FAC-D6R2

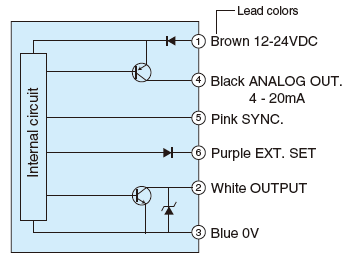

Circuit
- When not using EXT.SET line (purple), connect it with the power supply (+ V).
- For standalone use without enabling the Anti Interference, connect 5 SYNC. line (pink) with 0V line (blue).
Steel/Ceramic
Winding control
Control of large winder.\nLong detection distance allows for safe detection of large rolls.
Logistics
Checking of arrival of delivery trucks
Arrival of trucks at yard detected.
Logistics
Prevention of collision
Crain bodies directly detected without reflector to prevent the collision of overhead traveling crains and unmanned crains.
Logistics
Distance control
Used for deceleration and stopping control of high-speed unmanned carriages, etc. Analog output used for controlling distance from carriage ahead according to speed. Carriage bodies directly detected without reflector
Packaging/Food/Drug
Level control
Grain or fine particles in tank are detected. Stable detection is ensured even with materials absorbing ultrasonic wave.
etc.
Detection of person at entrance
Detection from high ceiling without spoiling the appearance.
Option
Mounting bracket
| Special mounting bracketDX-B1
|
|
||||
| Special mounting bracketDX-B2
|
|
