US-U30AN
Edge Detection Ultrasonic Sensor
- Not affected by the printed pattern on the detection object
- Not affected by stains or color on the surface of the detection object
- Position proportional analog output (1 to 5V)
- Easy installation with no controller
- Standard・Official Approval
-
US-U30AN Lineups
| Model | Type | Power supply | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Control output | Response speed (ms) | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|
US-U30AN
|
Ultrasonic | 12 - 24VDC | 30 | Analog | 60 | Attached cable |
Feature

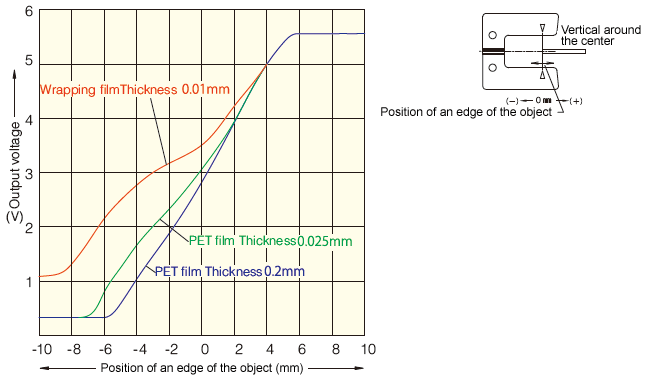

Performance Curves (Typical)
Output-position curves
*Performance varies, depending on the thickness, height or material of the object.

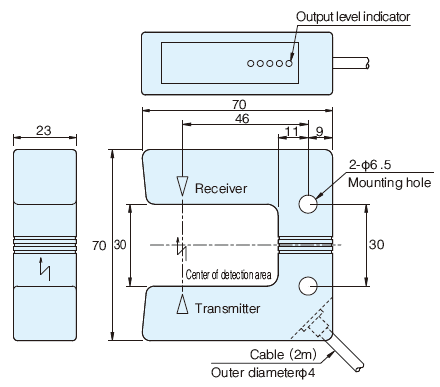

Dimension

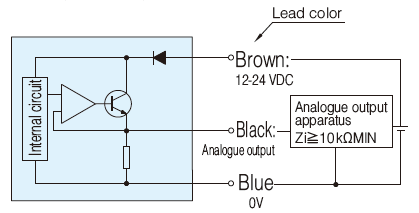

Circuit
Printing
Control of meandering of transparent films
An ultrasonic sensor can control meandering of transparent films without being affected by printing patterns, which is difficult fo an optical sensor.
Packaging/Food/Drug
Winding control of package film
Controls the film meander by an ultrasonic edge detection sensor.
Semiconductor
Drift control using an analog sensor for edge detection
Drift control using an analog sensor for edge detection
※Intended for use with the TAKEX model US-U30AN sensor
