Ultrasonic Sensor for Double sheet/Seal Detection
- Reliably detects double sheet or heated seal of plastic bags
- Embedded amplifier with analog output

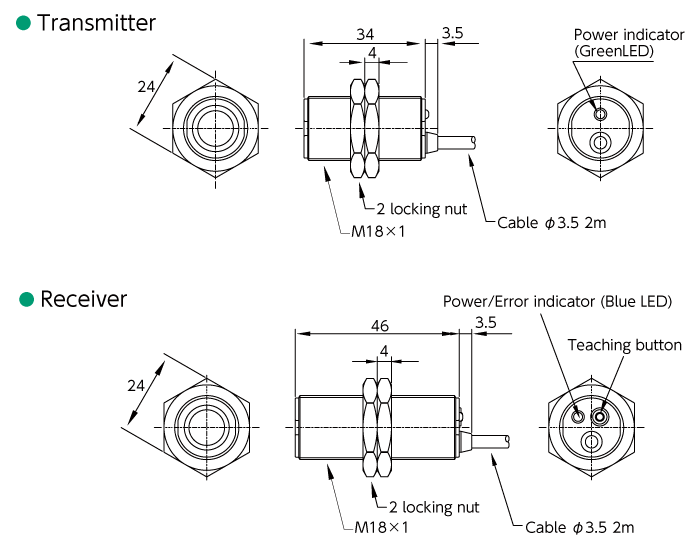

- M18 threaded screw housing
- Not affected by color or surface finish of the detecting object
- Fast response time
- Standard・Official Approval
|Model||Type||Power supply||Detection method||Detecting distance Min (mm)||Detecting distance (mm)||Control output||Response speed (ms)||Connection||Download|
||Ultrasonic||24VDC||Through beam||20 - 60||Analog||Attached cable|
The sensors are supplied in coordinated pairs of an ultrasonic transmitterand a receiver each of which has a matching serial No.
Detecting heated seal of plastic bag or thermal compression seal of metal bag.
Relaiable detection regardless of the bag content.
Double sheet detection
Reliably detects misfeed of printing or packaging machines.
