The HD Series HMDs are radiation detection photo sensors with separate amplifiers that have achieved compact sizes and low cost.

HD301A and HD601N are intended for sites where temperature in the vicinity of the receiver is up to 50 or 70 C and available in models for low temperature and medium/high temperature. Applications include detection of presence or passage of heated steel material, glass, etc.

HD400 and 502F are fiber optic cable sensors with ultrasmall heads.
Applications include detection of heated steel material, glass, etc.

• Low cost
  The HD Series offers the lowest cost of all HMDs. Amplifiers are separately installed and no watercooling is involved.
• Airless hood provided
  The HD Series sensors come with Airless hood for prevention of soiling of lens.
• Fiber type
  HD 400 may be used in combination with heat resistant generic fiber optic cables, which improves the resistance to heat and electric safety of the sensing head. Attaching a lens unit at the end extends the detecting distance.
  HD502F is the most competitive model of HMD. The fiber optic cable covered with ø1.1mm stainless tube allows focused detection of heated condition of electronic components or mechanical parts.

Compact multifunctional amplifier (HDA300A)

• 3 point level indicator
  The received light intensity level is shown by flashing 3 indictors for easy checking of stability.
• Sensitivity adjustment volume
• Relay output and voltage output available

(Sensor) model HD400

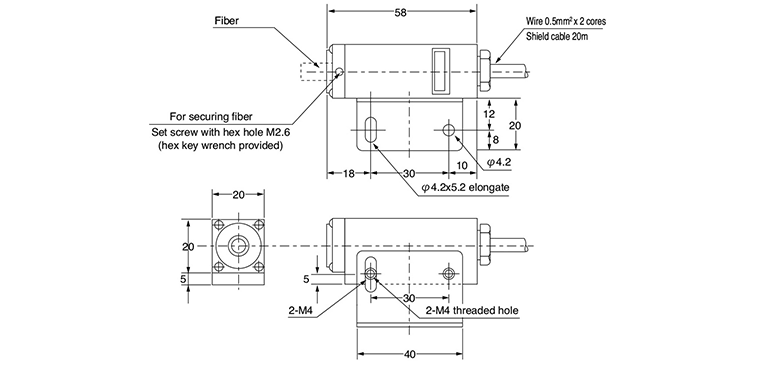

(Sensor) model HD301A・HD601N

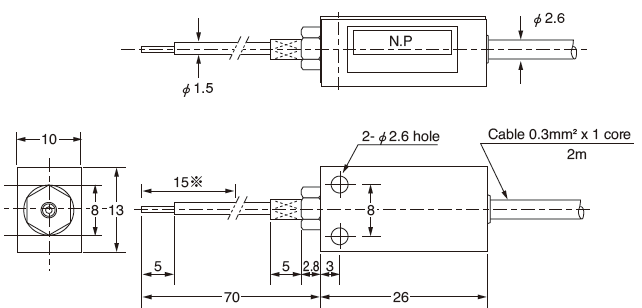

(Sensor) model HD502F

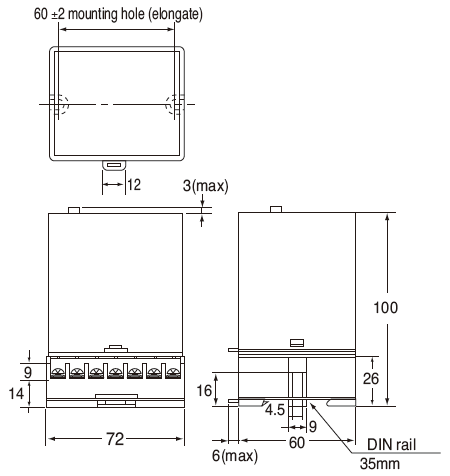

Amplifier unit HDA300A

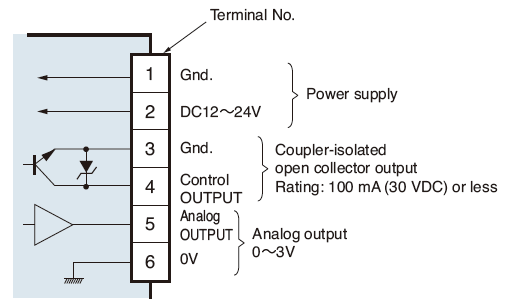

Connection

Note) The open collector output is isolated from power supply. The analog output “0” and “0” of power supply have different potentials. Do not common.

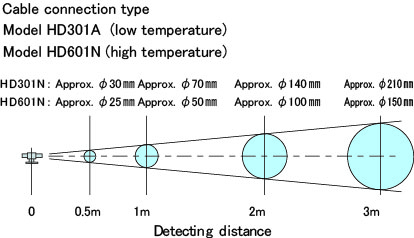

Cable connection type
Model HD301A (low temperature)
Model HD601N (high temperature)

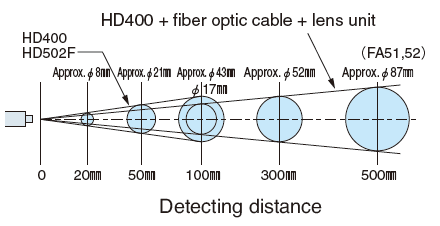

Fiber type
Model HD400
Model HD502F

Detection of formed bottles

HMD used for the detection of hot formed bottles.

• HD Series

Amplifier

AmplifierHDA300A

Description Amplifier Connection Terminal block (3.5mm screws) Ambient temperature -10°C to 50°C (non-freezing) Ambient humidity 35-85％RH (non-condensing) Insulation resistance 500VDC 20MΩ or higher *1 Dielectric withstanding 1500VAC for 1 minute *1 Protective structure IP20 Weight Approx. 450 g (including socket) Note <p>*1 Between case and grounding terminal (No. 1), Between case and relay contacts (collective), Between grounding terminal (No. 1) and relay contacts (collective)<br> Between case and entire power supply, Between grounding terminal (No. 1) and entire power supply, Between entire power supply and relay contacts (collective)</p>

Lens unit

	Lens unitFA51	Description Lens unit
	Lens unitFA52	Description Lens unit

Fiber optic cable

	Fiber optic cableGT205	Description Fiber optic cable Length 0.5m
	Fiber optic cableGT21	Description Fiber optic cable Length 1m
	Fiber optic cableGT22	Description Fiber optic cable Length 2m
	Fiber optic cableGT23	Description Fiber optic cable Length 3m
