UX3 Series
Ultra-extreme miniature Embedded Amplifier Photoelectric sensor
- Integrated Amplifier; as easy as using a Fiber Sensor
- Ultra-small M6 size
- Stainless Steel housing
- Sensitivity adjustment for fine tuning
- Download
-
-
UX3 Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
UX3-R5V
|
12-24VDC | Diffuse reflective | 3.00 | 50.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | |
|
UX3-R5VPN
|
12-24VDC | Diffuse reflective | 3.00 | 50.00 | PNP | Light on | Infrared LED | IP67 | Attached cable |

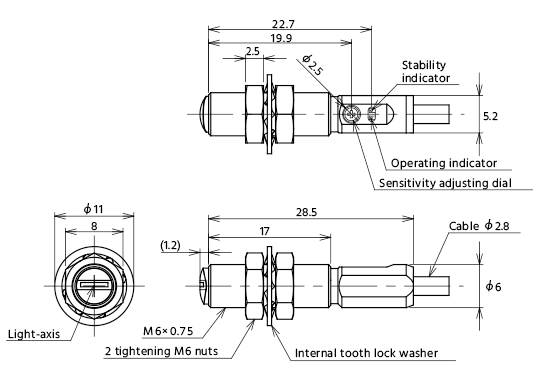

Dimension
UX3-R5V
UX3-R5VPN
Circuit

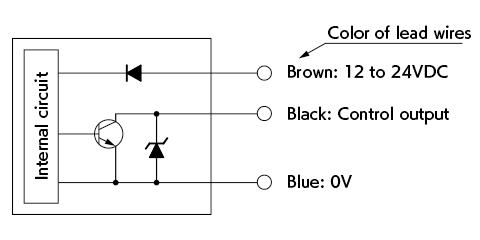

NPN output

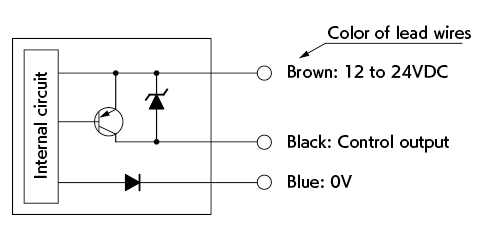

PNP ouput
Electronic Component Mounting

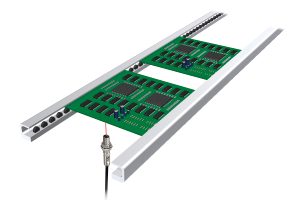

PCB passage detection
The sensor built in the machine detects passing PCBs.You can install it anywhere you like.
Embedded amplifier photo sensor.
