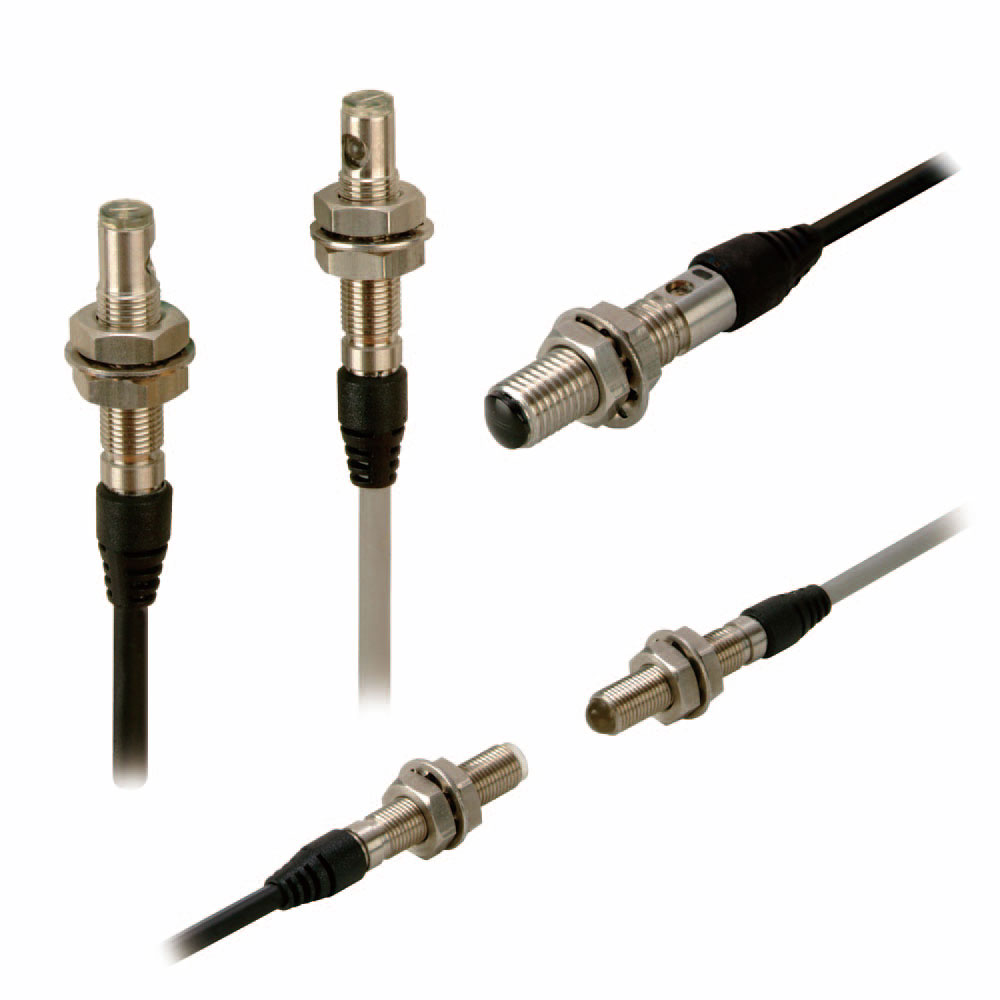

UX Series
Ultra-extreme miniature Embedded Amplifier Photoelectric sensor
- Amplifier embedded in M5 or M6 threaded screw
- Simple installation reduces man-hours.
- Replacing fiber sensors contributes to lower power consumption.
- Can be used in the battery industry thanks to its stainless steel housing.
- Our line includes both straight and side view through- beam types.
- Diffuse reflective type is equipped with sensitivity volume. (Model: UX-R5V, UX-R5VPN)
- Standard・Official Approval
-
UX Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
UX-T100D
|
Through beam | 1000.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UX-T100DPN
|
Through beam | 1000.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UX-T50DS
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UX-T50DSPN
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UX-R2
|
Diffuse reflective | 3.00 | 20.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
|
UX-R2PN
|
Diffuse reflective | 3.00 | 20.00 | PNP | Light on | Infrared LED | IP67 | Attached cable | ||
|
UX-R3
|
Diffuse reflective | 3.00 | 30.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
|
UX-R3PN
|
Diffuse reflective | 3.00 | 30.00 | PNP | Light on | Infrared LED | IP67 | Attached cable | ||
|
UX-R5
|
Diffuse reflective | 3.00 | 50.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
|
UX-R5PN
|
Diffuse reflective | 3.00 | 50.00 | PNP | Light on | Infrared LED | IP67 | Attached cable | ||
|
UX-R5V
|
Diffuse reflective | 3.00 | 50.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
|
UX-R5VPN
|
Diffuse reflective | 3.00 | 50.00 | PNP | Light on | Infrared LED | IP67 | Attached cable |
Dimension

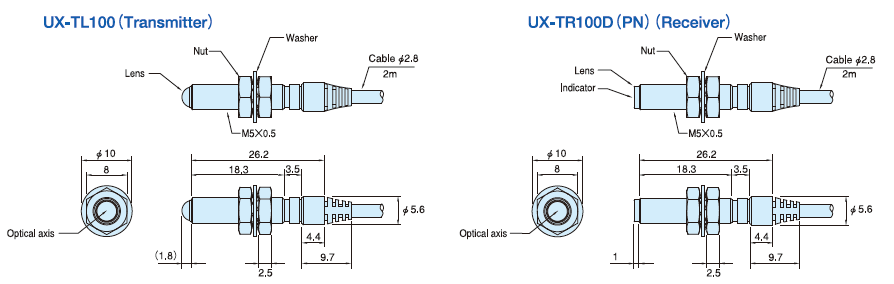

Through-beam Straight type
UX-T100D

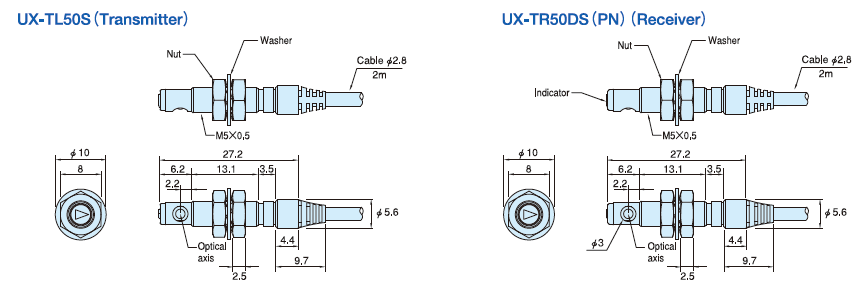

Through-beam Side-view type
UX-T50DS

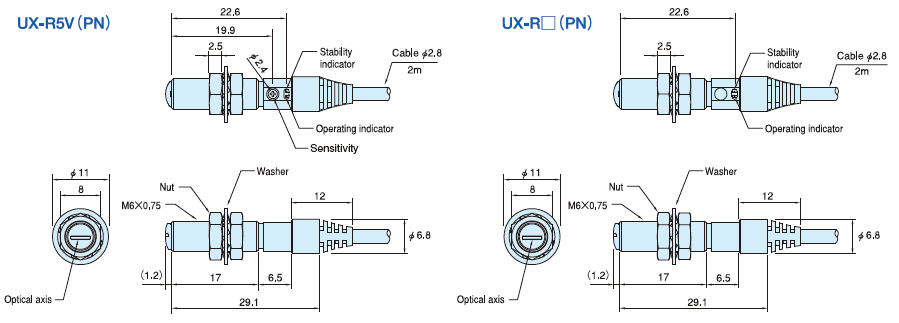

Diffuse reflective type
Circuit
NPN output
PNP output
- The transmitter for the through-beam type has a power supply cable only.
- The output transistor becomes OFF when itNULLs short or overload.
Make sure all connections are correct before turning the power on.
Electronic Component Mounting

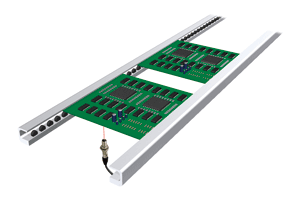

Detection of passage of PCB
The sensor built in the machine detects passing PCBs.You can install it anywhere you like.\nEmbedded amplifier photo sensor.
Electronic Component Mounting

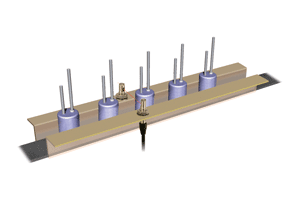

Detection of passing condensers
The sensor built in the guide detects condensers.Embedded amplifier photo sensor.
Sanitary/Amusement
Starting switch for game machine
Used as the starting switch for a game machine.
