SS10 Series
Slim type Light Curtain Sensors

  • Beam interval: 10mm
  • Anti Interference feature for parallel installation (M/S switching)
Standard・Official Approval
  • CE Mark

SS10 Series Lineups

Model Type Detection method Detecting distance Min (mm) Detecting distance (mm) Detecting object (dia.) Beam interval (mm) Detecting width (mm) Control output Download
SS10-T16
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 150 NPN
SS10-T24
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 230 NPN
SS10-T32
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 310 NPN
SS10-T48
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 470 NPN
SS10-T64
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 630 NPN
SS10-T80
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 790 NPN
SS10-T96
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 950 NPN
SS10-T16-PN
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 150 PNP
SS10-T24-PN
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 230 PNP
SS10-T32-PN
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 310 PNP
SS10-T48-PN
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 470 PNP
SS10-T64-PN
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 630 PNP
SS10-T80-PN
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 790 PNP
SS10-T96-PN
仕様を見る
Light curtain sensor Through beam 2000 17.0 10.0 950 PNP

Dimension

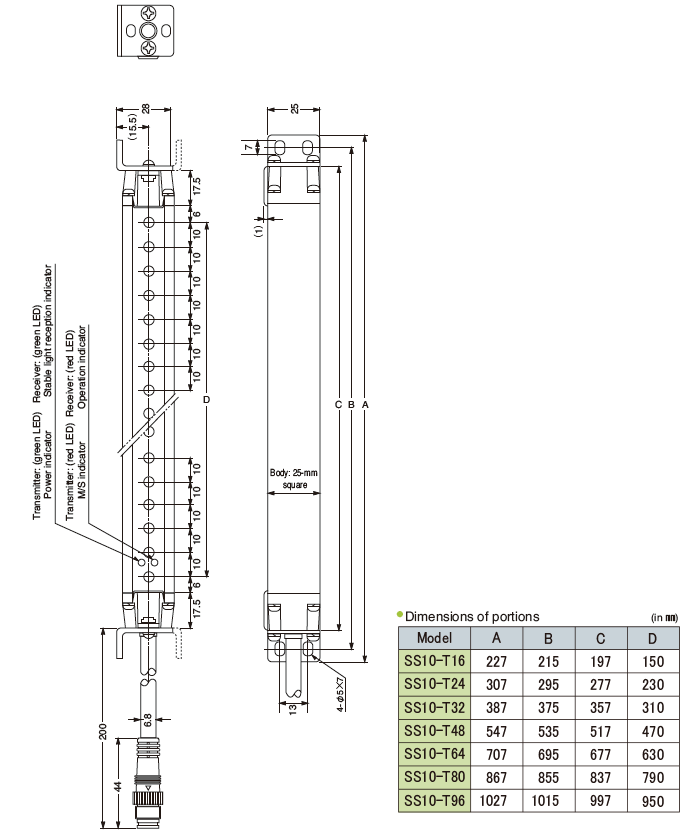

Only receiver is shown in the figure as an example.
With transmitter, orientation of mounting bracket is reversed.

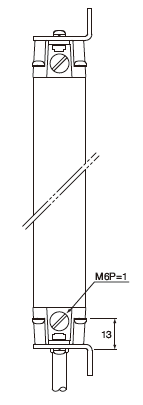

Back view (common to all sensors of the series)

Cable with connector (accessory)

Rubber/Plastic

Detection of hole or tear in opaque sheet

Wide area sensor equipped with one-axis output and all-axis output modes provides the detection of a hole or tear by activating the output when light is received in one or more axis.

Option

Cable with connector

オプション写真

Cable with connectorSS-H5L SS-H5R

Description Cable with connector
Discrete model No. SS-H5L (For transmitter)
SS-H5R (For receiver)
Length 5m
Description (6.8mm outer diameter, 0.5mm2 x4 cores, gray (transmitter) or black (receiver) covering)
オプション写真

Cable with connectorSS-H10L SS-H10R

Description Cable with connector
Discrete model No. SS-H10L (For transmitter)
SS-H10R (For receiver)
Length 10m
Description (6.8mm outer diameter, 0.5mm2 x4 cores, gray (transmitter) or black (receiver) covering)
