SS20 Series
Slim type Light Curtain Sensors
- Beam interval: 20
- Anti Interference feature for parallel installation (M/S switching)
- Longest-in-class detecting distance of 7m
- Standard・Official Approval
-
- Download
-
-
SS20 Series Lineups
| Model | Type | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Detecting object (dia.) | Beam interval (mm) | Detecting width (mm) | Control output | Download |
|---|---|---|---|---|---|---|---|---|---|
SS20-T8
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 140 | NPN | ||
|
SS20-T12
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 220 | NPN | ||
|
SS20-T16
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 300 | NPN | ||
|
SS20-T20
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 380 | NPN | ||
|
SS20-T24
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 460 | NPN | ||
|
SS20-T28
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 540 | NPN | ||
|
SS20-T32
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 620 | NPN | ||
|
SS20-T40
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 780 | NPN | ||
|
SS20-T48
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 940 | NPN | ||
|
SS20-T8-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 140 | PNP | ||
|
SS20-T12-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 220 | PNP | ||
|
SS20-T16-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 300 | PNP | ||
|
SS20-T20-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 380 | PNP | ||
|
SS20-T24-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 460 | PNP | ||
|
SS20-T28-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 540 | PNP | ||
|
SS20-T32-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 620 | PNP | ||
|
SS20-T40-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 780 | PNP | ||
|
SS20-T48-PN
|
Light curtain sensor | Through beam | 7000 | 32.0 | 20.00 | 940 | PNP |

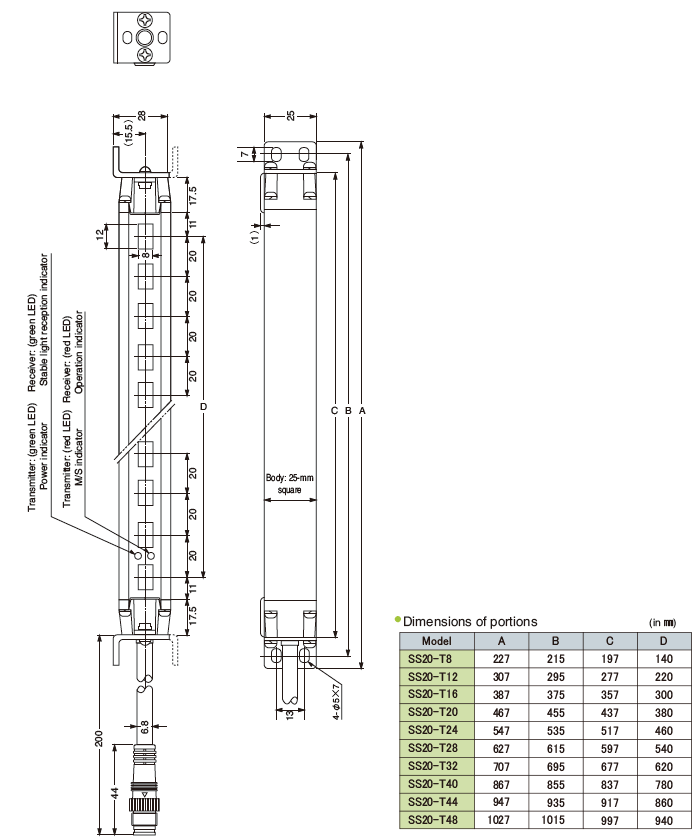

Dimension
Only receiver is shown in the figure as an example.
With transmitter, orientation of mounting bracket is reversed.

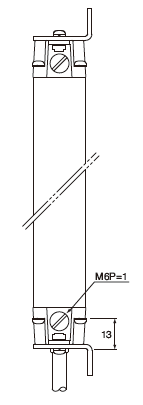

Back view (common to all sensors of the series)
Cable with connector (accessory)
Rubber/Plastic
Detection of hole or tear in opaque sheet
Wide area sensor equipped with one-axis output and all-axis output modes provides the detection of a hole or tear by activating the output when light is received in one or more axis.
Option
Cable with connector
| Cable with connectorSS-H5L SS-H5R |
|
||||||||
| Cable with connectorSS-H10L SS-H10R |
|
