SSP-S200 Series
Reflective bin-picking light curtain sensor

  • Retroreflective and Diffuse reflective mode switching
    It is possible to switch between Retroreflective and Diffuse reflective modes by flipping an Inner switch.
    You can select either Retroreflective or Diffuse reflective mode depending on the detecting distance for use.
  • Super thin body at only 13mm thick with sturdy metal case
    The metal case protects against impacts that may occur when an item, which you are taking out from a shelve, hits the case. Also, its space-saving thinness means the sensor does not become an obstacle during work.
  • Easy-to-see large Job indicator
    On the side of the body, there are two large-sized, highintensity green LED Job indicators which are easy to see.
  • NPN/PNP dual output
    You can select either NPN or PNP output with an inner switch of the sensor, which will contribute to reducing your stock of sensors.
  • Fault indicator
    If you take out the wrong item from a shelve, red lights of the Fault indicator flash on and off, letting you know the item is wrong.
  • Initial sensitivity setting function
    When you turn on the power after selecting either Retroreflective or Diffuse reflective mode, the optimal sensitivity is automatically set by the initial sensitivity setting function.
Standard・Official Approval
  • CE Mark
  • cULTus LISTED Mark

SSP-S200 Series Lineups

Model Type Detection method Detecting distance Min (mm) Detecting distance (mm) Detecting object (dia.) Beam interval (mm) Detecting width (mm) Control output Download
SSP-S204R
仕様を見る
Bin-picking system Reflective
Retroreflective
700 2000 80.0 100 NPN
PNP
SSP-S208R
仕様を見る
Bin-picking system Reflective
Retroreflective
700 2000 80.0 225 NPN
PNP
SSP-S204R-PJ
仕様を見る
Bin-picking system Reflective
Retroreflective
700 2000 80.0 100 NPN
PNP
SSP-S208R-PJ
仕様を見る
Bin-picking system Reflective
Retroreflective
700 2000 80.0 225 NPN
PNP

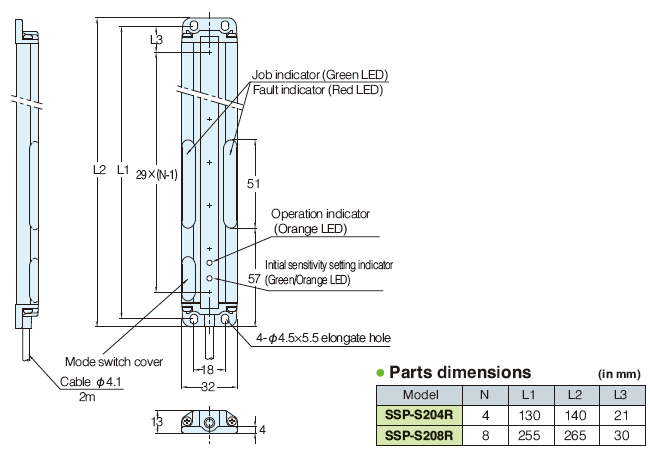

Dimension

SSP-S204R
SSP-S208R

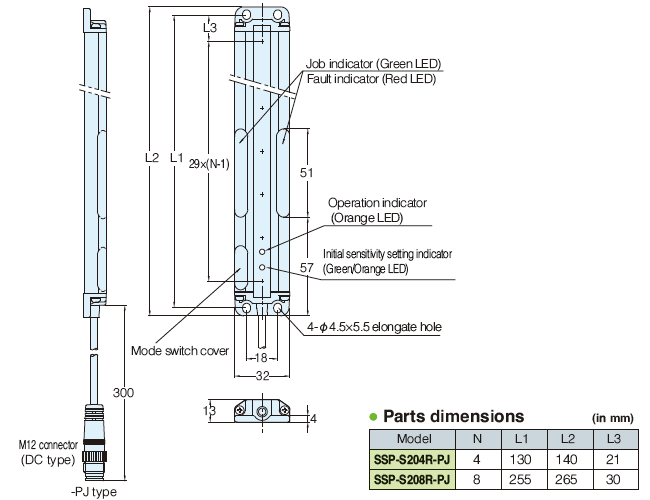

SSP-S204R-PJ
SSP-S208R-PJ

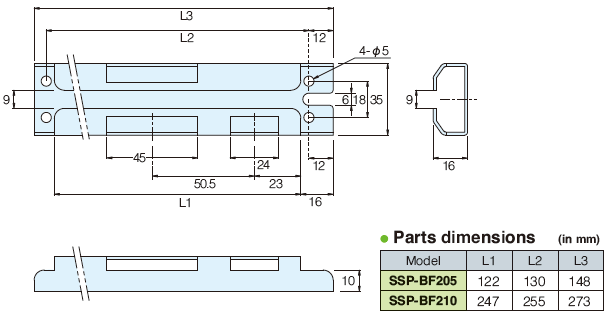

Protective cover
SSP-BF

Circuit

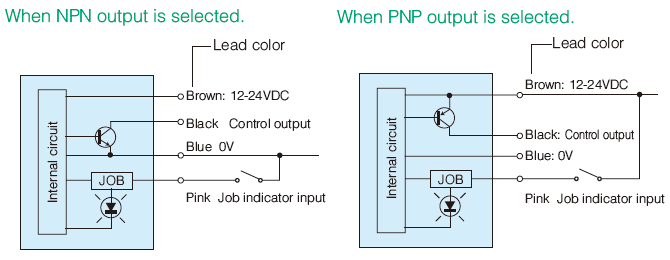

Attached cable type

With the mode selector switch, you can select for job indicator input and NPN/PNP type Reciever output.

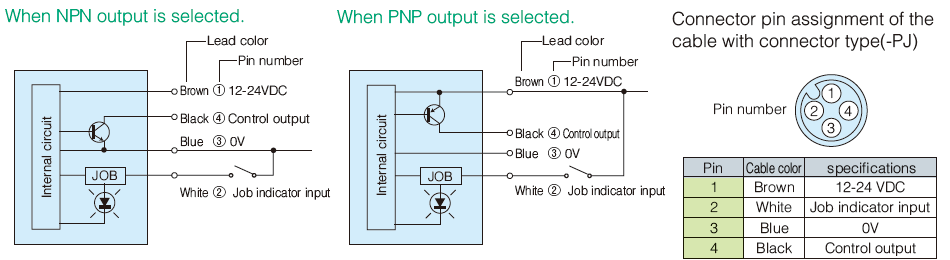

Cable with connector type (-PJ)

With the mode selector switch, you can select for job indicator input and NPN/PNP type Reciever output.

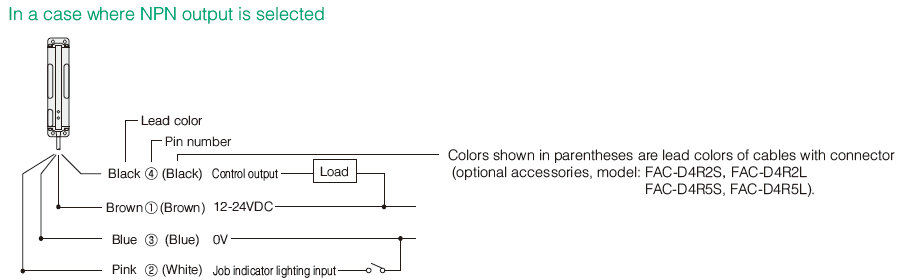

Connection

  • About Wiring
    When expanding the wiring, use cables with 0.5 mm2 or more. The length of expansion has to be 100m or shorter for the transmitter and the receiver each.

Option

Mounting bracket

オプション写真

Dedicated mounting bracketSSP-B1

dimLink
Description Mounting bracket
Shape Flat
Description Two pieces as one set
(M4 x 12 SEMS screws with washers and nuts)
Two sets are necessary; one set is for transmitter and the other for receiver.
オプション写真

Dedicated mounting bracketSSP-B2

dimLink

Cable with connector

オプション写真

Cable with connectorFAC-D4R2S

dimLink
Description Cable with connector (Straight type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 2m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 2m
オプション写真

Cable with connectorFAC-D4R2L

dimLink
Description Cable with connector (Angle type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 2m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 2m
オプション写真

Cable with connectorFAC-D4R5S

dimLink
Description Cable with connector (Straight type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 5m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 5m
オプション写真

Cable with connectorFAC-D4R5L

dimLink
Description Cable with connector (Angle type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 5m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 5m

Protective cover

オプション写真

Protective coverSSP-BF205

dimLink
Description Protective cover
Description One piece
Two pieces are necessary; one is for transmitter and the other for receiver.
オプション写真

Protective coverSSP-BF210

dimLink
Description Protective cover
Description One piece
Two pieces are necessary; one is for transmitter and the other for receiver.

Reflector

オプション写真

ReflectorS-SSP120

dimLink
Description Reflector
Description Adheseve tape on the back side, cuttable
オプション写真

ReflectorS-SSP245

dimLink
Description Reflector
Description Adheseve tape on the back side, cuttable

Mounting bracket

オプション写真

Mounting bracketSSP-BR1

dimLink
オプション写真

Mounting bracketSSP-BR2

dimLink
