F70A Series
Digital display Fiber optic sensors

  • Digital indication of sensing information
  • Simple operation for setting functions
  • Two-way monitoring is available.
    Level and gap indication alternates with every one push of the button.
  • Readily visible backlight LCD.
  • Various convenient functions provided
    • Full auto/auto teaching
    • Mutual Interference prevention
    • Manual sensitivity setting
    • Off delay timer
Standard・Official Approval
  • CE Mark
  • cULTus LISTED Mark

F70A Series Lineups

Model Power supply Control output Operation mode Light source Response time (ms) Connection Use application Download
F70AR
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Red LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70AG
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Green LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70AB
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Blue LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70AW
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
White LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70ARPN
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
Red LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70AGPN
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
Green LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70ABPN
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
Blue LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70AWPN
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
White LED 0.600
0.700
Attached cable semiconductor / LCD
precision instruments / electronic components
F70AR-J
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Red LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components
F70AG-J
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Green LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components
F70AB-J
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
Blue LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components
F70AW-J
仕様を見る
12 - 24VDC NPN Dark-ON
Light-ON
White LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components
F70ARPN-J
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
Red LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components
F70AGPN-J
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
Green LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components
F70ABPN-J
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
Blue LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components
F70AWPN-J
仕様を見る
12 - 24VDC PNP Dark-ON
Light-ON
White LED 0.600
0.700
M8 connector semiconductor / LCD
precision instruments / electronic components

Feature

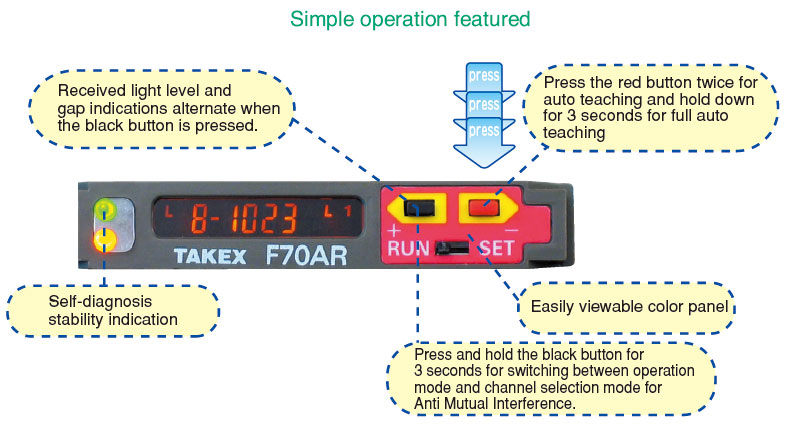

Simple operation

Simple operation

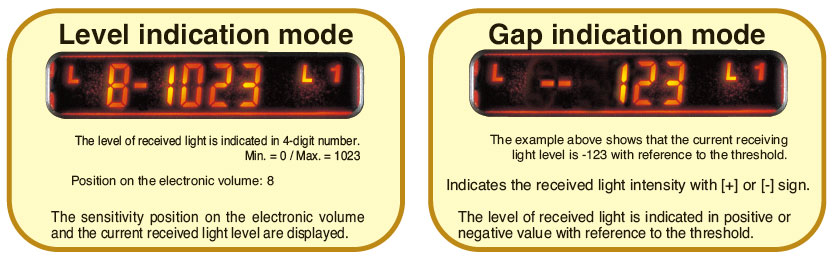

2 types of received light level indication

2 types of received light level indication

Enhanced teaching features (sensitivity setting)

  • Full auto teaching
    Simply pressing the button allows easy teaching; even for an object moving at a high speed.
  • Auto teaching
    2-point teaching “with" and “without" the work allows the detection of slight level difference such as the thickness of a piece of work and the presence of a film.
  • Position teaching
    This feature is ideal for high accuracy positioning that requires accurate determination of a detecting point.
  • Maximum sensitivity setting
    For applications requiring maximum sensitivity setting such as the detection of work with a through beam type fiber optic cable, the extra powerful light allows for use in an adverse environment.
  • Manual setting
    Arbitrary manual increase and decrease of a “set point" allows level setting while checking the operation.

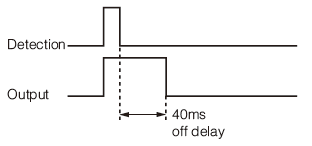

Secure output for any type of device with the off delay timer

Secure output for any type of device with the off delay timer

A small object moving at a high speed can be securely detected.
The off delay output enables matching a range of input configurations of connected devices.

Dimension

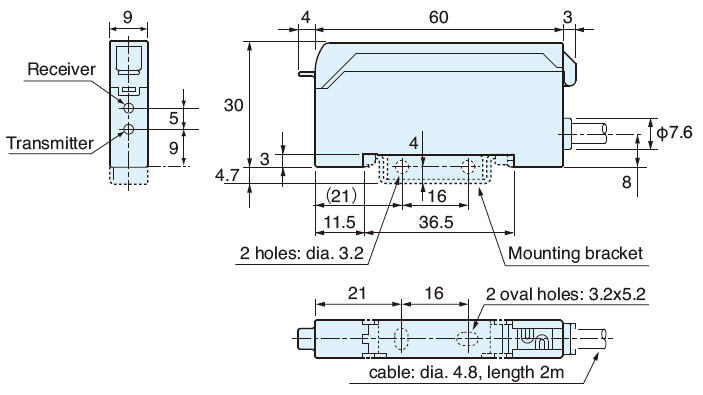

Amplifier unit (cable type)

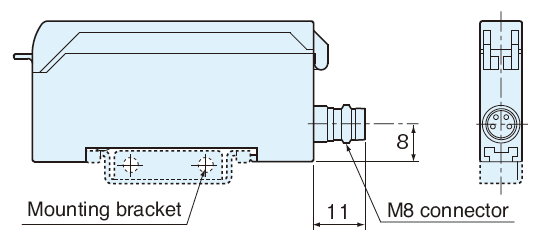

M8 connector type

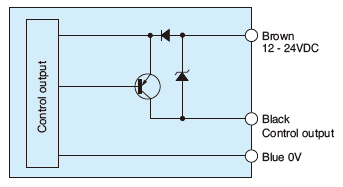

Circuit

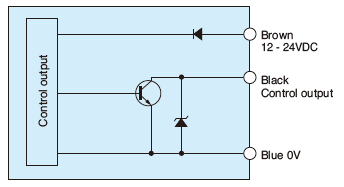

NPN output
F70AR
F70AG
F70AB
F70AW

PNP output
F70ARPN
F70AGPN
F70ABPN
F70AWPN

In the condition of load short circuit or overload, the output transistor turns off. Check the load condition before restarting.

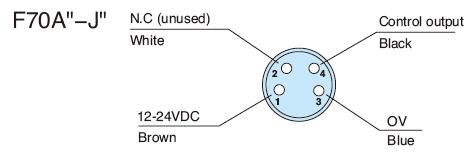

M8 Connector Type Input/Output Specification, Pin Assignment and Lead Colors

Electronic Component Mounting

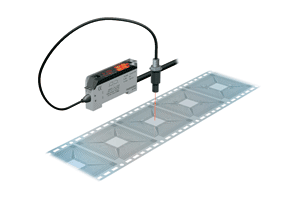

Checking of presence of silver paste

Even a small amount of paste can be detected with a spot size of 0.5 mm in diameter.

Option

End unit

オプション写真

End unitFA7EU

dimLink
Description DIN rail mounting stopper

Mounting bracket

オプション写真

Mounting bracket (accessory)AC-BF2

dimLink
Description Amplifier unit mounting bracket
