NE2 Series
Embedded Amplifier Photo Sensors

NE2 Series
  • Standard embedded long range amplifier type with a focus on basic functionality and high quality
    • Longest detecting distance in this category
    • Through beam: 30m, 50m
    • Polarized retroreflective: 8m
    • Diffuse reflective: 1m
    • Background Suppression:500mm,700mm
    • With light emission inhibit function, which is useful for operation check or start-up inspection (through beam type only)
    • IP67 protective construction
    • Polarized retroreflective and diffuse reflective types with mutual interference prevention (up to two sensors)
    • Polarizing filter (separately available) enables two sensors to be installed very closely (for NE2-T30R-2)
    • NPN/PNP dual output
Standard・Official Approval
  • CE Mark
  • cMETusMark

NE2 Series Lineups

Model Power supply Detection method Detecting distance min (mm) Detecting distance (mm) Control output Operation mode Light source Protective structure Connection Download
NE2-T50-2
仕様を見る 		12-24VDC Through beam 50000.00 50000 NPN
PNP 		Dark on
Light on 		Infrared LED IP67 Attached cable
NE2-T30R-2
仕様を見る 		12-24VDC Through beam 30000 NPN
PNP 		Dark on
Light on 		Red LED IP67 Attached cable
NE2-M10R-2
仕様を見る 		12-24VDC Polarized retroreflective 50.00 8000 NPN
PNP 		Dark on
Light on 		Red LED IP67 Attached cable
NE2-R10-2
仕様を見る 		12-24VDC Diffuse reflective 1000 NPN
PNP 		Dark on
Light on 		Infrared LED IP67 Attached cable
NE2-T50-J2
仕様を見る 		12-24VDC Through beam 50000 NPN
PNP 		Dark on
Light on 		Infrared LED IP67 M12 connector
NE2-T30R-J2
仕様を見る 		12-24VDC Through beam 30000 NPN
PNP 		Dark on
Light on 		Red LED IP67 M12 connector
NE2-M10R-J2
仕様を見る 		12-24VDC Polarized retroreflective 50.00 8000 NPN
PNP 		Dark on
Light on 		Red LED IP67 M12 connector
NE2-R10-J2
仕様を見る 		12-24VDC Diffuse reflective 1000 NPN
PNP 		Dark on
Light on 		Infrared LED IP67 M12 connector

Dimension

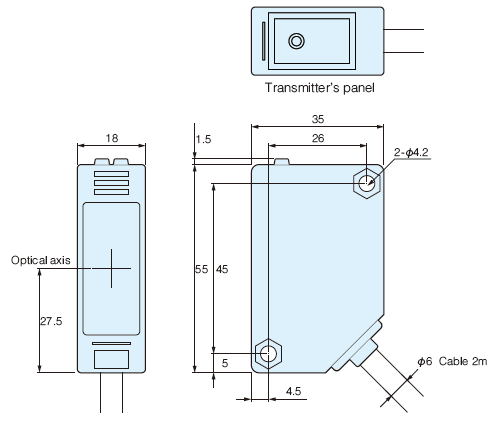

Cable type

Cable type

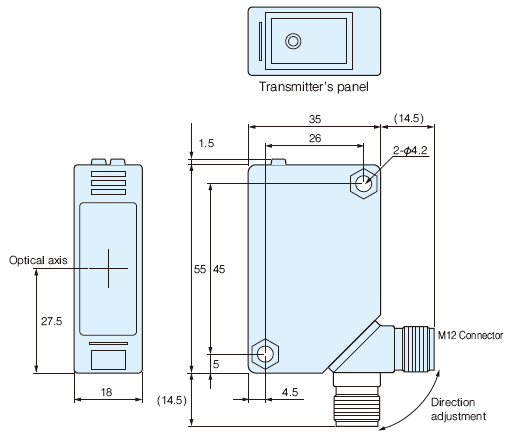

M12 Connector type

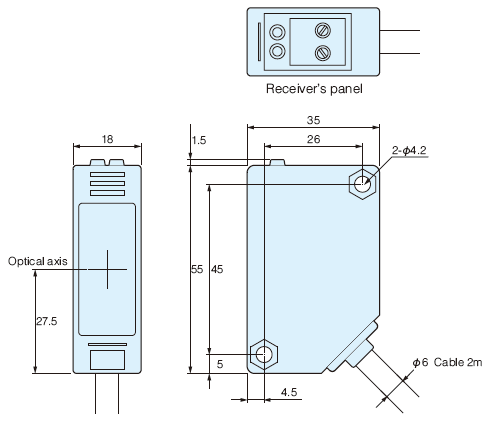

M12 Connector type Receiver, polarized reflective type, diffuse reflective type
NE2-TR50-J
NE2-TR30R-J
NE2-M10R-J
NE2-R10-J

Cable type

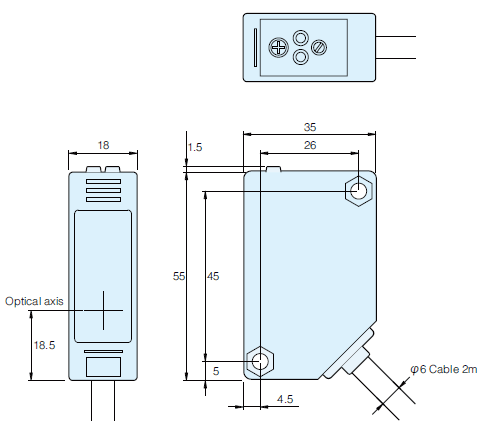

NE2-D70-2
NE2-D50R-2

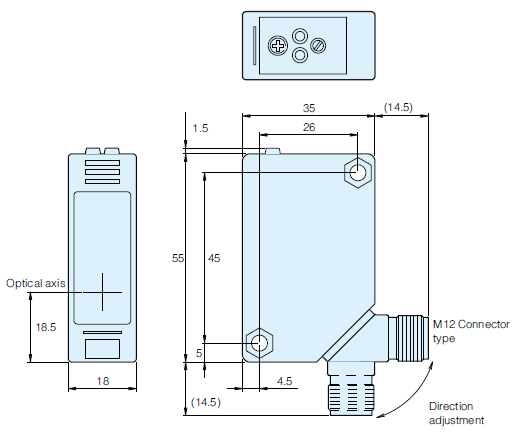

Connector type
NE2-D70-J2
NE2-D50R-J2

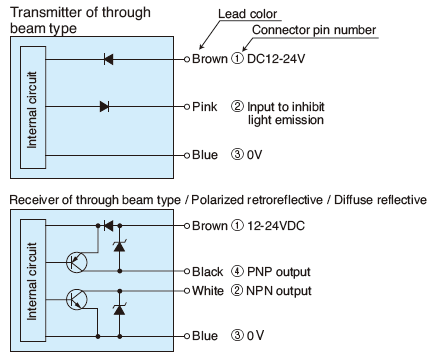

Circuit

Circuit

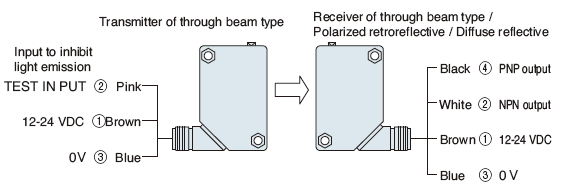

Connection

  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.
  • Circled numbers show the pin number of M12 connector type.
  • Models without the suffix "-2" are available with reverse pin assignment for PNP and NPN output.

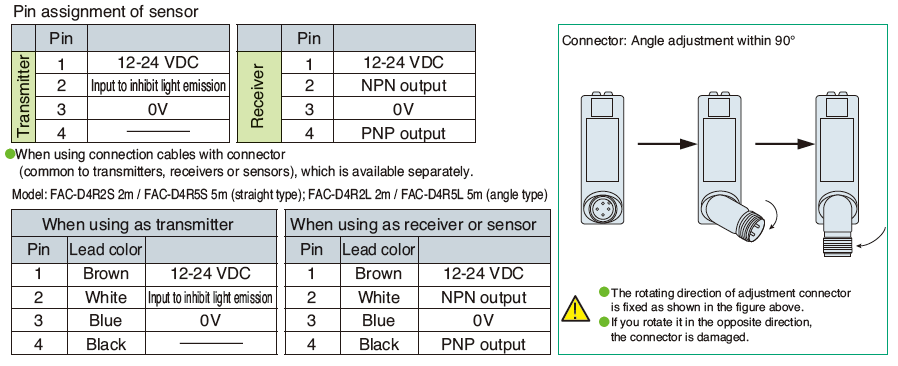

Pin assignment and connection of M12 connector type

Option

Pinhole plate

オプション写真

Pinhole plateNE2-P5
Description Pinhole plate
Application model NE2-T50-2, NE2-T50-J2
NE2-T30R-2, NE2-T30R-J2
Pinhole diameter 5mm
Detecting distance NE2-T50-2, NE2-T50-J2 : 10m
NE2-T30R-2, NE2-T30R-J2 : 7m
オプション写真

Pinhole plateNE2-P3
Description Pinhole plate
Application model NE2-T50-2, NE2-T50-J2
NE2-T30R-2, NE2-T30R-J2
Pinhole diameter 3mm
Detecting distance NE2-T50-2, NE2-T50-J2 : 5m
NE2-T30R-2, NE2-T30R-J2 : 3m
オプション写真

Pinhole plateNE2-P5X1
Description Pinhole plate
Application model NE2-T50-2, NE2-T50-J2
NE2-T30R-2, NE2-T30R-J2
Pinhole diameter 5X1mm
Detecting distance NE2-T50-2, NE2-T50-J2 : 3m
NE2-T30R-2, NE2-T30R-J2 : 2m

Reflector

オプション写真

ReflectorK-8

dimLink
Effective reflecting surface Approx. 47X47mm
Protective structure IP67
Mounting sedured with M4 screws
Materials Mirror : acrylic, Base : heat resistant ABS
Detecting distance 0.05 - 10m
Applicable model NE2-M10R-2、NE2M10R-J2
オプション写真

ReflectorK-71

dimLink
Effective reflecting surface Approx. 30X18mm
Protective structure IP67
Mounting sedured with M3 screws (alternatively adhesive may be used)
Materials Mirror : acrylic, Base : heat resistant ABS
Accessories Screw : 2, Nut : 2
Dimensions 43X23mm
Detectjing object Opaque object of dia. 40mm
Detecting distance 0.05 - 4m
Applicable model NE2-M10R-2、NE2M10R-J2

Interference prevention filter

オプション写真

Interference prevention filterNE2-PFA
Description Interference immune filter
Application model NE2-T30R-2, NE2-T30R-J2
Description Longitudinal polarization filter
オプション写真

Interference prevention filterNE2-PFB
Description Interference immune filter
Application model NE2-T30R-2, NE2-T30R-J2
Description Transverse polarization filter

Mounting bracket

オプション写真

Mounting bracketNE-B1

dimLink
Description For vertical mounting
Applicable model All models
Accessories Screw : 2, Nut : 2
Materials SUS
オプション写真

Mounting bracketNE-B2

dimLink
Description For mounting on the back
Applicable model All models
Accessories Screw : 2, Nut : 2
Materials SUS
オプション写真

Mounting bracketNE-B1C
Description Mounting bracket For vertical mounting
Application model All models
Materials SPCC trivalent chromating
オプション写真

Mounting bracketNE-B2C
Description Mounting bracket For mounting on the back
Application model All models
Materials SPCC trivalent chromating

Cable with connector

オプション写真

Cable with connectorFAC-D4R2S

dimLink
Description Cable with connector (Straight type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 2m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 2m
オプション写真

Cable with connectorFAC-D4R5S

dimLink
Description Cable with connector (Straight type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 5m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 5m
オプション写真

Cable with connectorFAC-D4R2L

dimLink
Description Cable with connector (Angle type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 2m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 2m
オプション写真

Cable with connectorFAC-D4R5L

dimLink
Description Cable with connector (Angle type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 5m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 5m
