CS Series
LED Type Color Sensors

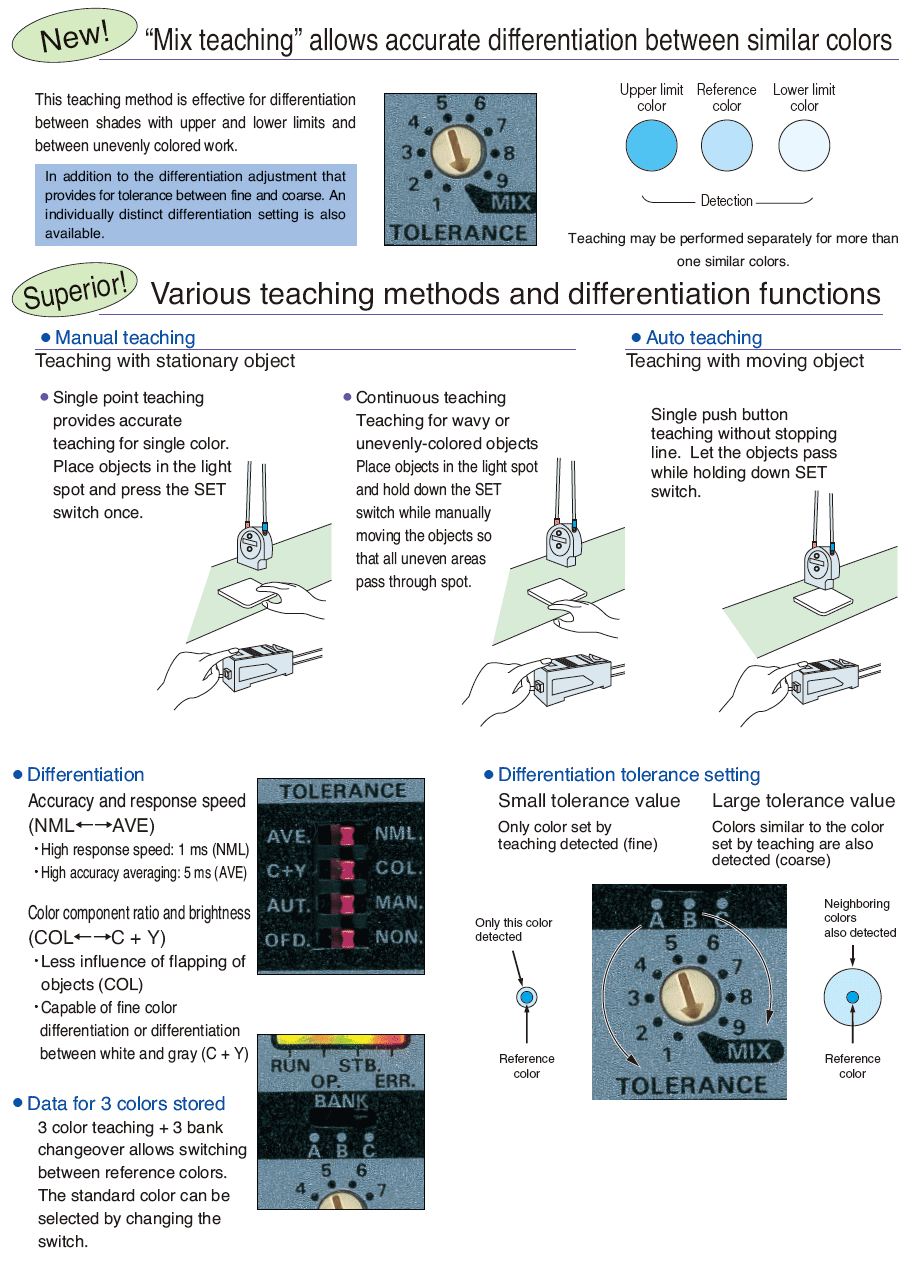

- New feature (mix teaching)
- Improved width of color identification through RGB composition
- Easy color setting using the teaching function
- Standard・Official Approval
-
CS Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
CS-D3
|
Spectroscopy measurement | 33.00 | NPN | 3 color teaching Single color identification | Red, green, blue LEDs (RGB composition) | IP54 | Attached cable | |||
|
CS-D3PN
|
Spectroscopy measurement | 33.00 | PNP | 3 color teaching Single color identification | Red, green, blue LEDs (RGB composition) | IP54 | Attached cable |
Feature

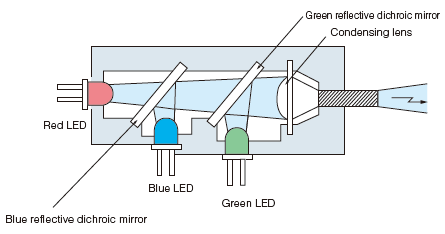

Pure RGB composit light for improved color differentiation
Dimension

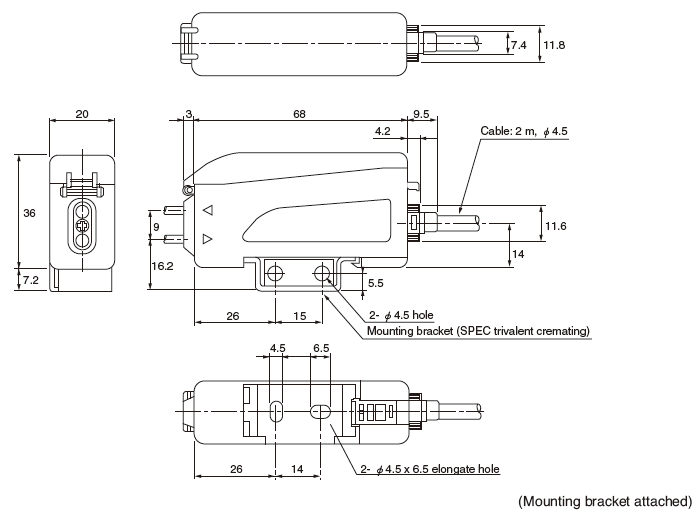

Amplifier
CS-D3
CS-D3PN
Optic fiber cable

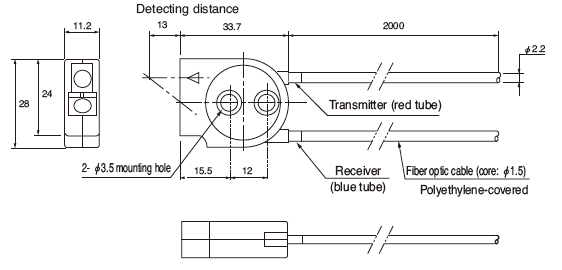

CS-DF10
Optic fiber cable

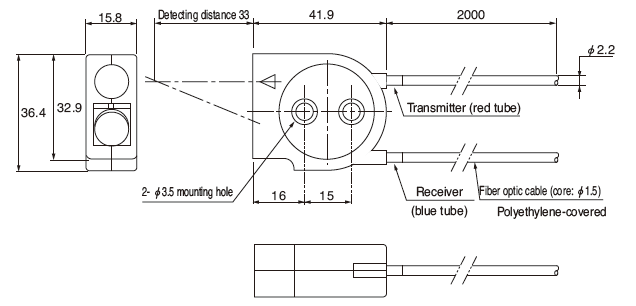

CS-DF30
Circuit

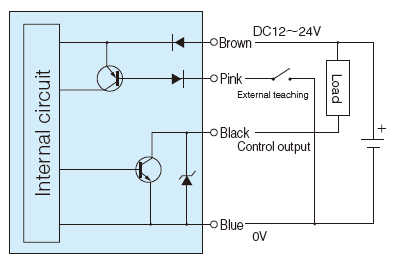

CS-D3
NPN output

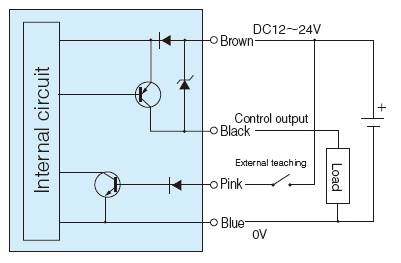

CS-D3PN
PNP output
- For an external teaching input, use open collector or relay contact. The function is the same as that of the SET switch on the sensor main unit.
- The output circuit has a built-in short circuit protection circuit. For reset, deactivate the output once by turning the power back on or operating the Bank changeover switch.
Electronic Component Mounting

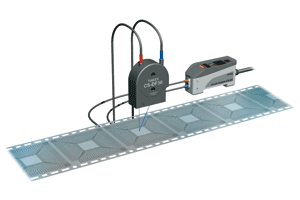

Detection of lead frame plating
Reliable detection achieved by determination of RGB color component and brightness.
Automobile
Checking for mixed bearing outer cases
Outer bearing cases checked by color marking for the purpose of mixing different models.
