SS20 Series
Slim type Light Curtain Sensors

  • Beam interval: 20
  • Anti Interference feature for parallel installation (M/S switching)
  • Longest-in-class detecting distance of 7m
Standard・Official Approval
  • CE Mark
  • cMETusMark

SS20 Series Lineups

Model Type Detection method Detecting distance Min (mm) Detecting distance (mm) Detecting object (dia.) Beam interval (mm) Detecting width (mm) Control output Download
SS20-T8
仕様を見る
SS20-T12
仕様を見る
SS20-T16
仕様を見る
SS20-T20
仕様を見る
SS20-T24
仕様を見る
SS20-T28
仕様を見る
SS20-T32
仕様を見る
SS20-T40
仕様を見る
SS20-T48
仕様を見る
SS20-T8-PN
仕様を見る
SS20-T12-PN
仕様を見る
SS20-T16-PN
仕様を見る
SS20-T20-PN
仕様を見る
SS20-T24-PN
仕様を見る
SS20-T28-PN
仕様を見る
SS20-T32-PN
仕様を見る
SS20-T40-PN
仕様を見る
SS20-T48-PN
仕様を見る

Dimension

Only receiver is shown in the figure as an example.
With transmitter, orientation of mounting bracket is reversed.

Back view (common to all sensors of the series)

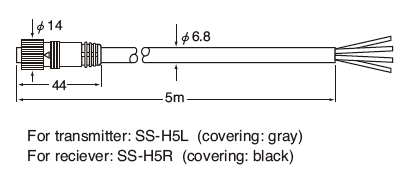

Cable with connector (accessory)

Rubber/Plastic

Detection of hole or tear in opaque sheet

Wide area sensor equipped with one-axis output and all-axis output modes provides the detection of a hole or tear by activating the output when light is received in one or more axis.

Option

Cable with connector

オプション写真

Cable with connectorSS-H5L SS-H5R

Description Cable with connector
Discrete model No. SS-H5L (For transmitter)
SS-H5R (For receiver)
Length 5m
Description (6.8mm outer diameter, 0.5mm2 x4 cores, gray (transmitter) or black (receiver) covering)
オプション写真

Cable with connectorSS-H10L SS-H10R

Description Cable with connector
Discrete model No. SS-H10L (For transmitter)
SS-H10R (For receiver)
Length 10m
Description (6.8mm outer diameter, 0.5mm2 x4 cores, gray (transmitter) or black (receiver) covering)
