US-T50/US-R25
Ultrasonic Sensors
- Microminiature ultrasonic sensor embedded in a conventional sensor housing
- Reliably detecting transparent packaging PET bottle or container
- Adjustment POT are equipped on the both model
- Standard・Official Approval
-
US-T50/US-R25 Lineups
| Model | Type | Power supply | Detection method | Detecting distance Min (mm) | Detecting distance (mm) | Control output | Response speed (ms) | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|
US-T50
|
Ultrasonic | 24VDC | Through beam | 500 | NPN | 10 | Attached cable | ||
|
US-T50PN
|
Ultrasonic | 24VDC | Through beam | 500 | PNP | 10 | Attached cable | ||
|
US-R25
|
Ultrasonic | 24VDC | Reflective | 60 | 250 | NPN |
30
50 |
Attached cable | |
|
US-R25PN
|
Ultrasonic | 24VDC | Reflective | 60 | 250 | PNP |
30
50 |
Attached cable |

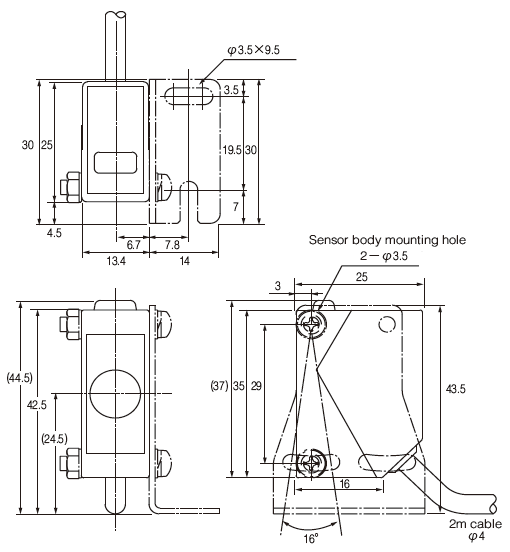

Dimension
For all models (transmitter/receiver)
Dotted lines show the dimensions with the mounting bracket (accessory) attached
Circuit

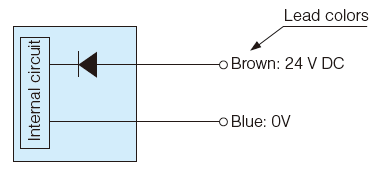

US-TE50 (Transmitter)
NPN output
US-TR50
US-R25

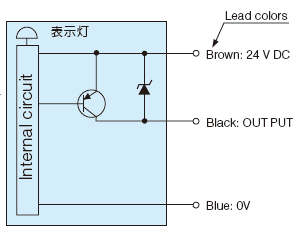

PNP output
US-TR50PN
US-R25PN
Semiconductor
Glass wafer detection
Ultrasonic sensor reliably detects wafers with water drops on them.
Rubber/Plastic
Tire detection
Ultrasonic sensor used for detection regardless of tire size or conveyor color.
Rubber/Plastic
Transparent tray detection
Passage of transparent tray detected with ultrasonic sensor.
Packaging/Food/Drug
Transparent film detection
Ultrasonic sensor allowing detection regardless of degree of transparency, color or material.
