SS10A Series

Versatile output operation

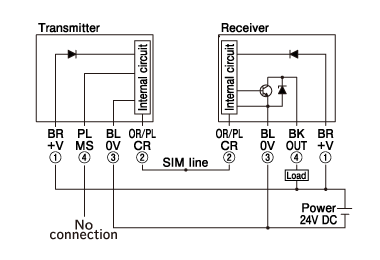

For single use (without using the interference prevention funciton)

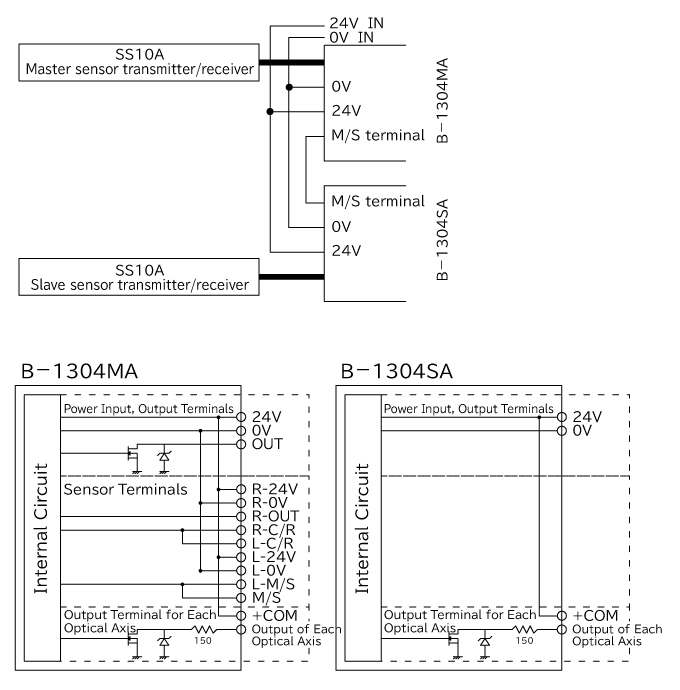

For the sensor of 65optical axes or more, use the connector with cable (attached to B-1304SA as an accessory) to connect with B-1304MA.

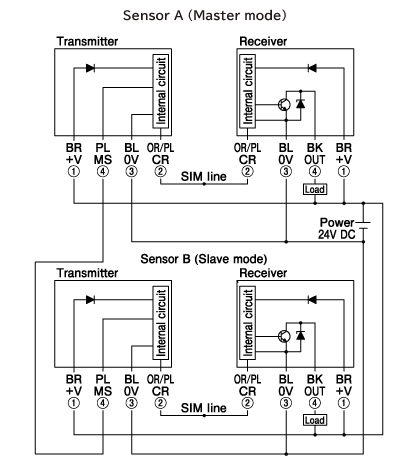

Mutual interference prevention connection

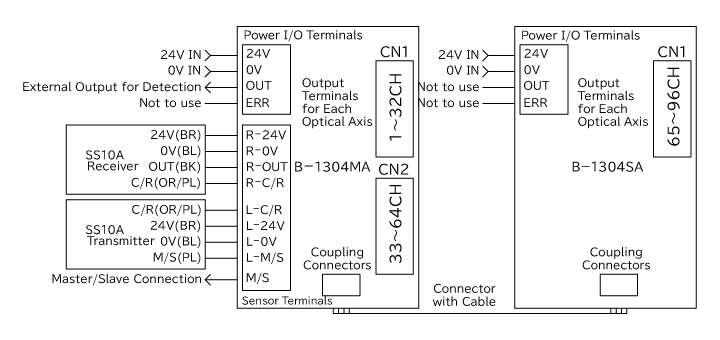

Individual output for each optical axis

For single use (without using the interference prevention funciton)

Mutual interference prevention connection

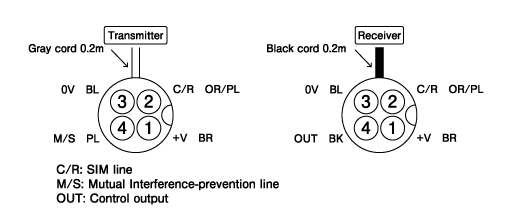

Connector pin layout

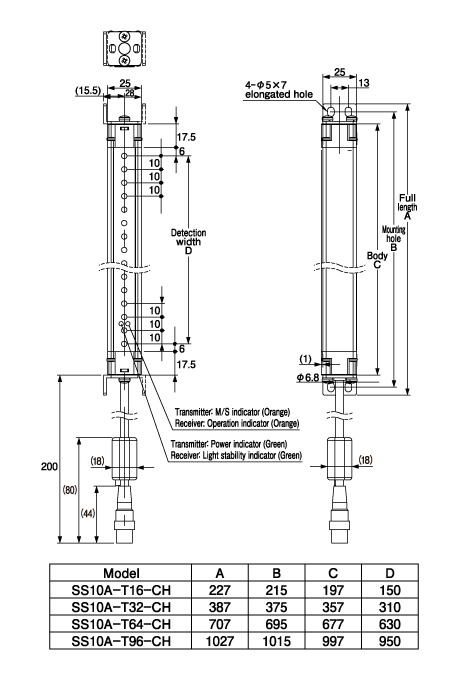

Carton dimension sizing

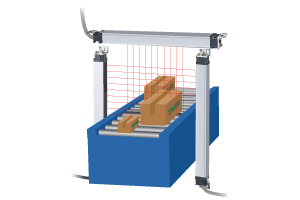

Mutual interference prevention function allows to install two sensors adjacently

• Light curtain sensor with individual output for each optical axis SS10A Series

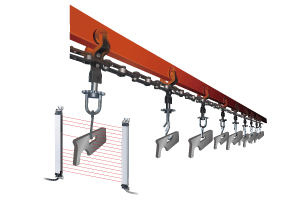

Parts shape identification

Determines the shape of the object passing between sensors by blocking the optical axes

• Light curtain sensor with individual output for each optical axis SS10A Series

Conversion board

B-1304MA/SA

Connection sensor SS10A series Channel number B-1304MA：64CH　B-1304SA：32CH Maximum number of optical axes 96 Power supply 24V DC ±10％, Ripple:10％ or less Current consumption 400mA or less for B-1304MA and B-1304SA in total （Sensor part and each optical axis output ＋ COM excluded） Output operation mode Dark-ON operation:operation indicator:OFF with light received in all axes, ON with light blocked in one more optical axes indicator of each optical axis output: OFF with light received, ON with light blocked Light-ON operation: operation indicator: OFF with light received in all axes,ON with light locked in one or more optical axes indicator of each optical axis output: ON with light received, OFF with light blocked Output FET open drain output Rating:30V DC 30mA,Residual voltage:2V or less Response time Up to 45ms including sensor *Data update cycle: Approx. 3ms Sensor and power connection method Terminal board (SMKDS1 Phoenix contact) Connection method of each optical axis output 40P connector（N365P040 Otax） Connection method between main and sub boards Attached cable with connector Indicators Power indicator(Green LED),Operation indicator(Orange LED), Operation indicator of each optical axis(Red LED) Other functions Output operation switches,Optical axis number selection switches Ambient temperature -10 to +55℃（no dew condensation） Ambient humidity 35 to 85％RH（no dew condensation） Protective structure None (board open structure)

Cable with connector

	SS-H5L SS-H5R	Description Cable with connector Discrete model No. SS-H5L (For transmitter) SS-H5R (For receiver) Length 5m Description (6.8mm outer diameter, 0.5mm2 x4 cores, gray (transmitter) or black (receiver) covering)
	SS-H10L SS-H10R	Description Cable with connector Discrete model No. SS-H10L (For transmitter) SS-H10R (For receiver) Length 10m Description (6.8mm outer diameter, 0.5mm2 x4 cores, gray (transmitter) or black (receiver) covering)
