SSP-T200 Series
Through beam for Bin-Picking System Light curtain sensors

  • Suitable to use as part of a binpicking system to avoid mispicks.
  • Thinness of 13 mm achieved with rigid metal case
  • Large job indicator (job light)
  • Faulty job indicator (fault light) is provided
  • 4 types are available for different sizes of parts bins
  • Requiring no synchronization line
    Asynchronous method employed, eliminating need for synchronization line
Standard・Official Approval
  • CE Mark

SSP-T200 Series Lineups

Model Type Detection method Detecting distance Min (mm) Detecting distance (mm) Detecting object (dia.) Beam interval (mm) Detecting width (mm) Control output Download
SSP-T205
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 100 NPN
PNP
SSP-T210
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 225 NPN
PNP
SSP-T213
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 300 NPN
PNP
SSP-T216
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 375 NPN
PNP
SSP-T205-PJ
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 100 NPN
PNP
SSP-T210-PJ
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 225 NPN
PNP
SSP-T213-PJ
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 300 NPN
PNP
SSP-T216-PJ
仕様を見る
Bin-picking system Through beam 2000 35.0 25.0 375 NPN
PNP

Dimension

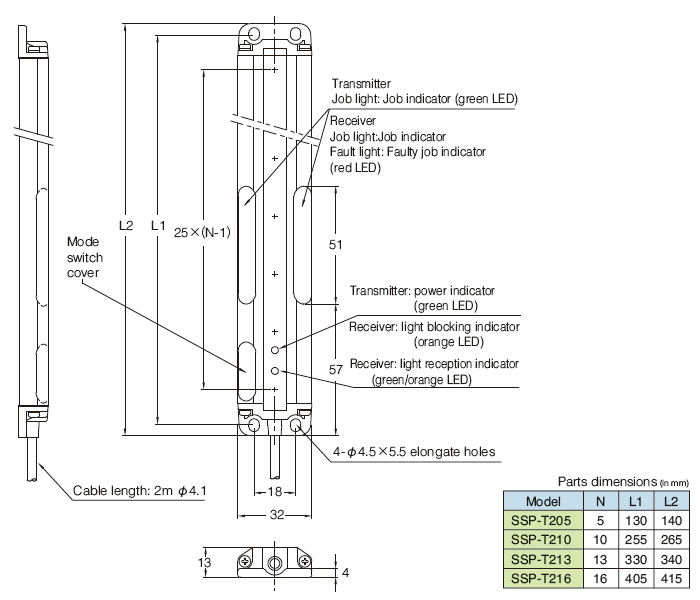

SSP-T200 series

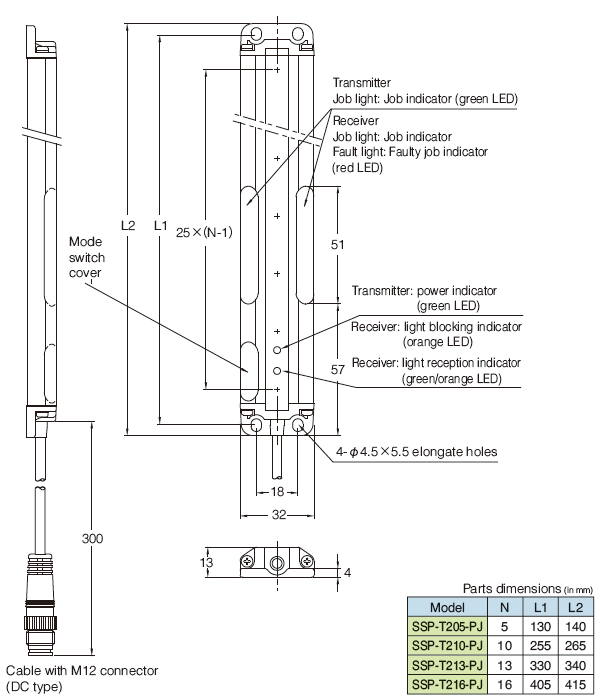

SSP-T200-PJ series

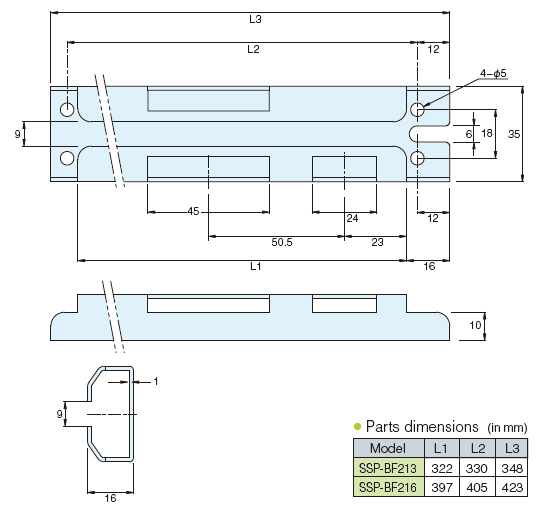

Protective cover

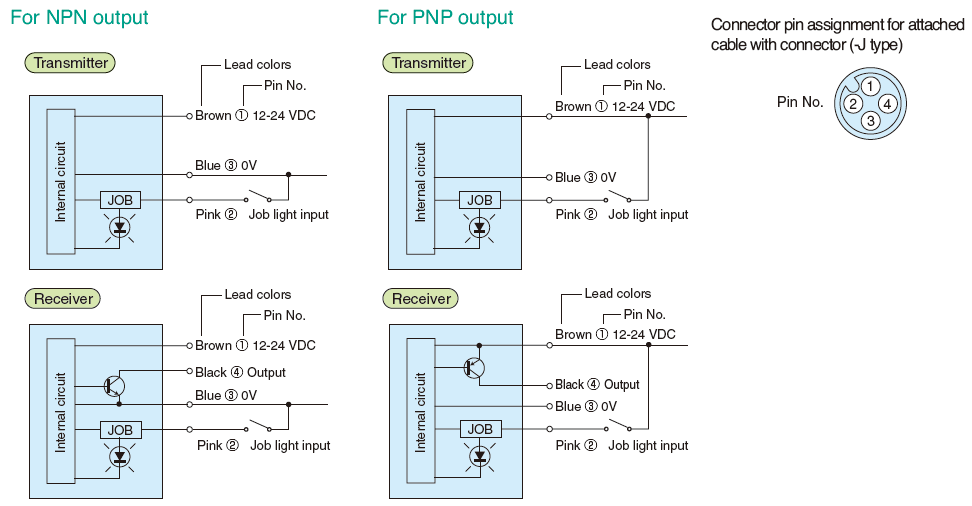

Circuit

Use the mode switch to select NPN/PNP for output and job indicator input.

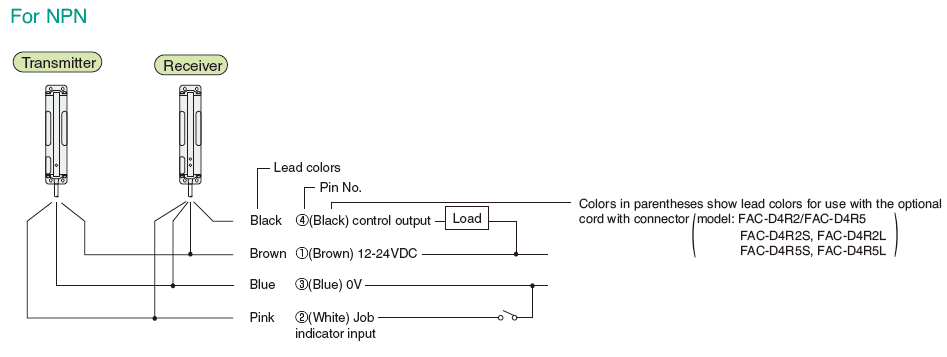

Connection

  • Cable extension
    To extend the cable, use wires of at least 0.5mm^2 and limit the length to within 100m for transmitter and receiver.

Automobile

Picking sensor

A picking sensor for verifying and showing that parts have been taken out.Provided with a large job-light allowing high visibility with a rigid thin metal body of 13mm.

Option

Mounting bracket

オプション写真

Dedicated mounting bracketSSP-B1

dimLink
Description Mounting bracket
Shape Flat
Description Two pieces as one set
(M4 x 12 SEMS screws with washers and nuts)
Two sets are necessary; one set is for transmitter and the other for receiver.
オプション写真

Dedicated mounting bracketSSP-B2

dimLink

Cable with connector

オプション写真

Cable with connectorFAC-D4R2S

dimLink
Description Cable with connector (Straight type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 2m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 2m
オプション写真

Cable with connectorFAC-D4R2L

dimLink
Description Cable with connector (Angle type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 2m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 2m
オプション写真

Cable with connectorFAC-D4R5S

dimLink
Description Cable with connector (Straight type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 5m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 5m
オプション写真

Cable with connectorFAC-D4R5L

dimLink
Description Cable with connector (Angle type)
Application model All connector type models
Description M12 Outer diameter : 6mm
Cable 0.3mm2 x 4 cores 5m (sheath : black)
(Two pieces are necessary; one is for transmitter and the other for receiver.)
Cable length 5m

Protective cover

オプション写真

Protective coverSSP-BF213

Description Protective cover
Description One piece
Two pieces are necessary; one is for transmitter and the other for receiver.
オプション写真

Protective coverSSP-BF216

Description Protective cover
Description One piece
Two pieces are necessary; one is for transmitter and the other for receiver.

Mounting bracket

オプション写真

Mounting bracketSSP-BR1

dimLink
オプション写真

Mounting bracketSSP-BR2

dimLink
