NE Series

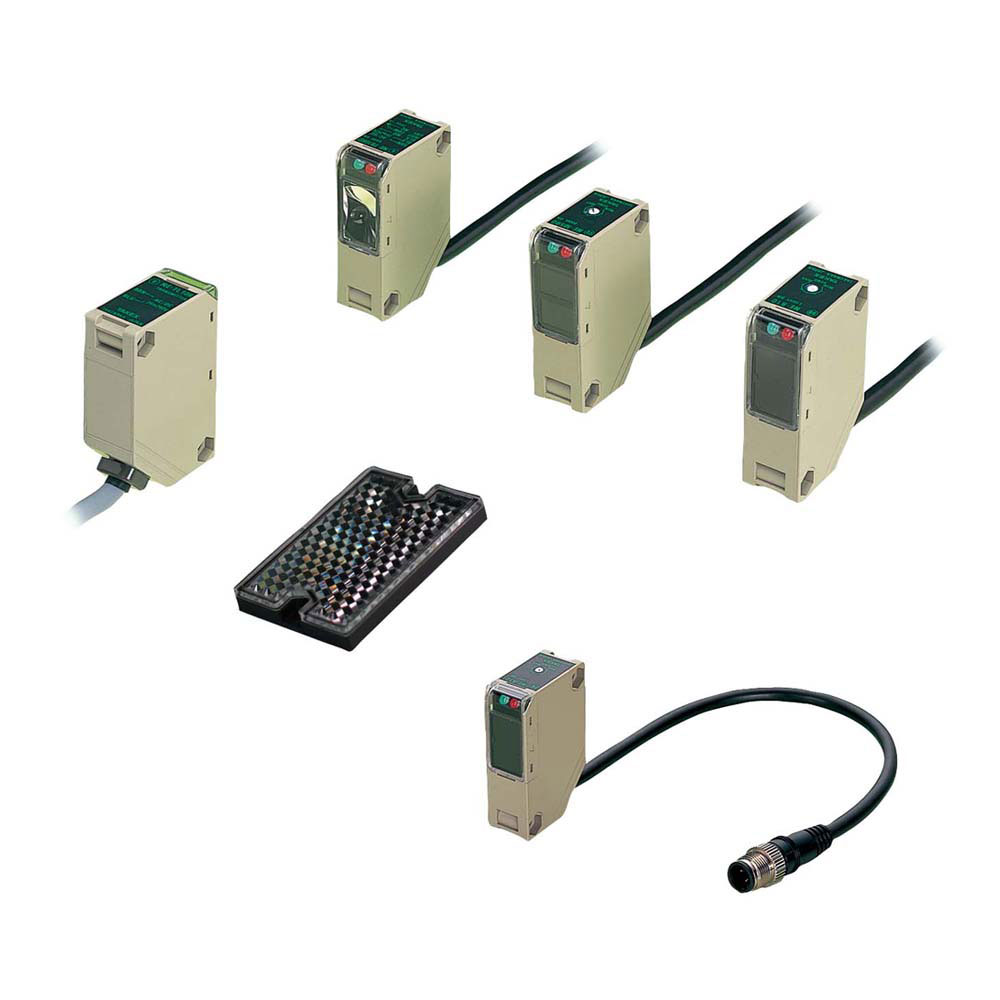

Ultra compact AC/DC Power Supply Photo Sensors

NE Series
  • Ultimate simplicity
  • Smallest of all AC/DC power supply models (18×55×35㎜)
    • Longest-in-class detecting distance for accurate detection
    • Polarized retroreflective type allows stable detection of mirror-like objects
    • Red LED for easy adjustment (through beam type, polarized retroreflective type)
    • Dramatically improved stability with original photo IC
    • Capable of adjacent installation with polarizing filter (optional) (through beam type)

NE Series Lineups

Model Power supply Detection method Detecting distance min (mm) Detecting distance (mm) Control output Operation mode Light source Protective structure Connection Download
NE-T10RD
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Dark on Red LED IP66 Attached cable
NE-T10R
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Light on Red LED IP66 Attached cable
NE-T10RD-J
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Dark on Red LED IP66
NE-T10R-J
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Light on Red LED IP66
NE-T30D
仕様を見る 		AC/DC24 to 240V Through beam 30000.00 Relay Dark on Infrared LED IP66 Attached cable
NE-T30
仕様を見る 		AC/DC24 to 240V Through beam 30000.00 Relay Light on Infrared LED IP66 Attached cable
NE-T30D-J
仕様を見る 		AC/DC24 to 240V Through beam 30000.00 Relay Dark on Infrared LED IP66
NE-T30-J
仕様を見る 		AC/DC24 to 240V Through beam 30000.00 Relay Light on Infrared LED IP66
NE-M5RD
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 5000.00 Relay Dark on Red LED IP66 Attached cable
NE-M5R
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 5000.00 Relay Light on Red LED IP66 Attached cable
NE-M5RD-J
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 5000.00 Relay Dark on Red LED IP66
NE-M5R-J
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 5000.00 Relay Light on Red LED IP66
NE-R10D
仕様を見る 		AC/DC24 to 240V Diffuse reflective 1000.00 Relay Dark on Infrared LED IP66 Attached cable
NE-R10
仕様を見る 		AC/DC24 to 240V Diffuse reflective 1000.00 Relay Light on Infrared LED IP66 Attached cable
NE-R10D-J
仕様を見る 		AC/DC24 to 240V Diffuse reflective 1000.00 Relay Dark on Infrared LED IP66
NE-R10-J
仕様を見る 		AC/DC24 to 240V Diffuse reflective 1000.00 Relay Light on Red LED IP66

Dimension

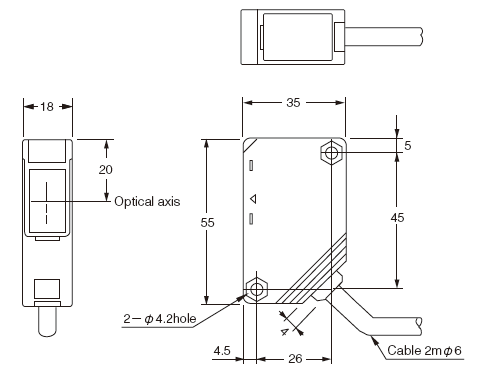

Cable type

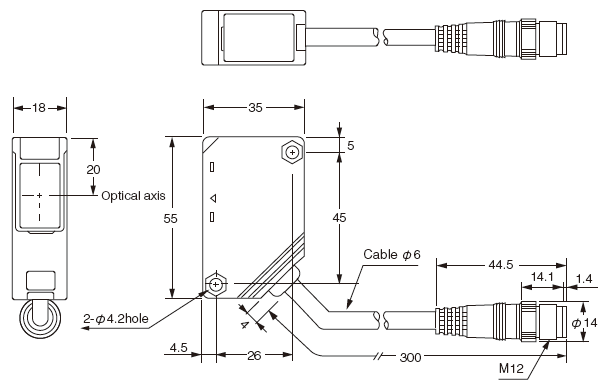

Attached cable with connector (-J) type

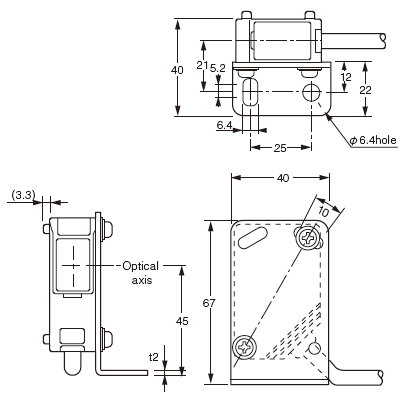

With mounting bracket NE-B1 attached (vertical)

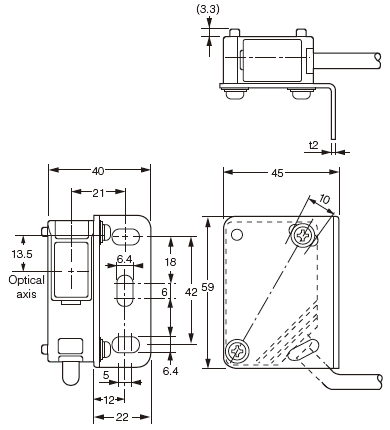

With mounting bracket NE-B2 attached (vertical)

  • The NE Series sensors are not provided with mounting brackets, however two types of brackets are available as an option. (Bolts and nuts for mounting are provided with an optional mounting bracket)
  • The tightening torque for the sensor body and mounting bracket should be 0.8 N m max.

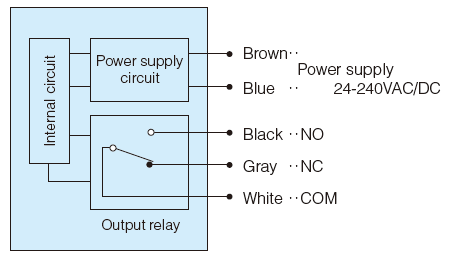

Circuit

Transmitter of the through beam type only has power supply lines.

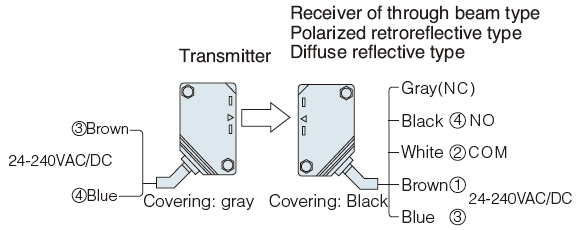

Connection

  • Circled numbers show connector pin Nos. for -J type
  • The output of -J type is 1a.

Metal processing

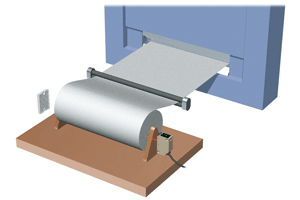

Detection of remaining amount of coiled material

Remaining amount of coiled material is checked to preven operation without material and also for material joining.

Delivery/Transportation

Detection of a vehicle in a multilevel parking garage.

Detecting the protrusion of a vehicle in a multilevel parking garage hanger.

Option

Pinhole plate

オプション写真

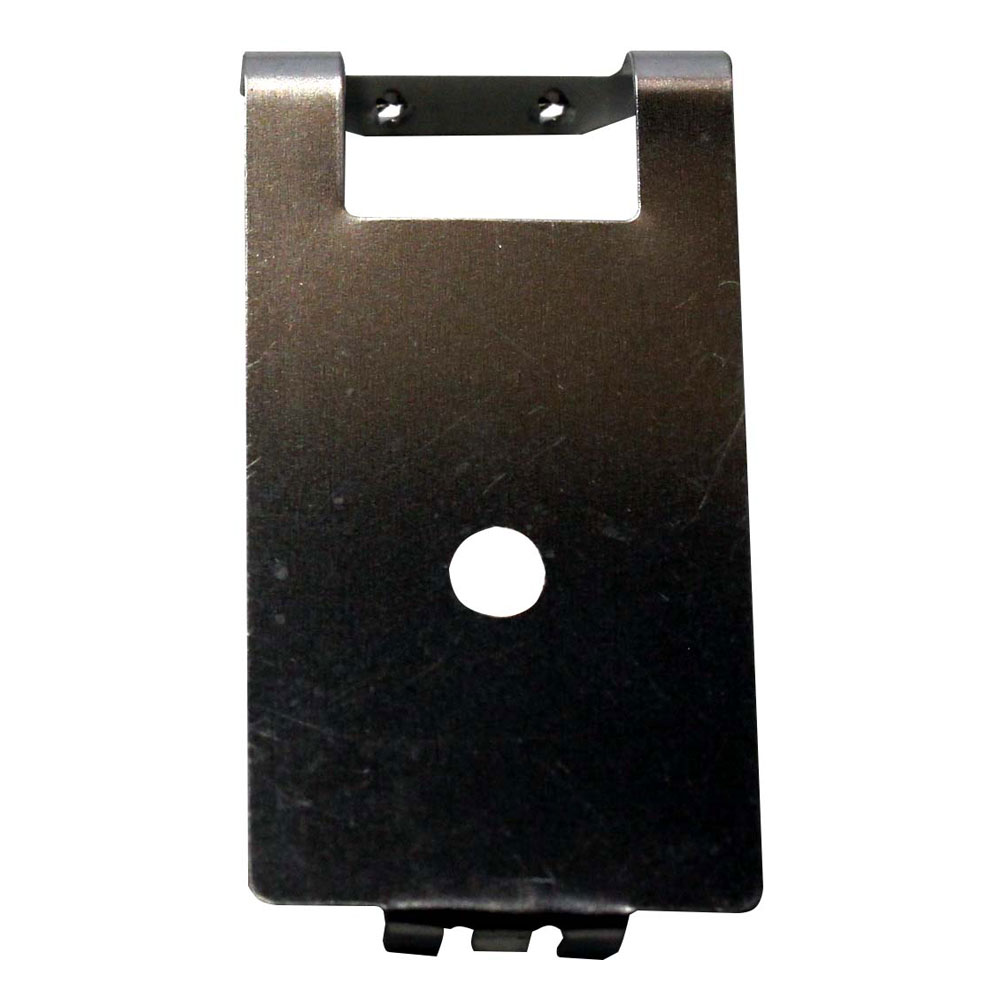

Pinhole plateNE-P3
Description Pinhole plate
Pinhole diameter 3mm
Description Pinhole plate
Detecting distance NE-T10RD(D) : 1m
NE-T30D(D) : 3m
Applicable model NE-T10RD-DC, NE-T10R-DC
NE-T10RD-DC-J, NE-T10R-DC-J
NE-T30D-DC, NE-T30-DC
NE-T30D-DC-J, NE-T30-DC-J
オプション写真

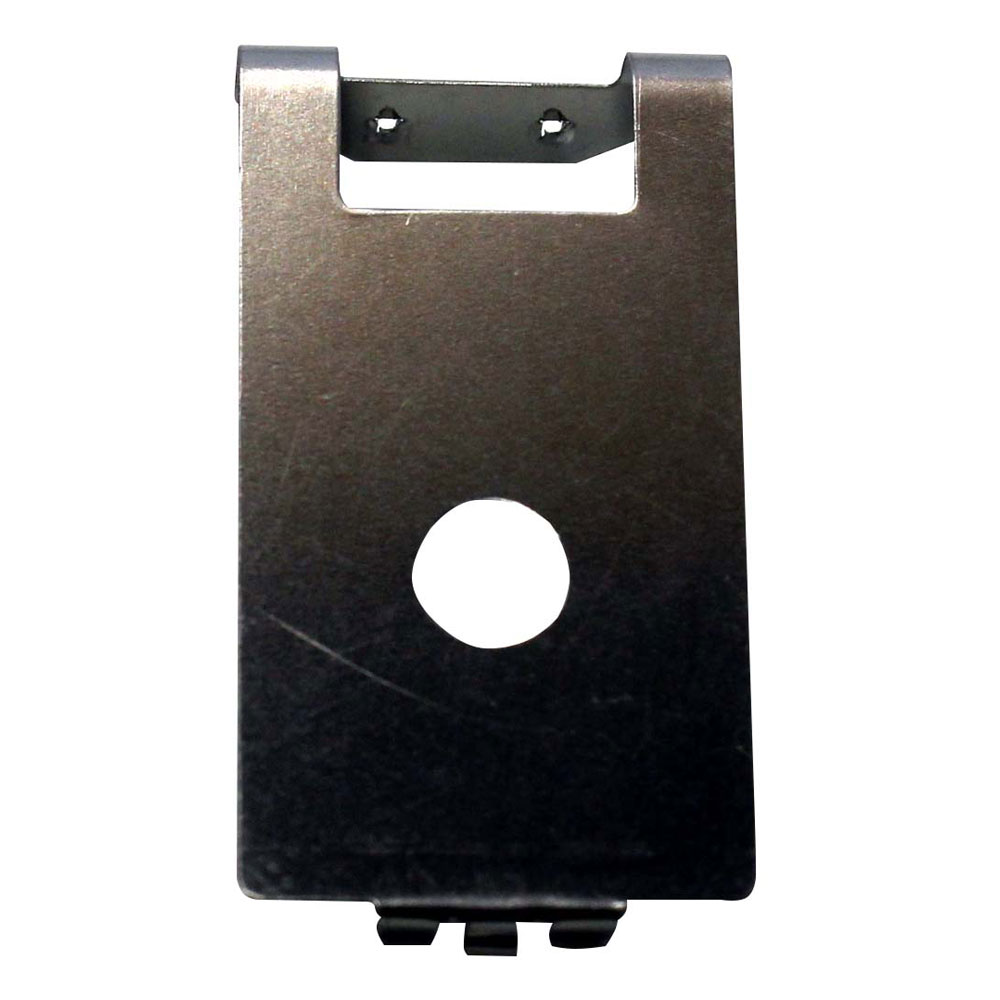

Pinhole plateNE-P5
Description Pinhole plate
Pinhole diameter 5mm
Detecting distance NE-T10RD(D) : 3m
NE-T30D(D) : 7m
Applicable model NE-T10RD-DC, NE-T10R-DC
NE-T10RD-DC-J, NE-T10R-DC-J
NE-T30D-DC, NE-T30-DC
NE-T30D-DC-J, NE-T30-DC-J
オプション写真

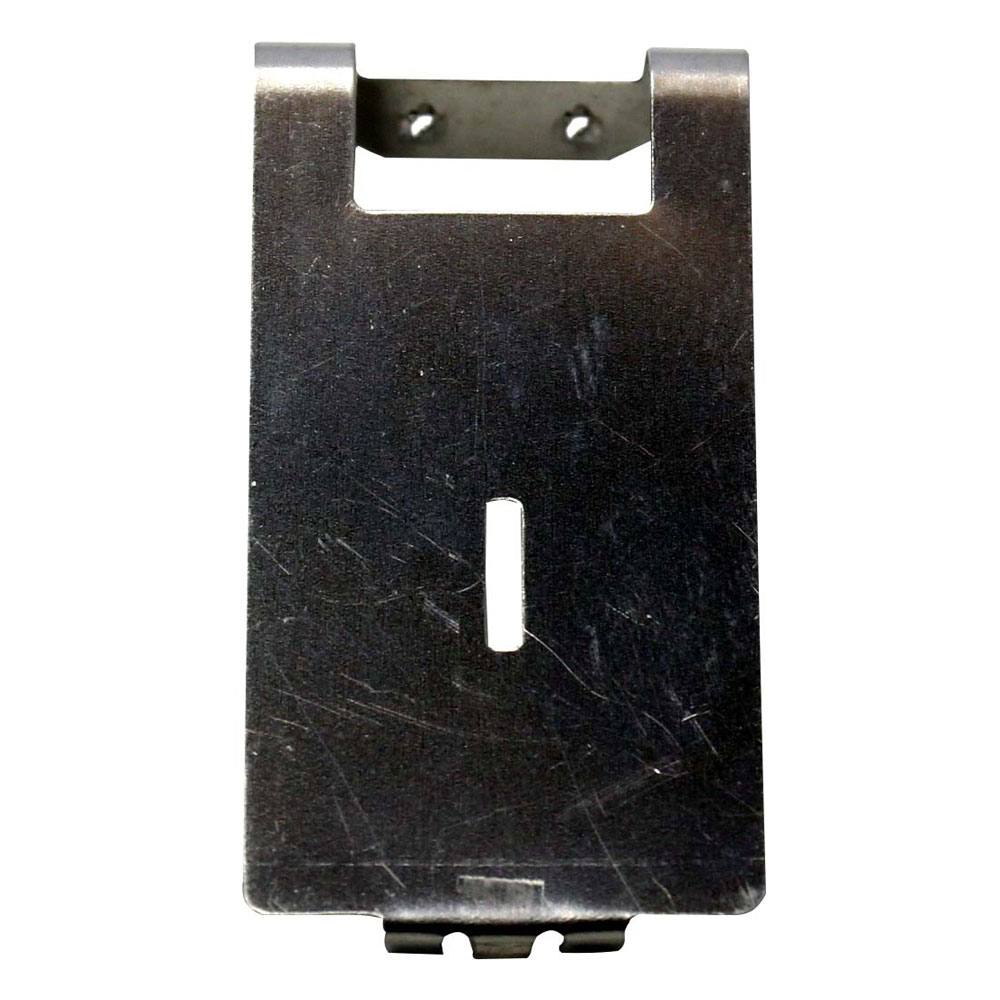

Pinhole plateNE-P5X1
Description Pinhole plate
Pinhole diameter 5X1mm
Detecting distance NE-T10RD(D) : 0.7m
NE-T30D(D) : 2m
Applicable model NE-T10RD-DC, NE-T10R-DC
NE-T10RD-DC-J, NE-T10R-DC-J
NE-T30D-DC, NE-T30-DC
NE-T30D-DC-J, NE-T30-DC-J

Reflector

オプション写真

ReflectorK-71

dimLink
Effective reflecting surface Approx. 30X18mm
Protective structure IP67
Mounting sedured with M3 screws (alternatively adhesive may be used)
Materials Mirror : acrylic, Base : heat resistant ABS
Accessories Screw : 2, Nut : 2
Dimensions 43X23mm
Detectjing object Opaque object of dia. 40mm
Detecting distance 0.1 - 2m
Detecting distance 0.03 - 2m
Applicable model NE2-M10R, NE2M10R-J
オプション写真

ReflectorS-510G

dimLink
Effective reflecting surface 100X50mm
Description Reflector
Mounting Pasted, adhesive on back side
Detecting distance 0.1 - 3m
Applicable model NE-M5RD-DC, NE-M5R-DC
NE-M5RD-DC-J, NE-M5R-DC-J

Interference prevention filter

オプション写真

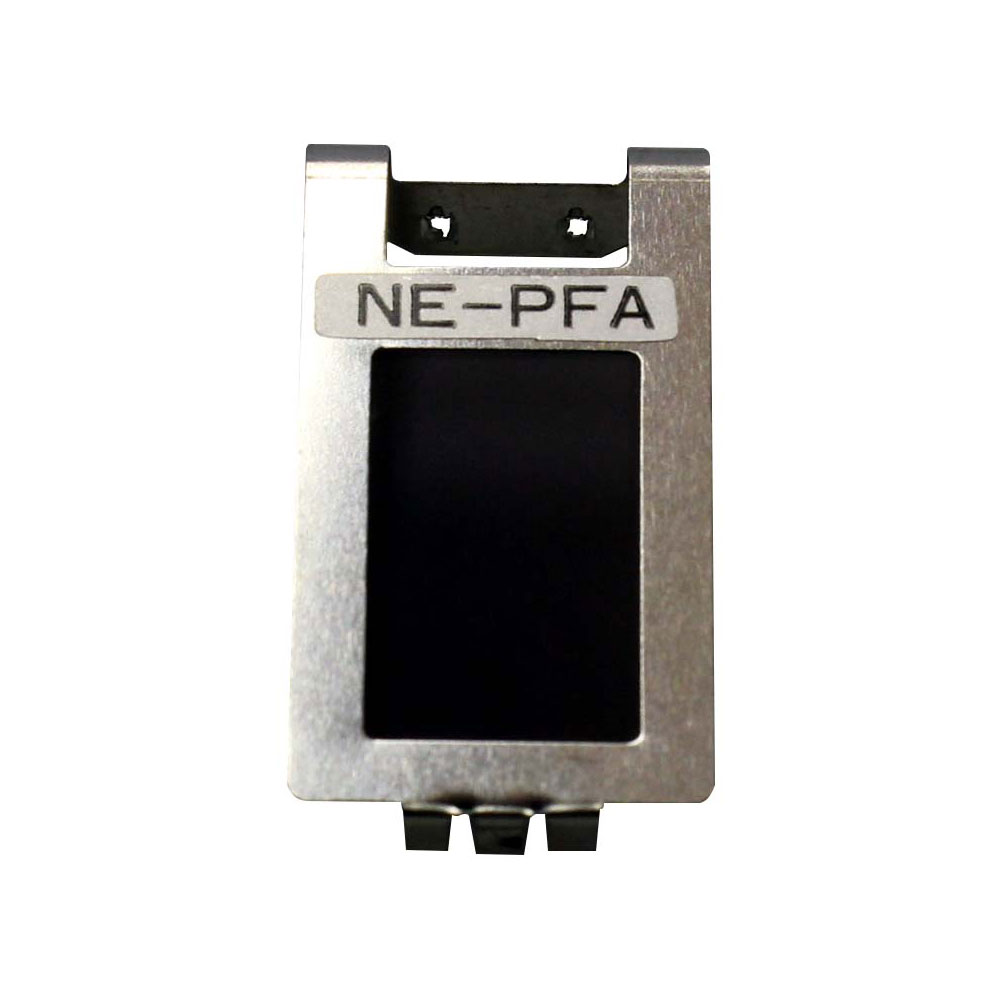

Interference prevention filterNE-PFA
Description Longitudinal polarization filter
Applicable model NE-T10RD-DC, NE-T10R-DC
NE-T10RD-DC-J, NE-T10R-DC-J
オプション写真

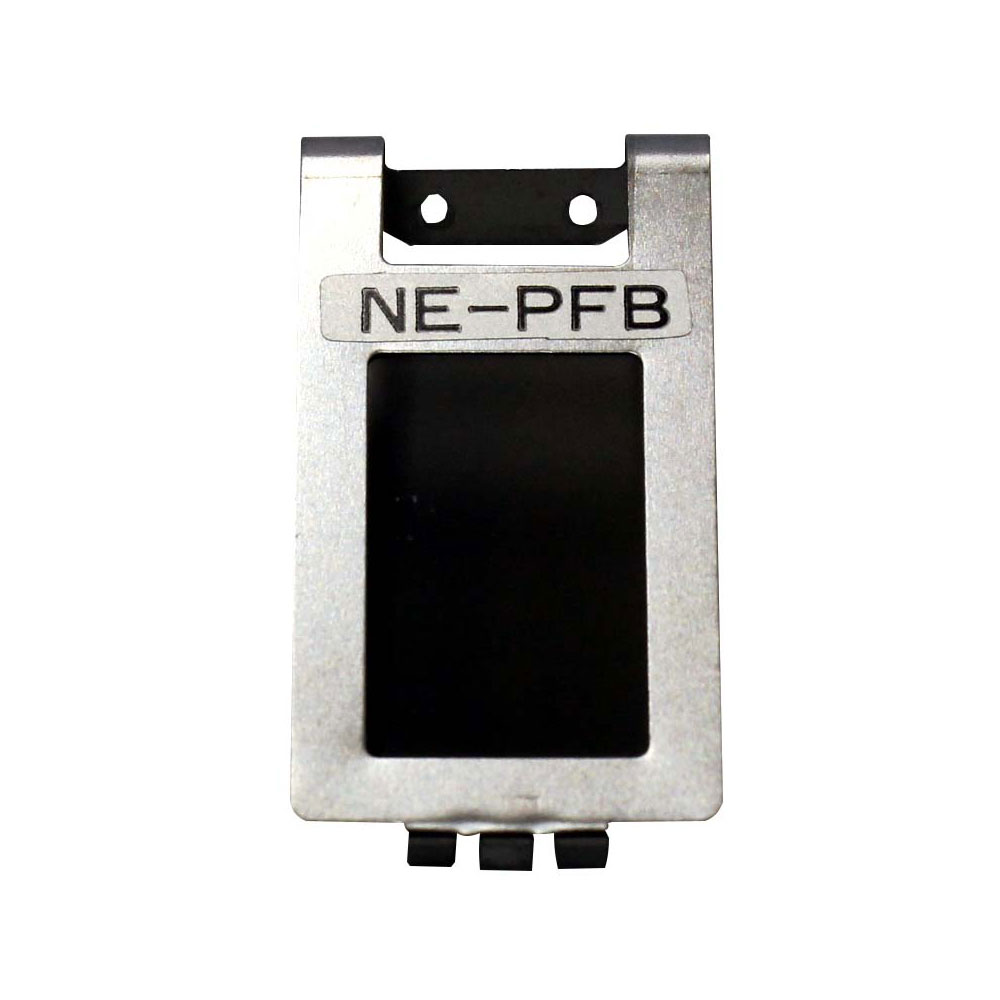

Interference prevention filterNE-PFB
Description Transverse polarization filter
Applicable model NE-T10RD-DC, NE-T10R-DC
NE-T10RD-DC-J, NE-T10R-DC-J

Mounting bracket

オプション写真

Mounting bracketNE-B1

dimLink
Description For vertical mounting
Applicable model All models
Accessories Screw : 2, Nut : 2
Materials SUS
オプション写真

Mounting bracketNE-B2

dimLink
Description For mounting on the back
Applicable model All models
Accessories Screw : 2, Nut : 2
Materials SUS

Cable with connector

オプション写真

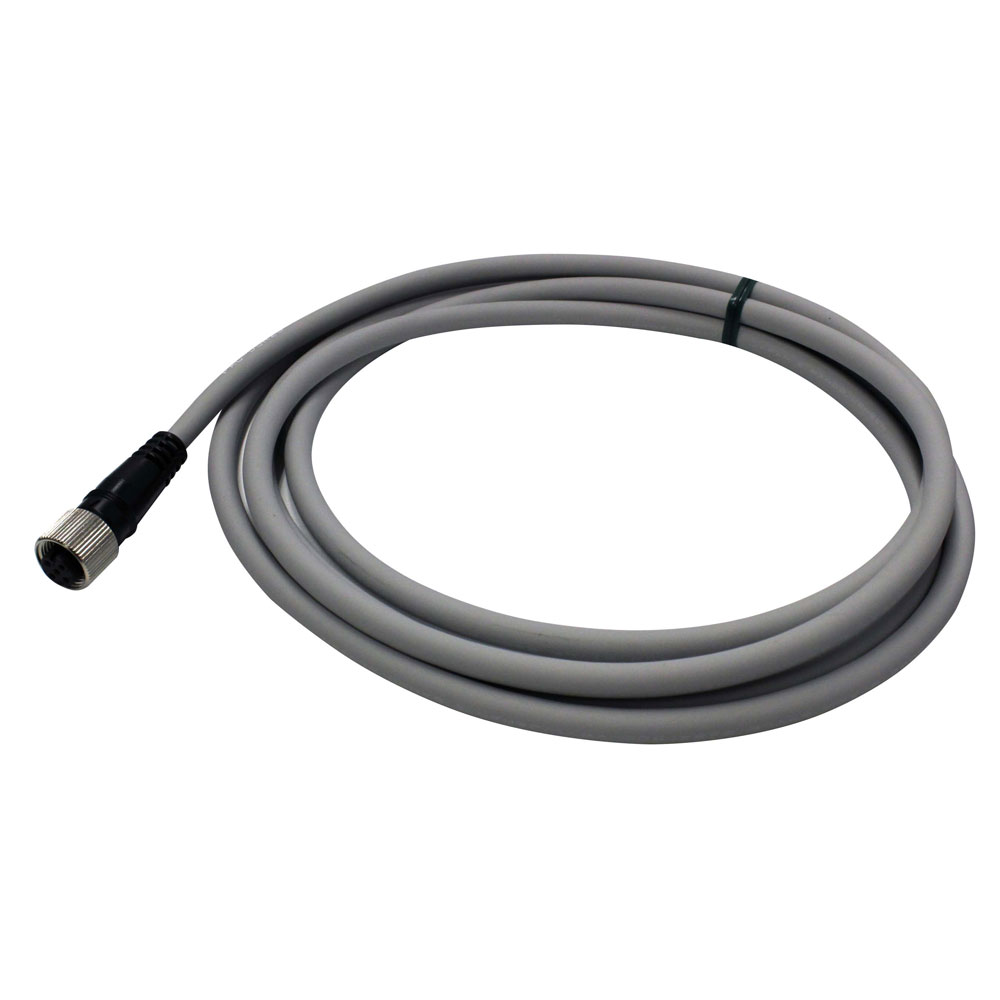

Cable with connectorFAC-A2R2
Description Cable with connector
Application model NE-TL10R
NE-TL30
Connection Attached cable with connector (-J)
Use For transmitter of through beam type
Cable length 2m
オプション写真

Cable with connectorFAC-A2R5
Description Cable with connector
Application model NE-TL10R
NE-TL30
Connection Attached cable with connector (-J)
Use For transmitter of through beam type
Cable length 5m
オプション写真

Cable with connectorFAC-A4R2
Description Cable with connector
Application model NE-TR10R (D)
NE-TR30 (D)
NE-M5R (D)
NE-R10
Connection Attached cable with connector (-J)
Use For receiver of through beam type, polarization reflector type, diffuse reflective type
Cable length 2m
オプション写真

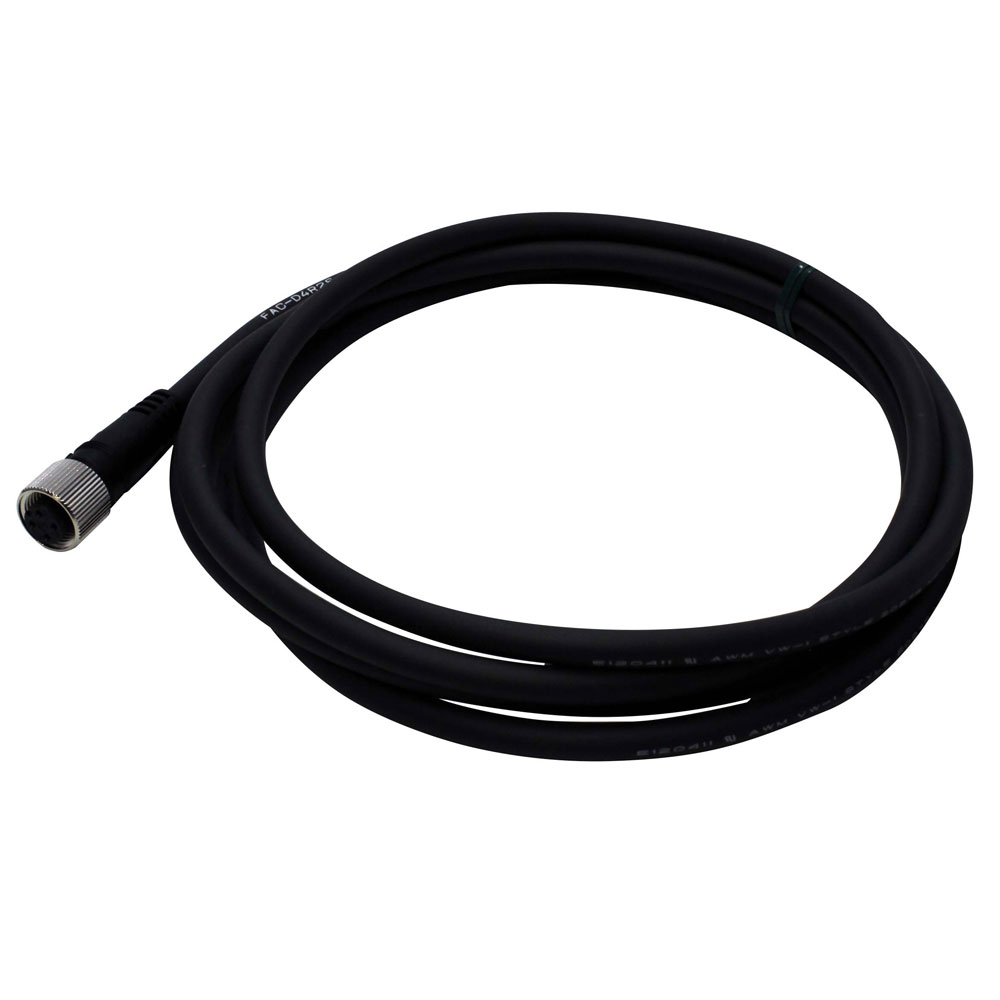

Cable with connectorFAC-A4R5
Description Cable with connector
Application model NE-TR10R (D)
NE-TR30 (D)
NE-M5R (D)
NE-R10
Connection Attached cable with connector (-J)
Use For receiver of through beam type, polarization reflector type, diffuse reflective type
Cable length 5m
