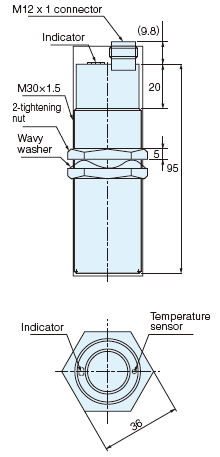

USA-S1AN

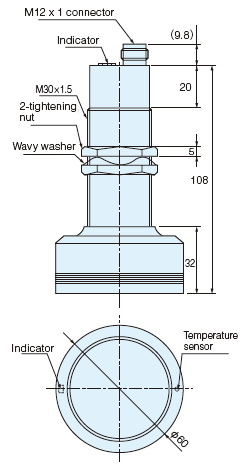

USA-S3MAN

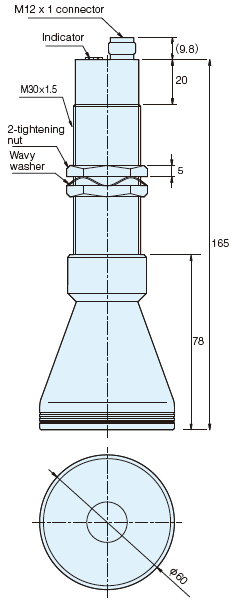

USA-S6AN

For measurement

Control of roll thickness

Good for dust proofing in a dusty workshop.

• Ultrasonic analogue sensor USA-S1AN

Drum rotation control

Rotational speed of drum for winding or unwinding sheet material controlled.

• Ultrasonic sensor USA-S1AN

Attachments

	Attachments (applicable to USA-S1AN)USA-WG08FS	Description Wave guide (Straight) Detecting distance (*) 0 - 300mm (with pipe length 100 mm) 0 - 200mm (with pipe length 150 mm) 0 - 100mm (with pipe length 200 mm) (*) Detecting distance depends on the length of pipe. Pipe length Pipe can be cut freely on the sensor side. *1 Standard detection object 100X100 mm t = 2 mm aluminum plate Materials Pipe : Copper (nickel plated) Clamp : Polyacetal resin Locking ring : Brass (nickel plated) Applicable sensor USA-S1AN Note *1 Retain the length of the pipe longer than 100mm when cutting. Otherwise, the detection may be unstable.
	Attachments (applicable to USA-S1AN)USA-WG08FL	Description Wave guide (Angle) Detecting distance (*) 0 - 100mm (with pipe length 100 mm) 0 - 75mm (with pipe length 150 mm) 0 - 50mm (with pipe length 200 mm) (*) Detecting distance depends on the length of pipe. Pipe length Pipe can be cut freely on the sensor side. *1 Standard detection object 100X100 mm t = 2 mm aluminum plate Materials Pipe : Copper (nickel plated) Clamp : Polyacetal resin Locking ring : Brass (nickel plated) Applicable sensor USA-S1AN Note *1 Retain the length of the pipe longer than 100mm when cutting. Otherwise, the detection may be unstable.
	Attachments (applicable to USA-S1AN)USA-WR	Description Wave reflector Detecting distance 65 - 965 mm Detection object 100X100 mm t = 2 mm aluminum plate Materials Body : Polyacetal Locking ring : Brass (nickel plated) Applicable sensor USA-S1AN

Cable with connector

	Cable with connectorFAC-D4R2S	Description Cable with connector (Straight type) Application model All connector type models Description M12 Outer diameter : 6mm Cable 0.3mm2 x 4 cores 2m (sheath : black) (Two pieces are necessary; one is for transmitter and the other for receiver.) Cable length 2m
	Cable with connectorFAC-D4R5S	Description Cable with connector (Straight type) Application model All connector type models Description M12 Outer diameter : 6mm Cable 0.3mm2 x 4 cores 5m (sheath : black) (Two pieces are necessary; one is for transmitter and the other for receiver.) Cable length 5m
	Cable with connectorFAC-D4R2L	Description Cable with connector (Angle type) Application model All connector type models Description M12 Outer diameter : 6mm Cable 0.3mm2 x 4 cores 2m (sheath : black) (Two pieces are necessary; one is for transmitter and the other for receiver.) Cable length 2m
	Cable with connectorFAC-D4R5L	Description Cable with connector (Angle type) Application model All connector type models Description M12 Outer diameter : 6mm Cable 0.3mm2 x 4 cores 5m (sheath : black) (Two pieces are necessary; one is for transmitter and the other for receiver.) Cable length 5m
