UM Series
Ultra Miniature Embedded Amplifier Photo Sensors
- Ultra miniature size (extra thin, extra compact)
- Long distance detecting up to 1 m
- Ideal for integrating into small devices
- Thinness of 3.5 mm achieved with embedded amplifier type!
Extremely small volume: less than 0.8 cm^3
Volume fraction: about 1/5 (to conventional Takex product) - Low cost
- Red LED light source allows checking of emitted light spot
- Equipped with stability and operation indicators
- Wide range of applications from small-scale FA to system wide FA
- Thinness of 3.5 mm achieved with embedded amplifier type!
- Standard・Official Approval
-
UM Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
UM-T15T
|
Through beam | 150.00 | NPN | Light on | Red LED | IP64 | Attached cable | |||
|
UM-T15DT
|
Through beam | 150.00 | NPN | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T15TV
|
Through beam | 150.00 | NPN | Light on | Red LED | IP64 | Attached cable | |||
|
UM-T15DTV
|
Through beam | 150.00 | NPN | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T15DTVP
|
Through beam | 150.00 | PNP | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50DT
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50DTP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50TV
|
Through beam | 500.00 | NPN | Light on | Red LED | IP64 | Attached cable | |||
|
UM-T50DTV
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50DTVP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50S
|
Through beam | 500.00 | NPN | Light on | Red LED | IP64 | Attached cable | |||
|
UM-T50SP
|
Through beam | 500.00 | PNP | Light on | Red LED | IP64 | Attached cable | |||
|
UM-T50DS
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50DSP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50SV
|
Through beam | 500.00 | NPN | Light on | Red LED | IP64 | Attached cable | |||
|
UM-T50SVP
|
Through beam | 500.00 | PNP | Light on | Red LED | IP64 | Attached cable | |||
|
UM-T50DSV
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T50DSVP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP64 | Attached cable | |||
|
UM-T100T
|
Through beam | 1000.00 | NPN | Light on | Infrared LED | IP64 | Attached cable | |||
|
UM-T100TP
|
Through beam | 1000.00 | PNP | Light on | Infrared LED | IP64 | Attached cable | |||
|
UM-T100DT
|
Through beam | 1000.00 | NPN | Dark on | Infrared LED | IP64 | Attached cable | |||
|
UM-T100DTP
|
Through beam | 1000.00 | PNP | Dark on | Infrared LED | IP64 | Attached cable | |||
|
UM-T100S
|
Through beam | 1000.00 | NPN | Light on | Infrared LED | IP64 | Attached cable | |||
|
UM-T100DS
|
Through beam | 1000.00 | NPN | Light on | Infrared LED | IP64 | Attached cable | |||
|
UM-R3T
|
Diffuse reflective | 2.00 | 30.00 | NPN | Light on | Red LED | IP64 | Attached cable | ||
|
UM-R3TP
|
Diffuse reflective | 2.00 | 30.00 | PNP | Light on | Red LED | IP64 | Attached cable | ||
|
UM-R3DT
|
Diffuse reflective | 2.00 | 30.00 | NPN | Dark on | Red LED | IP64 | Attached cable | ||
|
UM-R3TV
|
Diffuse reflective | 2.00 | 30.00 | NPN | Light on | Red LED | IP64 | Attached cable | ||
|
UM-R3TVP
|
Diffuse reflective | 2.00 | 30.00 | PNP | Light on | Red LED | IP64 | Attached cable | ||
|
UM-R3DTV
|
Diffuse reflective | 2.00 | 30.00 | NPN | Dark on | Red LED | IP64 | Attached cable | ||
|
UM-R5T
|
Diffuse reflective | 2.00 | 50.00 | NPN | Light on | Red LED | IP64 | Attached cable | ||
|
UM-R5DT
|
Diffuse reflective | 2.00 | 50.00 | NPN | Dark on | Red LED | IP64 | Attached cable | ||
|
UM-R5TV
|
Diffuse reflective | 2.00 | 50.00 | NPN | Light on | Red LED | IP64 | Attached cable | ||
|
UM-R5TVP
|
Diffuse reflective | 2.00 | 50.00 | PNP | Light on | Red LED | IP64 | Attached cable | ||
|
UM-R5DTV
|
Diffuse reflective | 2.00 | 50.00 | NPN | Dark on | Red LED | IP64 | Attached cable | ||
|
UM-Z3SV
|
Convergent reflective | 5.00 | 30.00 | NPN | Light on | Red LED | IP64 | Attached cable | ||
|
UM-Z3SVP
|
Convergent reflective | 5.00 | 30.00 | PNP | Light on | Red LED | IP64 | Attached cable | ||
|
UM-Z3DSV
|
Convergent reflective | 5.00 | 30.00 | NPN | Dark on | Red LED | IP64 | Attached cable | ||
|
UM-T50T
|
Through beam | 500.00 | NPN | Light on | Red LED | IP64 | Attached cable |
Feature

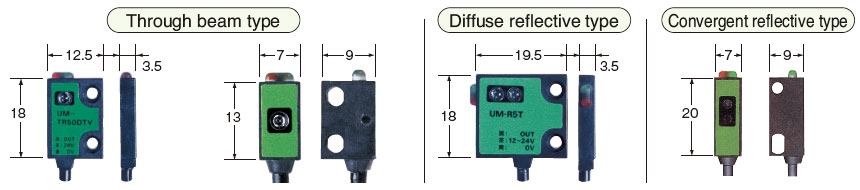

Ultra miniature size (extra thin, extra compact)
Dimension

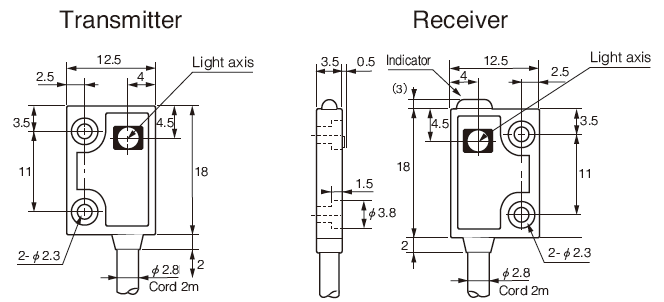

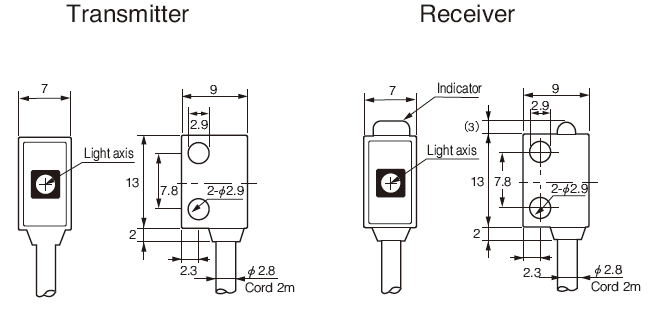

UM-T15DT
UM-T15DTV(

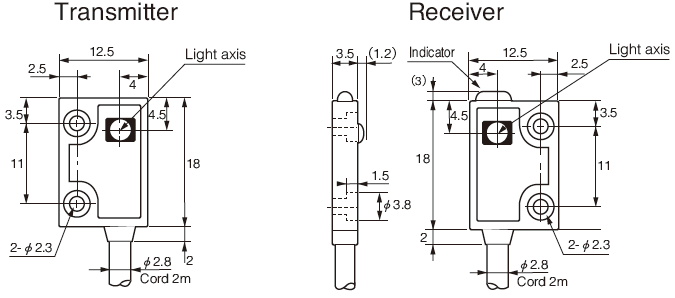

UM-T50DT
UM-T50DS
UM-T100DS

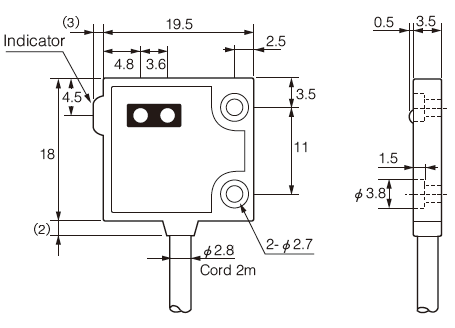

UM-R3T
UM-R3TV(

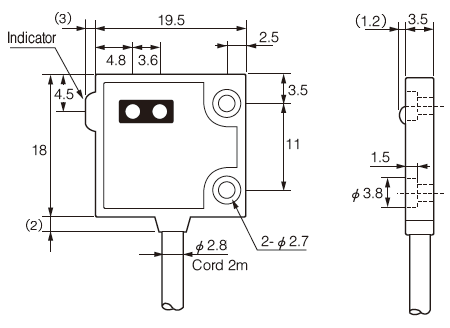

UM-R5T
UM-R5TV(

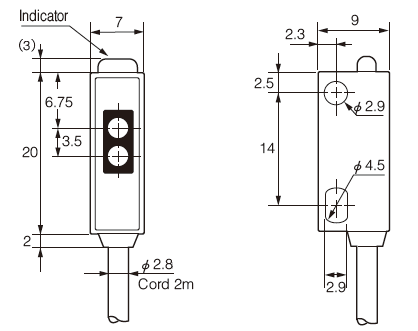

UM-Z3SV(

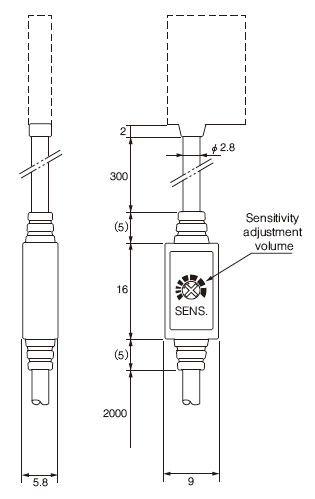

(*1) Models identified by a "V" at the end of the model number are equipped with a sensitivity adjustment volume. The volume of
- Directly screw onto the surface for mounting.
- The tightening torque should not exceed 0.3 N m.
- Mounting brackets (model : UM-V1) are available as optional parts.
Circuit

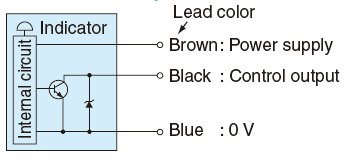

NPN output

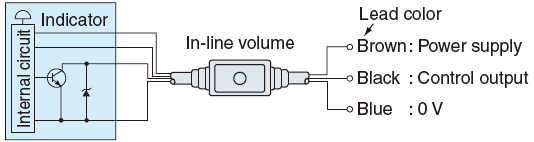

NPN output in-line sensitivity adjustment

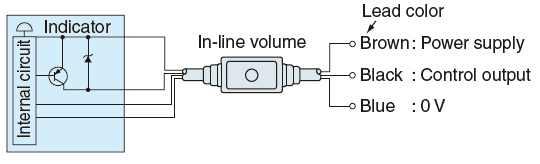

PNP output in-line sensitivity adjustment
(Shows receiver of through-beam type as typical example. Power supply for reflective type: 12-24 VDC.)
* The transmitter of through beam type has power supply cable only (brown: 24 VDC, blue: 0V).
Semiconductor
Detection of ICs in transparent sticks
Ultra-thin sensor fitting in space between sticks.
Metal processing
Use in chip mounters for PCB detection
The thin sensor can be mounted in a confined space.
Electronic Component Mounting
PCB detection
Ultra thin sensor allowing to conserve installation space.
Consumer electronics/OA
FAX arrival notification
FAX arrival detected at delivery point and then reported.
