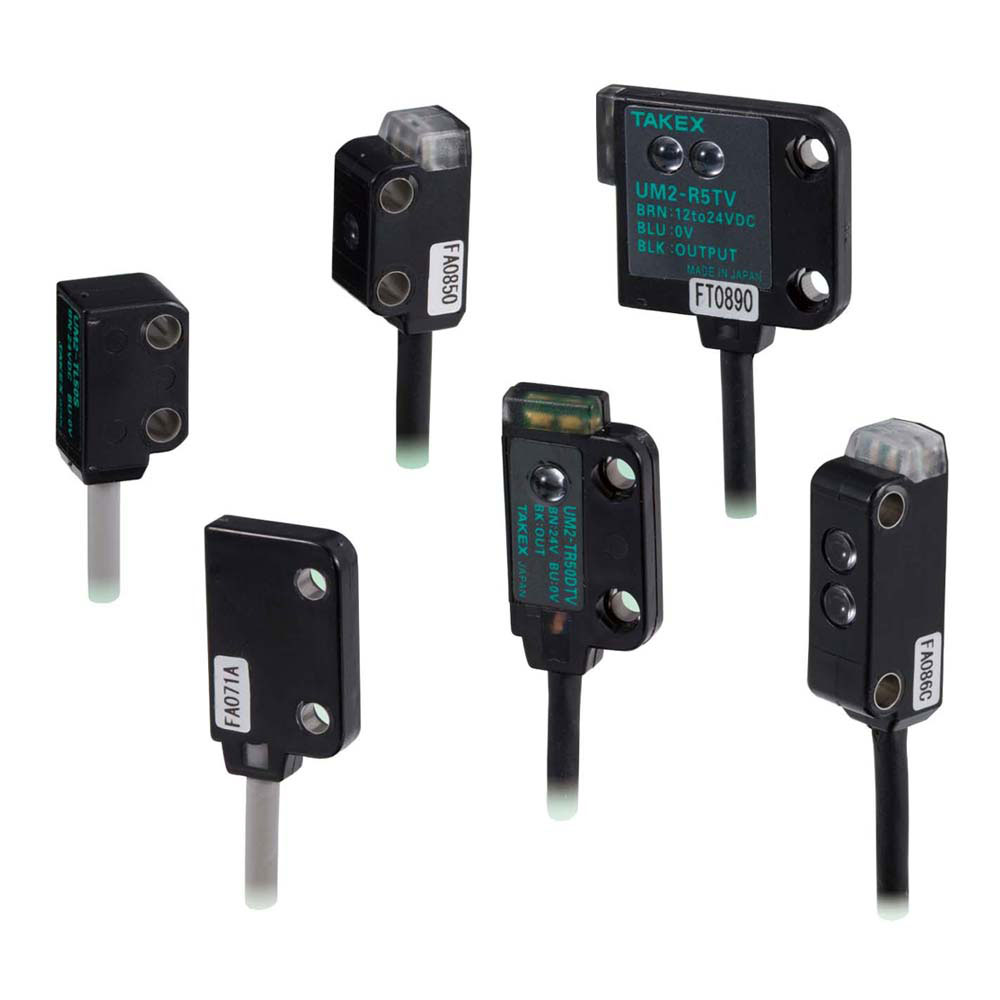

UM2 Series
Ultra Miniature Embedded Amplifier Photo Sensors
- Highly advanced type of ultra miniature sensor
- High intensity indicator and red LED light source
Allows long distance checking of both sensor operation and light transmission. - NPN and PNP output types are available
- Excellent water resistance complying with the IP 67 standard
Sensor can be washed with water.
- Standard・Official Approval
-
UM2 Series Lineups
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | Download |
|---|---|---|---|---|---|---|---|---|---|---|
UM2-T15T
|
Through beam | 150.00 | NPN | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T15TP
|
Through beam | 150.00 | PNP | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T15DT
|
Through beam | 150.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T15DTP
|
Through beam | 150.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T15TV
|
Through beam | 150.00 | NPN | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T15TVP
|
Through beam | 150.00 | PNP | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T15DTV
|
Through beam | 150.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T15DTVP
|
Through beam | 150.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50T
|
Through beam | 500.00 | NPN | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50TP
|
Through beam | 500.00 | PNP | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DT
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DTP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50TV
|
Through beam | 500.00 | NPN | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50TPV
|
Through beam | 500.00 | PNP | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DTV
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DTVP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50S
|
Through beam | 500.00 | NPN | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50SP
|
Through beam | 500.00 | PNP | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DS
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DSP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50SV
|
Through beam | 500.00 | NPN | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50SVP
|
Through beam | 500.00 | PNP | Light on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DSV
|
Through beam | 500.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-T50DSVP
|
Through beam | 500.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
|
UM2-R3T
|
Diffuse reflective | 2.00 | 30.00 | NPN | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R3TP
|
Diffuse reflective | 2.00 | 30.00 | PNP | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R3DT
|
Diffuse reflective | 2.00 | 30.00 | NPN | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-R3DTP
|
Diffuse reflective | 2.00 | 30.00 | PNP | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-R3TV
|
Diffuse reflective | 2.00 | 30.00 | NPN | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R3TVP
|
Diffuse reflective | 2.00 | 30.00 | PNP | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R3DTV
|
Diffuse reflective | 2.00 | 30.00 | NPN | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-R3DTVP
|
Diffuse reflective | 2.00 | 30.00 | PNP | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-R5T
|
Diffuse reflective | 2.00 | 50.00 | NPN | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R5TP
|
Diffuse reflective | 2.00 | 50.00 | PNP | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R5DT
|
Diffuse reflective | 2.00 | 50.00 | NPN | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-R5DTP
|
Diffuse reflective | 2.00 | 50.00 | PNP | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-R5TV
|
Diffuse reflective | 2.00 | 50.00 | NPN | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R5TVP
|
Diffuse reflective | 2.00 | 50.00 | PNP | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-R5DTV
|
Diffuse reflective | 2.00 | 50.00 | NPN | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-R5DTVP
|
Diffuse reflective | 2.00 | 50.00 | PNP | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-Z3SV
|
Convergent reflective | 5.00 | 30.00 | NPN | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-Z3SVP
|
Convergent reflective | 5.00 | 30.00 | PNP | Light on | Red LED | IP67 | Attached cable | ||
|
UM2-Z3DSV
|
Convergent reflective | 5.00 | 30.00 | NPN | Dark on | Red LED | IP67 | Attached cable | ||
|
UM2-Z3DSVP
|
Convergent reflective | 5.00 | 30.00 | PNP | Dark on | Red LED | IP67 | Attached cable |
Dimension

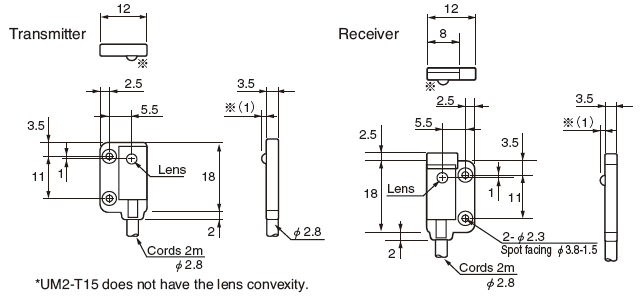

UM2-T15DT
UM2-T15DTV (sensor)
UM2-T50DT
UM2-T50DTV (sensor)
*UM2-T15 does not have the lens convexity.

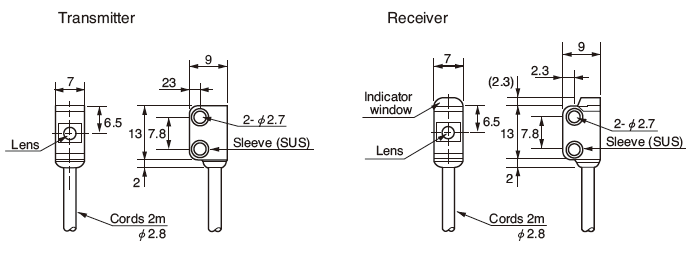

UM2-T50DS
UM2-T50DSV (sensor)

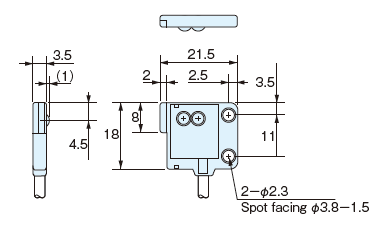

UM2-R3T
UM2-R3TV (sensor)
UM2-R5T
UM2-R5TV (sensor)

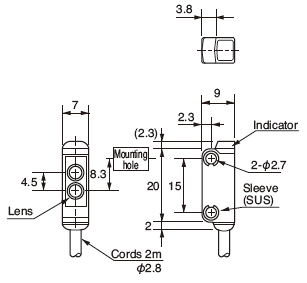

UM2-Z3SV (sensor)

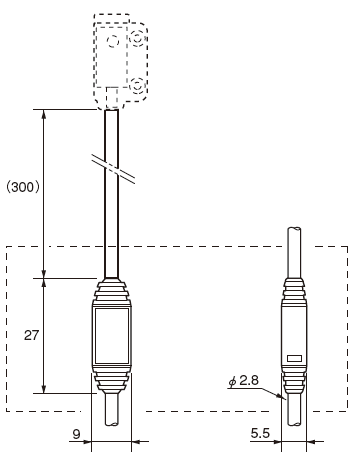

In-line sensitivity adjustment volume/PNP output conversion unit
- Provided in the receiver cord for through-beam model.
- For mounting, directly screw onto the surface.
The tightening torque should be up to 0.3 N?m.
Circuit

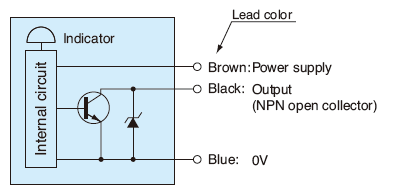

NPN output type
UM2-T15DT
UM2-T50DT
UM2-T50DS
UM2-R3T
UM2-R5T
The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.

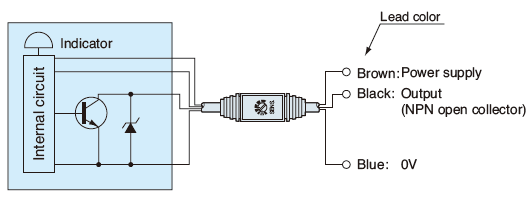

NPN output type with in-line sensitivity adjustment
UM2-T15DTV
UM2-T50DTV
UM2-T50DSV
UM2-R3TV
UM2-R5TV
UM2-Z3SV
The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.

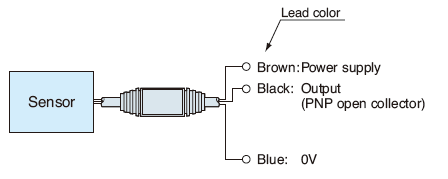

PNP output type
UM2-T15DTP
UM2-T50DTP
UM2-T50DSP
UM2-R3TP
UM2-R5TP
PNP open collector output available with in-line output conversion unit.
The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.

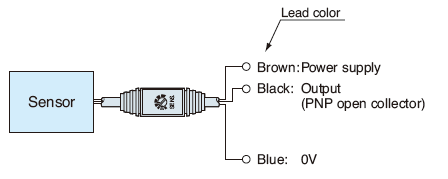

PNP output type with in-line sensitivity adjustment
UM2-T15DTVP
UM2-T50DTVP
UM2-T50DSVP
UM2-R3TVP
UM2-R5TVP
UM2-Z3SVP
PNP open collector output available with in-line volume/output conversion unit.
The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.
Semiconductor
Detection of ICs in transparent sticks
Ultra-thin sensor fitting in space between sticks.
