Middle-G Series
Compact for built-in use Embedded Amplifier Photo Sensors

Middle-G Series
  • Completely filled with resin to be IP67 compliant
  • Improved water resistance and intensity suitable for conveyor lines
    • The operation mode can be selected by a switch
    • Sensitivity adjustment for fine detection
    • Globally compatible PNP types also conveniently provided with stability output
    • Optional rigid protective cover (mounting bracket) available
Standard・Official Approval
  • CE Mark

Middle-G Series Lineups

Model Power supply Detection method Detecting distance min (mm) Detecting distance (mm) Control output Operation mode Light source Protective structure Connection Download
GT5RSN
仕様を見る 		12-24VDC Through beam 7000.00 NPN Dark on
Light on 		Red LED IP67 Attached cable
GT5RSPN-N
仕様を見る 		12-24VDC Through beam 7000.00 PNP Dark on
Light on 		Red LED IP67 Attached cable
GT5RSN-J
仕様を見る 		12-24VDC Through beam 7000.00 NPN Dark on
Light on 		Red LED IP67 M8 connector
GT5RSPNN-J
仕様を見る 		12-24VDC Through beam 7000.00 PNP Dark on
Light on 		Red LED IP67 M8 connector
GT5RN
仕様を見る 		12-24VDC Through beam 7000.00 NPN Dark on
Light on 		Red LED IP67 Attached cable
GT5RPN-N
仕様を見る 		12-24VDC Through beam 7000.00 PNP Dark on
Light on 		Red LED IP67 Attached cable
GT5RN-J
仕様を見る 		12-24VDC Through beam 7000.00 NPN Dark on
Light on 		Red LED IP67 M8 connector
GT5RPNN-J
仕様を見る 		12-24VDC Through beam 7000.00 PNP Dark on
Light on 		Red LED IP67 M8 connector
GMR2RSN
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 NPN Dark on
Light on 		Red LED IP67 Attached cable
GMR2RSPN-N
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 PNP Dark on
Light on 		Red LED IP67 Attached cable
GMR2RSN-J
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 NPN Dark on
Light on 		Red LED IP67 M8 connector
GMR2RN
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 NPN Dark on
Light on 		Red LED IP67 Attached cable
GMR2RPN-N
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 PNP Dark on
Light on 		Red LED IP67 Attached cable
GMR2RN-J
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 NPN Dark on
Light on 		Red LED IP67 M8 connector
GMR2RPNN-J
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 PNP Dark on
Light on 		Red LED IP67 M8 connector
GSR05RSN
仕様を見る 		12-24VDC Diffuse reflective 500.00 NPN Dark on
Light on 		Red LED IP67 Attached cable
GSR05RSPN-N
仕様を見る 		12-24VDC Diffuse reflective 500.00 PNP Dark on
Light on 		Red LED IP67 Attached cable
GSR05RSN-J
仕様を見る 		12-24VDC Diffuse reflective 500.00 NPN Dark on
Light on 		Red LED IP67 M8 connector
GSR05RSPNN-J
仕様を見る 		12-24VDC Diffuse reflective 500.00 PNP Dark on
Light on 		Red LED IP67 M8 connector
GSR05RN
仕様を見る 		12-24VDC Diffuse reflective 500.00 NPN Dark on
Light on 		Red LED IP67 Attached cable
GSR05RPN-N
仕様を見る 		12-24VDC Diffuse reflective 500.00 PNP Dark on
Light on 		Red LED IP67 Attached cable
GSR05RN-J
仕様を見る 		12-24VDC Diffuse reflective 500.00 NPN Dark on
Light on 		Red LED IP67 M8 connector
GSR05RPNN-J
仕様を見る 		12-24VDC Diffuse reflective 500.00 PNP Dark on
Light on 		Red LED IP67 M8 connector
GMR2RSPNN-J
仕様を見る 		12-24VDC Polarized retroreflective 30.00 1500.00 PNP Dark on
Light on 		Red LED IP67 M8 connector

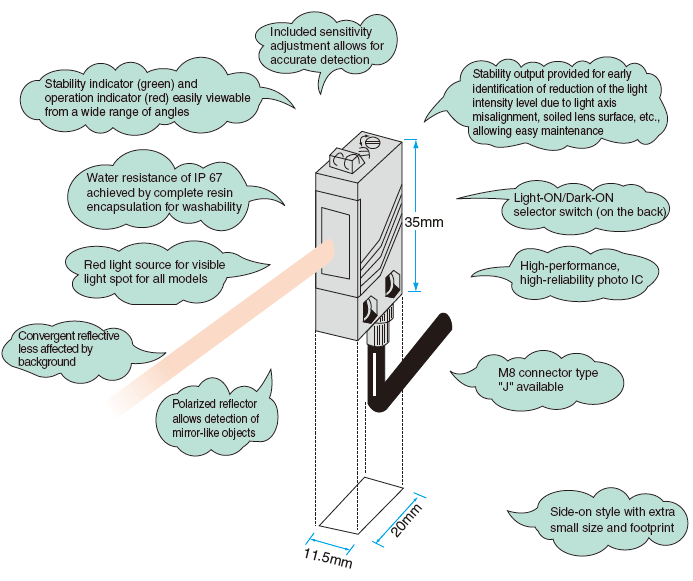

Feature

Ideal for built-in

Ideal for built-in

Dimension

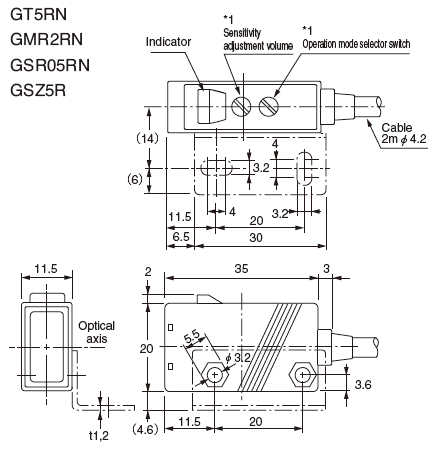

(Head-on) typical example

*1 The operating side depends on the model.
With mounting bracket attached.

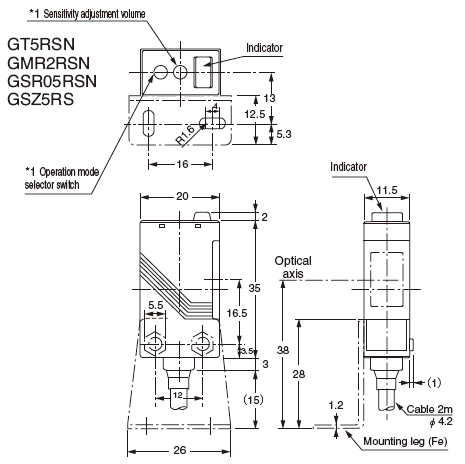

(Side-on) Typical example

*1 The operating side depends on the model.
With mounting bracket attached.

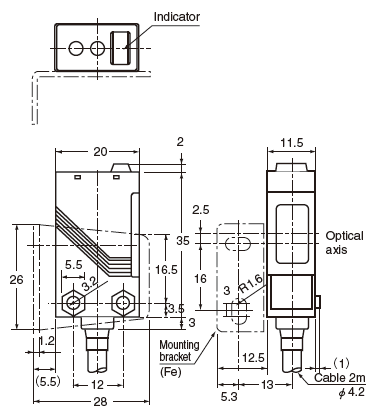

(Mounting bracket in different orientation)

With mounting bracket attached.

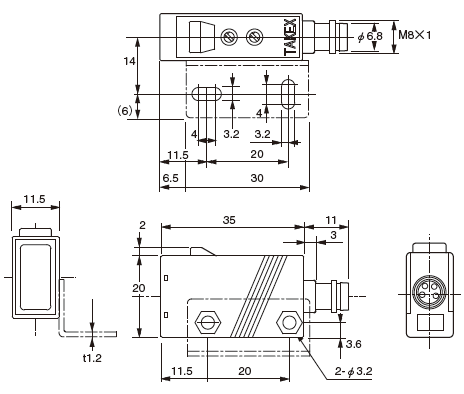

"`-J" (M8 connector type) head-on model`

With mounting bracket attached.

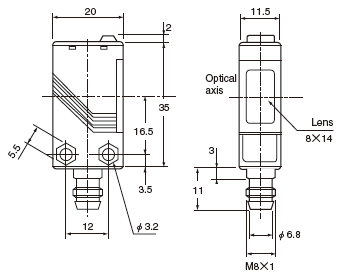

"`-J" (M8 connector type) side-on model`

Circuit

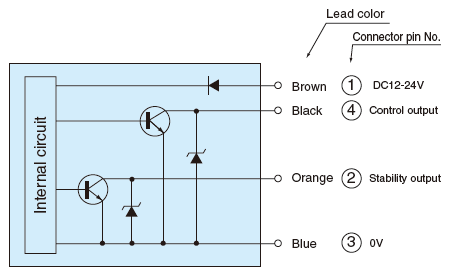

NPN output

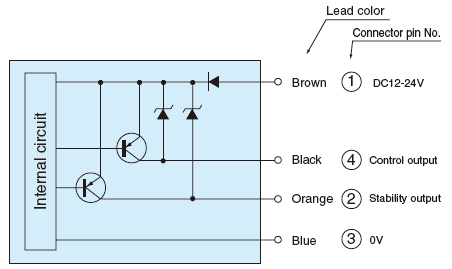

PNP output

  • The transmitter is provided with power supply lines (brown: 12 - 24 VDC; blue: 0 V) only.
  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.

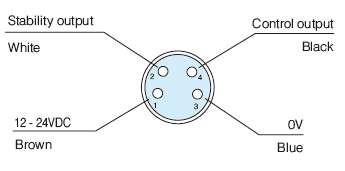

M8 connector type (-J) pin assignment and connection

  • (Receiver/reflective type sensor)
    The colors show lead colors for use in combination with the optional cord with M8 connector.
  • (Transmitter)
    Lines other than Lines 1 (brown) and 3 (blue) are unused.

Option

Reflector

オプション写真

ReflectorK-71

dimLink
Effective reflecting surface Approx. 30X18mm
Protective structure IP67
Mounting sedured with M3 screws (alternatively adhesive may be used)
Materials Mirror : acrylic, Base : heat resistant ABS
Accessories Screw : 2, Nut : 2
Dimensions 43X23mm
Detectjing object Opaque object of dia. 40mm
Detecting distance 0.1 - 2m
Detecting distance 0.01 - 2m
オプション写真

ReflectorK-7

dimLink
Dimensions 60X40mm
Application model Applicable to polarized retroreflective type
Effective reflecting surface Approx. 56X36mm
Protective structure IP67
Mounting sedured with M3 screws
Materials Mirror : acrylic, Base : heat resistant ABS
Dimensions 60X40mm
Detectjing object Opaque object of dia. 75mm
Detecting distance 0.03 to 2.5m
オプション写真

ReflectorS-25

dimLink
Effective reflecting surface φ18.5X25 per sheet
Mounting Pasted, adhesive on back side
Detecting distance 70 - 400mm

Protective cover

オプション写真

Protective coverG-MSB1

dimLink
オプション写真

Protective coverG-MTB1

dimLink
オプション写真

Protective coverG-MTB2

dimLink

Cable with connector

オプション写真

Cable with M8 connectorFBC-4R2S

dimLink
Application model For M8 connector type
Shape Straight with 4 cores cable, 2 m (transmitter/receiver)
Cable length 2m
オプション写真

Cable with M8 connectorFBC-4R2L

dimLink
Description Cord with M8 connector
Application model For M8 connector type
Shape Angled with 4 cores cable, 2 m (transmitter/receiver)
Cable length 2m
