J Series
Quick Change AC/DC Power Supply Photo Sensors

J Series

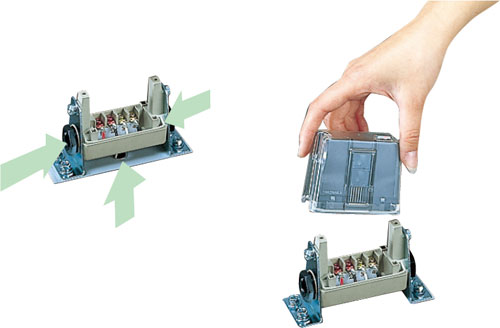

  • Quick replacement feature
  • 3 openings for cables
    • Metal and mirror-like objects are detected
    • Flat body integrating many functions
    • Offers much largerwiring space

J Series Lineups

Model Power supply Detection method Detecting distance min (mm) Detecting distance (mm) Control output Operation mode Light source Protective structure Connection Download
JT10R
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Dark on
Light on 		Red LED IP66
JRM3R
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 3000.00 Relay Dark on
Light on 		Red LED IP66
JR07
仕様を見る 		AC/DC24 to 240V Diffuse reflective 700.00 Relay Dark on
Light on 		Infrared LED IP66
JT10RF
仕様を見る 		AC/DC24 to 240V Through beam 10000.00 Relay Timer
Dark on
Light on 		Red LED IP66
JRM3RF
仕様を見る 		AC/DC24 to 240V Polarized retroreflective 30.00 3000.00 Relay Timer
Dark on
Light on 		Red LED IP66
JR07F
仕様を見る 		AC/DC24 to 240V Diffuse reflective 700.00 Relay Timer
Dark on
Light on 		Infrared LED IP66

Feature

  • Metal and mirror-like objects are detected
  • Flat body integrating many functions
  • Offers much larger wiring space

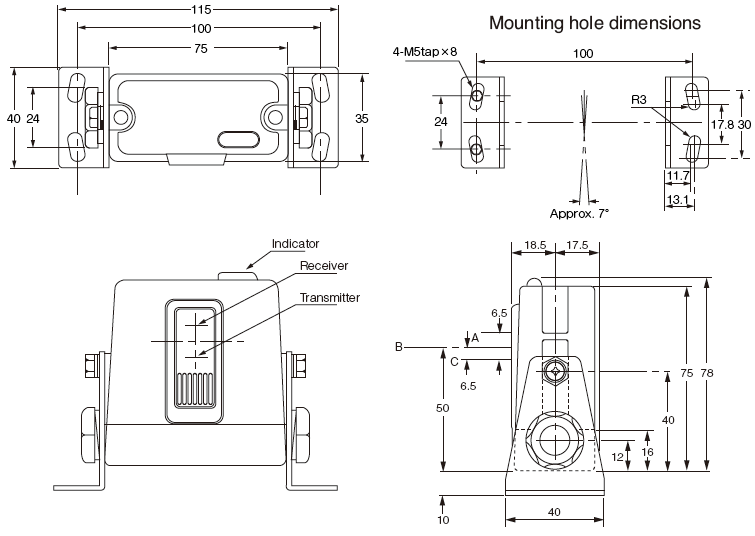

Dimension

Mounting bracket (accessory) attached

  • JIS B 0202 PF1/2 screws used
  • Compatible cable diameter: 9-11 mm
  • When using cable diameters of 6-8 mm, use optional bushings (JV7).

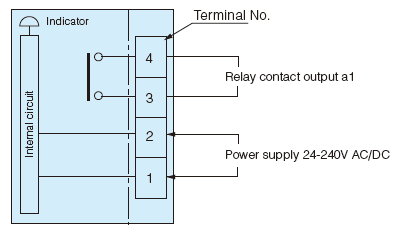

Circuit

Relay output type

Logistics

Divergence control

Signal transmitted to divergence point.

Option

Pinhole sticker

オプション写真

Pinhole stickerJP37
Description Pinhole sticker
Application model JT10R
JT10RF
Detecting distance Detecting distance with stickers attached to both transmitter and receiver
φ3mm : 2.5m
φ5mm : 6m

Bushing rubber

オプション写真

Bushing rubberJV7
Description Bushing rubber
Application model All models
Compatible cable diameter 6-8 mm
