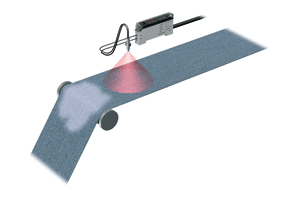

Detection of thread dyeing unevenness

Inconsistent dyeing detected in the dyeing process. High resolution of F70R for arbitrary setting.

Detection of solid wire among stranded wires (detection of cut)

Detecting a cut solid wire with a fine laser beam.

Loop control of string materials

Detecting threads or fibers across two points (upper/lower) to control the tension and the speed.

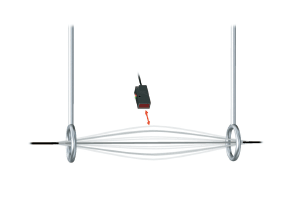

Broken thread detection

Loss of reflection of light caused by fluctuation or presence of detected thread with a wide-view sensor, therefore, assumes broken thread.

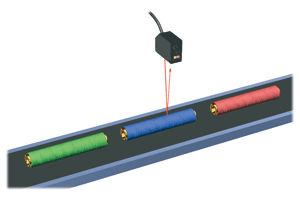

Bobbin detection

Background suppression photo sensor provides reliable detection and is unaffected by variation of bobbin color or shape.

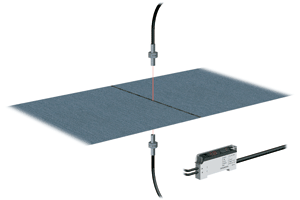

Fabric seam detection

Seam of adjacent cloths detected in dyeing process.
